TRS 24VUC 2CO PB

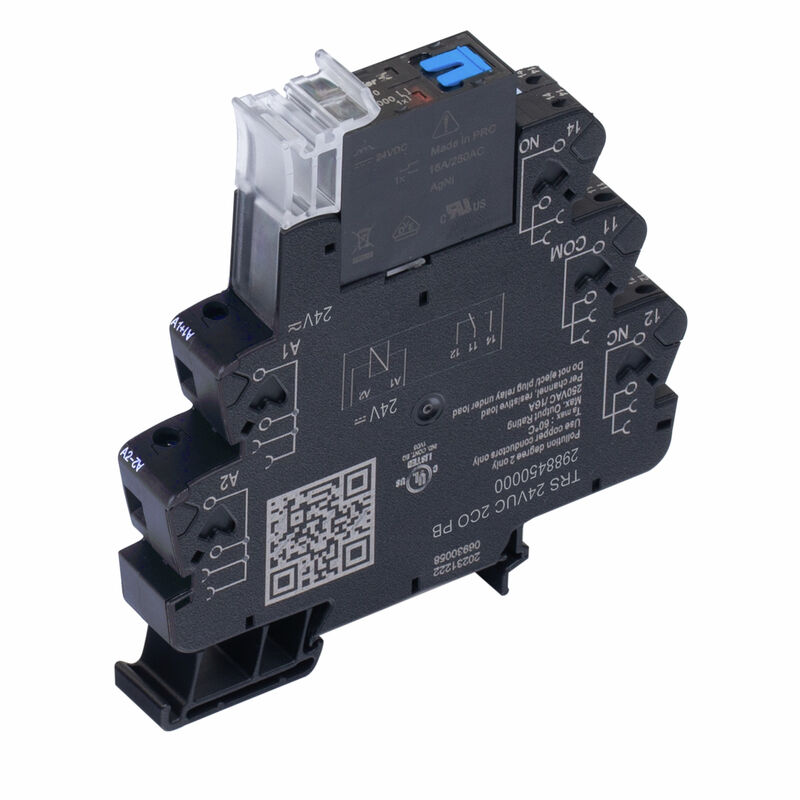

Product image
Similar to illustration
TRS 24VUC 2CO PB

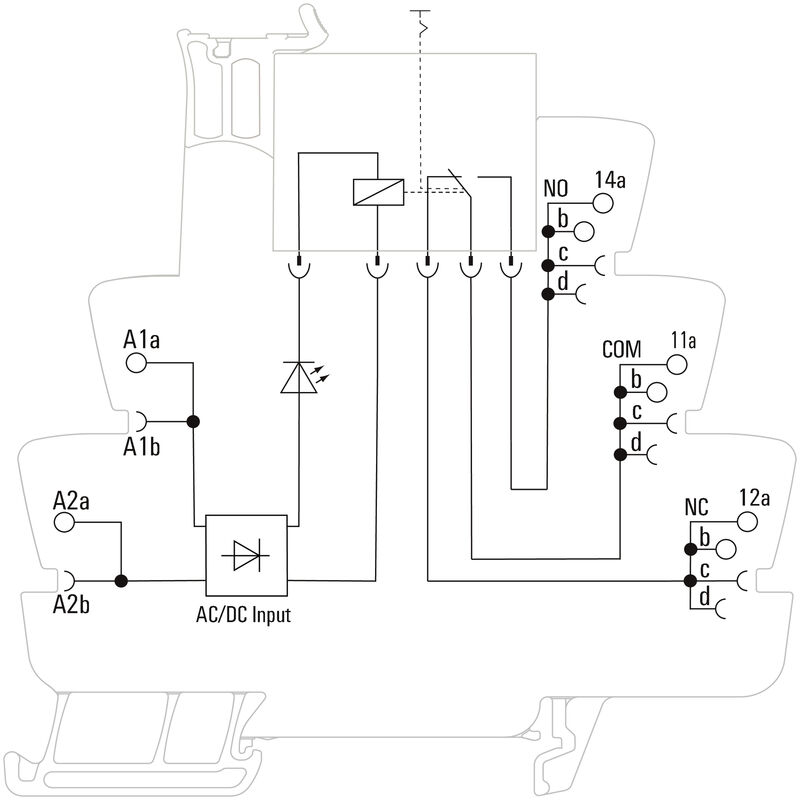

Wiring diagram
TRS 24VUC 2CO PB
Graph
DC load limit curve
Resistive load
TRS 24VUC 2CO PB
Dimensional drawing
TRS 24VUC 2CO PB
Miscellaneous
Type codes

TRS 24VUC 2CO PB

TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V UC ±10 %, Continuous current: 8 A, Screw connection, Test button available: Yes

Product ID 2988450000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 26 Verwante producten 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V UC ±10 %, Continuous current: 8 A, Screw connection, Test button available: Yes
Order No.
2988450000
Type
TRS 24VUC 2CO PB
GTIN (EAN)
4099986859258
Qty.
5 items

Dimensions and weights

Depth
97,5 mm
Depth (inches)
3,839 inch
Height
89,6 mm
Height (inches)
3,528 inch
Width
12,8 mm
Width (inches)
0,504 inch
Net weight
63 g

Temperatures

Storage temperature
-40 °C...70 °C
Ambient temperature
-40 °C…60 °C
Humidity
5...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Type of conductor
rigid copper conductor
flexible copper conductor
Tightening torque, max.
0,4 Nm
Pollution severity level
2

Control side

Rated control voltage
24 V UC ±10 %
Power rating
410 mW
Wskazanie statusu
Green LED
Protective circuit
Free-wheeling diode
Reverse polarity protection
Coil voltage of the replacement relay deviating from the rated control voltage
No
Coil voltage of the replacement relay
24 V DC

Load side

Rated switching voltage
250 V AC
Continuous current
8 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Inrush current
30 A / 4 s
Schaltleistung AC (ohmsch), max.
2000 VA
Schaltleistung DC (ohmsch), max.
192W @ 24V
Switch-on delay
≤ 15 ms
Switch-off delay
≤ 16 ms
Contact type
2 CO contact (AgNi)
Mechanical service life
5 x 106 switching cycles

General data

Operating altitude
≤ 2000 m
above sea level
Mounting rail
TS 35
Test button available
Yes
Version of test button
Lockable test button
Momentary test button
Mechanical switch position indicator
Yes
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0
  • Component:
    Retaining clip
  • UL94 flammability rating:
    V-0

Insulation coordination

Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 5.5 mm
Dielectric strength for control side - load side
2.5 kVeff / 1 Min.
Dielectric strength of open contact
1 kVeff / 1 min
Spänningshållfasthet till montageskena
4 kVeff / 1 Min.
Impulse withstand voltage
6 kV (1.2/50 µs)
Impulse withstand voltage at neighbouring contacts
4 kV (1.2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Certificate no. (cULus)
E141197

Connection data

Wire connection method
Screw connection
Stripping length, rated connection
8 mm
Tightening torque, max.
0,4 Nm
Klemmbereich, Bemessungsanschluss
1,5 mm²
Klemmbereich, min.
0,14 mm²
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Sezione di collegamento cavo, rigido, min.
0,14 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 14
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0,5 mm²
Wire cross-section, finely stranded, two clampable wires, max.
1 mm²
Размер лезвия
size PH0

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
