Egenskaber
| Version | Signal duplicator/isolator, Input : 0(4)-20 mA, Output : 2 x 0(4) - 20 mA, Voltage supply also via CH20M rail bus, Signal distributor, HART® |
| Order No. | 2514630000 |

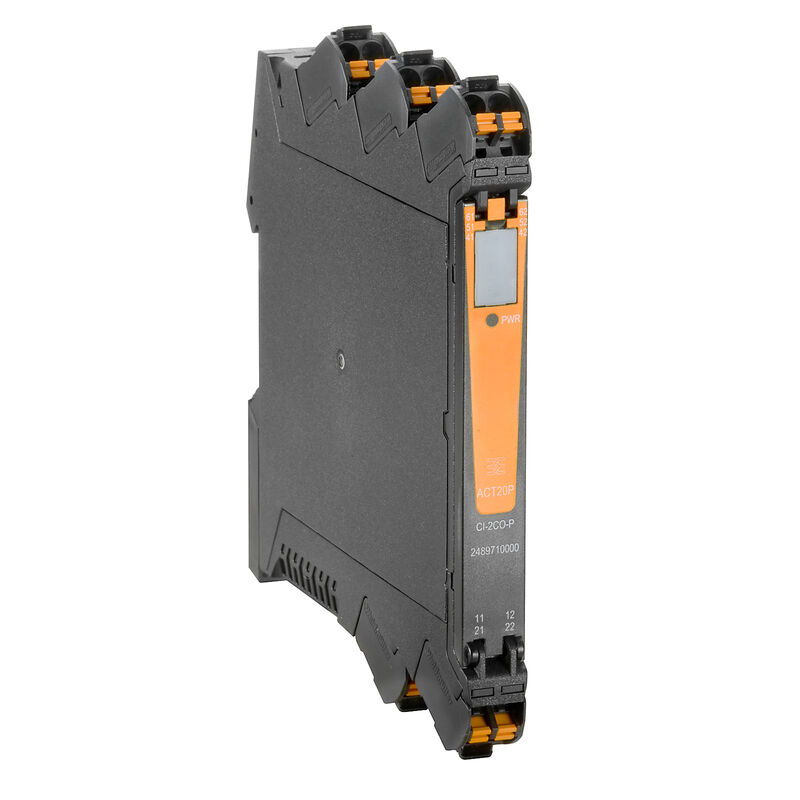

| Type | ACT20P-CI-2CO-P-P |
| GTIN (EAN) | 4050118535204 |
| Qty. | 1 Styk |

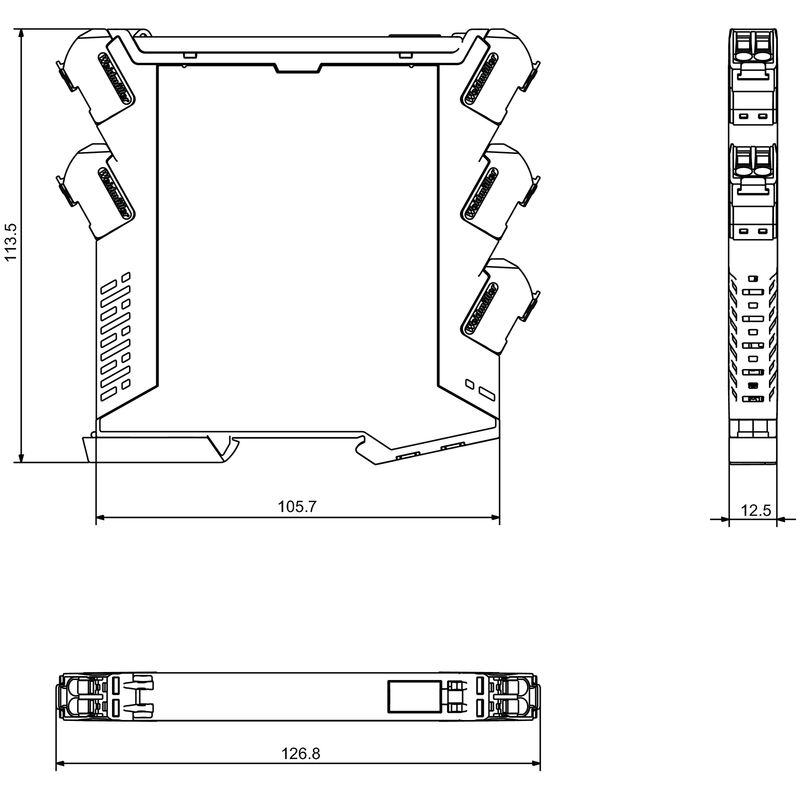

| Depth | 113,7 mm |
| Depth (inches) | 4,476 inch |
| Height | 127,1 mm |
| Height (inches) | 5,004 inch |
| Width | 12,5 mm |
| Width (inches) | 0,492 inch |
| Net weight | 140 g |
| Storage temperature | 85 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity at operating temperature | 0...95 % (no condensation) |
| Humidity | 5...95 %, no condensation |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2f6dd957-421a-46db-a0c2-cf1609156924 |
| Input current |
0...20 mA
4…20mA |
| Input signal | HART signal® bidirectional |
| Number of inputs | 1 |
| Sensor |
2-wire transmitter (without own power supply)
3-wire sensor 4- wire sensor (with own power supply) |
| Sensor supply | > 17 V DC at 20 mA |
| Voltage drop | ca. 3.8 V @ RLoad = 0 Ω; ca. 15 V @ RLoad = 600 Ω; (Iinput = 20 mA) |
| Load impedance current | <300 Ω |
| Number of outputs | 2 |
| Output current |
0…20 mA (if input: 0…20 mA)
4…20 mA (if input: 4…20 mA) HART® digital signal |
| Type |
active
connected control must be passive |
| Max. switching voltage, AC | 0 V |
| Max. switching voltage, DC | 0 V |
| Rated switching current | 0.1 A |
| Accuracy | <0.1 % of end value |
| Configuration | none |
| Current consumption | ≤60 mA (24V power supply, 20mA output) |
| Protection degree | IP20 |
| Rail | TS 35 |
| Step response time | ≤ 0,5 ms |
| Type of signal forwarding according to HART® | unchanged |
| Voltage supply | 20…30 V at terminal or via CH20M rail bus |
| EMC standards |
EN 61326-1
EN 61000-6-2 EN 61000-6-4 |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Insulation voltage | 2 kV inputs / outputs / power supply |
| Insulation voltage input or output/supply | 2 kV inputs / outputs / power supply |
| Test voltage | 0,3 kV |
| Marking | II 3 G Ex ec IIC T5 Gc |
| Type of connection | PUSH IN |
| Tightening torque, min. | 0,4 Nm |
| Tightening torque, max. | 0,6 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0,2 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Product information |

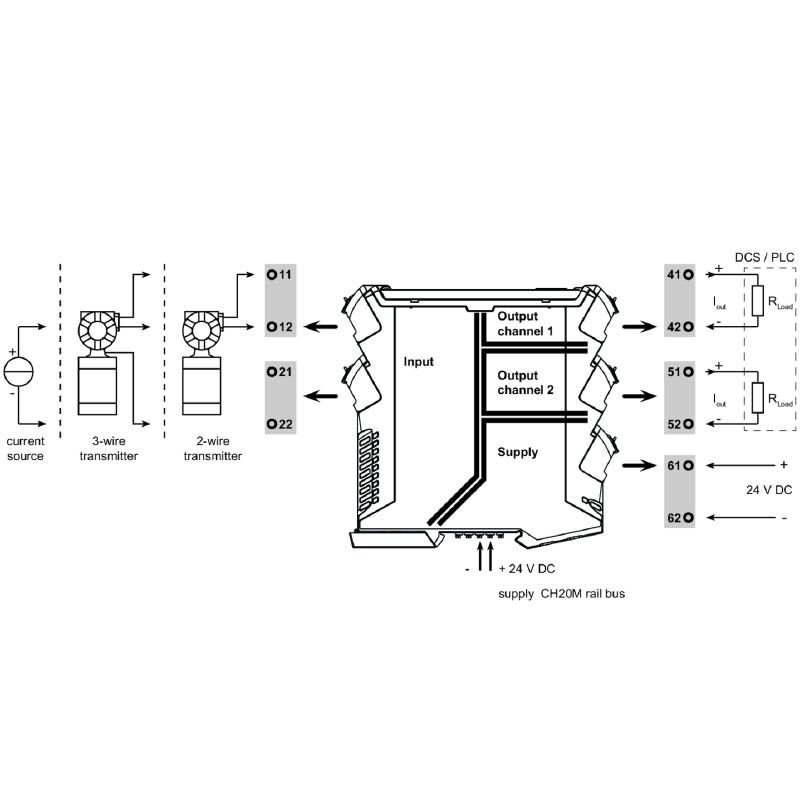

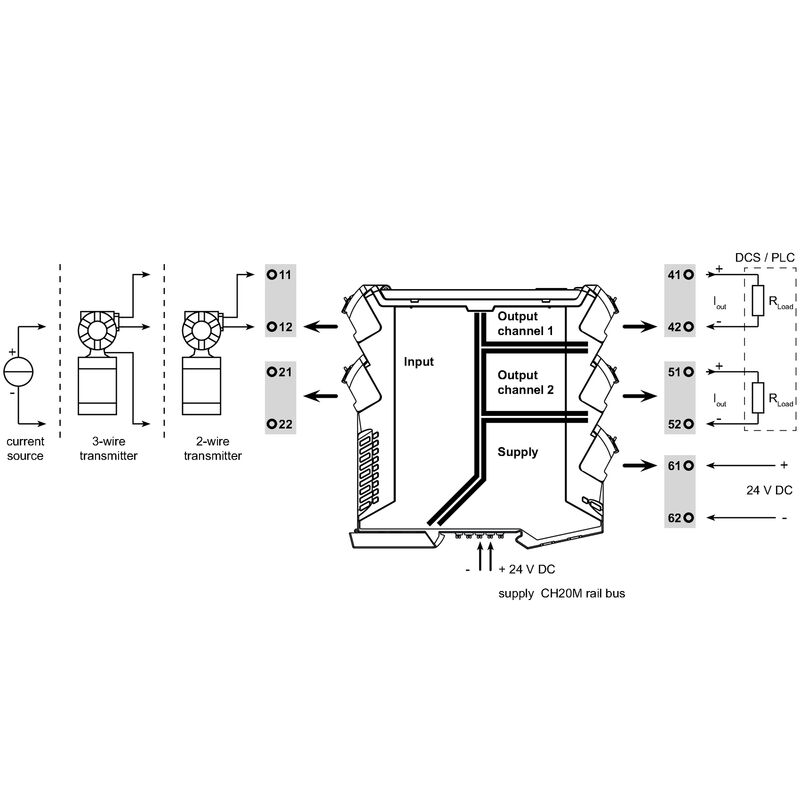

The non-adjustable DC isolating amplifier ACT20P-CI-2CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is converted linearly and doubled to provide two galvanically isolated output current signals. The power supply is galvanically isolated from the input and output (4-way isolation).
Properties
|
| Approval/Certificate/Document of Conformity |
[IECEx Certification](https://mdcop.weidmueller.com/mediadelivery/asset/900_97255)
[ATEX Certification](https://mdcop.weidmueller.com/mediadelivery/asset/900_97260) [UL Certification (hazardous location)](https://mdcop.weidmueller.com/mediadelivery/asset/900_178185) [UL Certification (US-CAN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_178186) [UL certification (hazardous locations) for canada](https://mdcop.weidmueller.com/mediadelivery/asset/900_321818) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_158017) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_245229) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2514630000) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_39969) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 9.0 | EC002653 |
| ECLASS 9.0 | 27-21-01-20 |
| ECLASS 9.1 | 27-21-01-20 |
| ECLASS 10.0 | 27-21-01-20 |
| ECLASS 11.0 | 27-21-01-20 |
| ECLASS 12.0 | 27-21-01-20 |
| ECLASS 13.0 | 27-21-01-20 |
| ECLASS 14.0 | 27-21-01-20 |
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E469563 |
| Certificate no. (cULusEX) | E338066 |
