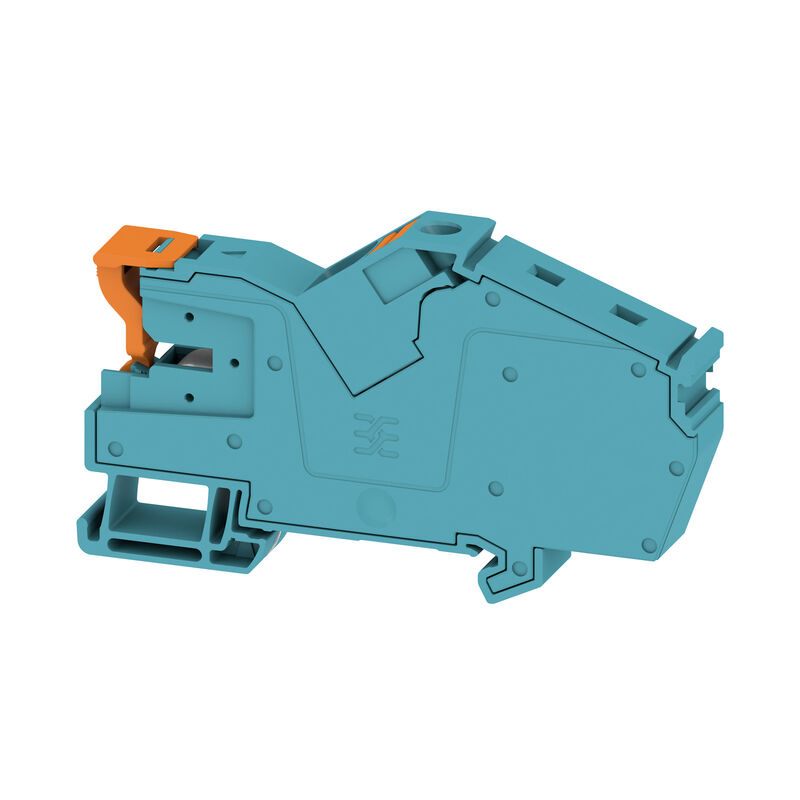

AITB 16 BB NLO BL

Multi level installation terminal block, PUSH IN, blue, 16 mm², 76 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Produkt ID 2669140000

Egenskaber

General ordering data

Version	Multi level installation terminal block, PUSH IN, blue, 16 mm², 76 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
Order No.	2669140000
Type	AITB 16 BB NLO BL
GTIN (EAN)	4064675266372
Qty.	20 Styk

Dimensions and weights

Depth	52,9 mm
Depth (inches)	2,083 inch
Height	91,15 mm
Height (inches)	3,589 inch
Width	12 mm
Width (inches)	0,472 inch
Net weight	39,024 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	blue
Colour of operational elements	orange
UL 94 flammability rating	V-0

System specifications

End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Interlock	screwless
Snap-on	Yes
Type of mounting	Snap-on

Conductors for clamping (rated connection)

Blade size	1.0 x 5.5 mm
Clamping range, max.	25 mm²
Clamping range, min.	0,5 mm²
Connection cross-section, stranded, max.	25 mm²
Connection cross-section, stranded, min.	10 mm²
Connection direction	top
Gauge to IEC 60947-1	A6
Number of connections	2
Stripping length	18 mm
Twin wire-end ferrules, max.	6 mm²
Twin wire-end ferrules, min.	0,75 mm²
Type of connection	PUSH IN
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 18
Wire connection cross section, finely stranded, max.	25 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	16 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

General

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 18

Rating data

Rated cross-section	16 mm²
Rated voltage	1.000 V
Rated DC voltage	1.000 V
Rated current	76 A
Current at maximum wires	76 A
Standards	IEC 60947-7-1
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	2,43 W
Pollution severity	3
Surge voltage category	III

Downloads

Approval/Certificate/Document of Conformity	[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_312180) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_199390)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_245579)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2669140000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2669140000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2669140000&norm=0)
Tender specification	[Ausschreibungstext AITB 16 BB NLO BL](https://mdcop.weidmueller.com/mediadelivery/asset/900_246185)
User Documentation	[AITB 16 + ZQV 10_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_303689) [AITB 16 + ZQV 10_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_303690)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001329
ETIM 7.0	EC001329
ETIM 8.0	EC001329
ETIM 9.0	EC001329
ECLASS 9.0	27-14-11-25
ECLASS 9.1	27-14-11-25
ECLASS 10.0	27-14-11-25
ECLASS 11.0	27-14-11-25
ECLASS 12.0	27-14-11-25
ECLASS 13.0	27-25-01-10
ECLASS 14.0	27-25-01-10

Approvals

Approvals	![CE](/picture/CE.gif) ![DETNORVER](/picture/DETNORVER.gif) ![VDE](/picture/VDE.gif)
ROHS	Conform

Tilbehør

Terminal BlocksAccessoriesCross-connectionsA-Series10 mm²

ZQV 10N/2

Produkt ID:

2497250000

Pakningsenhed:

25 Styk

Cross-connector (terminal), Plugged, orange, 57 A, Number of poles: 2, Pitch in mm (P): 10.00, Insulated: Yes, Width: 17.8 mm

Datablad Downloads

MarkersTerminal markersMultiCardWADWAD 8Blank

WAD 8 MC NE WS 4CRDX12

Produkt ID:

1112940000

Pakningsenhed:

48 Styk

Group markers, Cover, 33.3 x 8 mm, Pitch in mm (P): 8.00 WDU 4, WEW 35/2, ZEW 35/2, white

Datablad Downloads

MarkersTerminal markersMultiCardWADWAD 5Blank

WAD 5 MC NE WS 4CRDX12

Produkt ID:

1112910000

Pakningsenhed:

48 Styk

Group markers, Cover, 33.3 x 5 mm, Pitch in mm (P): 5.00 WDU 2.5, WEW 35/2, ZEW 35/2, white

Datablad Downloads

PCB Terminals and ConnectorsPCB terminals - OMNIMATE SignalAccessoriesAdditional accessories

PS 2.0 MC

Produkt ID:

0310000000

Pakningsenhed:

20 Styk

PCB plug-in connector, Accessories, Test plug, red, Number of poles: 1

Datablad Downloads

MarkersTerminal markersMultiCardWSWS 7.8/9.2Blank

WS 7.8/9.2 PLUS MC NE GR

Produkt ID:

1208970000

Pakningsenhed:

360 Styk

WS, Terminal marker, 7.8 x 9.2 mm, Pitch in mm (P): 9.20 Weidmueller, grey

Datablad Downloads

ToolsScrewdriversUninsulated screwdrivers and setsSlotted screwdriver

SDS 1.0X5.5X150

Produkt ID:

2749380000

Pakningsenhed:

1 Styk

Screwdriver, Blade width (B): 5.5 mm, Blade length: 150 mm, Blade thickness (A): 1 mm

Datablad Downloads

MarkersTerminal markersMultiMarkWSWS 8/10

WS-A 8/10 MM WS

Produkt ID:

2619890000

Pakningsenhed:

350 Styk

WS, Terminal marker, 8 x 10 mm, Weidmueller, white

Datablad Downloads

Terminal BlocksAccessoriesTest adapters and TestsocketsA-Series

ATPG 1.5-10 L

Produkt ID:

1991890000

Pakningsenhed:

50 Styk

Test adapter (terminal), 1.5 mm², 250 V, 0.2 A

Datablad Downloads

Terminal BlocksAccessoriesBusbarsBlank busbarsCopper

SSCH 10X3X1000 CU/SN

Produkt ID:

0348900000

Pakningsenhed:

1 Meter

Busbar (terminal), silver, Height: 1000 mm, Depth: 3 mm, Copper

Datablad Downloads

Terminal BlocksApplication rangeBuilding installation wiringAccessoriesSupport bracketsA-Series

APP ITB 16 BB 2C/NDT BL

Produkt ID:

2668890000

Pakningsenhed:

20 Styk

A-series, End plate

Datablad Downloads

Er tilbehør til

Terminal BlocksApplication rangeBuilding installation wiringPUSH IN technologyA-SeriesInstallation terminal blocks1-tier6 mm²

AITB 6 BB 2C

Produkt ID:

2668700000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 6 BB NDT BL

Produkt ID:

2668730000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, blue, 6 mm², 41 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 6 BB 2C PE

Produkt ID:

2668720000

Pakningsenhed:

50 Styk

PE terminal, PUSH IN, Green/yellow, 6 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 6 BB 2C BL

Produkt ID:

2668710000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, blue, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksApplication rangeBuilding installation wiringPUSH IN technologyA-SeriesInstallation terminal blocks1-tier2.5 mm²

AITB 2.5 BB 2C PE

Produkt ID:

2668680000

Pakningsenhed:

50 Styk

PE terminal, PUSH IN, Green/yellow, 2.5 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB 2C BL

Produkt ID:

2668670000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, blue, 2.5 mm², 24 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB NDT BL

Produkt ID:

2668690000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, blue, 2.5 mm², 24 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB 2C

Produkt ID:

2668660000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksApplication rangeBuilding installation wiringPUSH IN technologyA-SeriesInstallation terminal blocks1-tier16 mm²

AITB 16 BB NDT BL

Produkt ID:

2668770000

Pakningsenhed:

20 Styk

Multi level installation terminal block, PUSH IN, blue, 16 mm², 76 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 16 BB 2C PE

Produkt ID:

2668760000

Pakningsenhed:

20 Styk

PE terminal, PUSH IN, Green/yellow, 16 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 16 BB 2C

Produkt ID:

2668740000

Pakningsenhed:

20 Styk

Multi level installation terminal block, PUSH IN, dark beige, 16 mm², 76 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 16 BB 2C BL

Produkt ID:

2668750000

Pakningsenhed:

20 Styk

Multi level installation terminal block, PUSH IN, blue, 16 mm², 76 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksTerminal blocks for the direct letteringApplication rangeBuilding installation wiringPUSH IN technologyInstallation terminal blocksmulti-tierWith busbar system2.5 mm²

AITB 2.5 BB NDT-L-PE DL

Produkt ID:

2782610000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 4, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB L-L-PE DL

Produkt ID:

2782580000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB N-L-PE DL

Produkt ID:

2782600000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB L-L DL

Produkt ID:

2782570000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksApplication rangeBuilding installation wiringPUSH IN technologyA-SeriesInstallation terminal blocksmulti-tierWith busbar system2.5 mm²

AITB 2.5 BB NDT-L-PE

Produkt ID:

2668950000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 4, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB L-L-PE

Produkt ID:

2668930000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB L-L

Produkt ID:

2668900000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB N-L

Produkt ID:

2668910000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB L

Produkt ID:

2668920000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 BB N-L-PE

Produkt ID:

2668940000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksApplication rangeBuilding installation wiringPUSH IN technologyA-SeriesInstallation terminal blocksmulti-tierWithout busbar system2.5 mm²

AITB 2.5 LDT-L-PE

Produkt ID:

2669040000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 L-L-PE

Produkt ID:

2669010000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 LDT-L-PE W/O DTLV

Produkt ID:

2669050000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 L-L

Produkt ID:

2669000000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 LDT-L

Produkt ID:

2668980000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 N-L-PE

Produkt ID:

2669020000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 NDT-L-PE

Produkt ID:

2669030000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 2.5 LDT-L W/O DTLV

Produkt ID:

2668990000

Pakningsenhed:

50 Styk

Multi level installation terminal block, PUSH IN, dark beige, 2.5 mm², 24 A, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksApplication rangeBuilding installation wiringPUSH IN technologyA-SeriesInstallation terminal blocksmulti-tierWith busbar system4 mm²

AITB 4 BB L-L-PE

Produkt ID:

2669080000

Pakningsenhed:

25 Styk

Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 4 BB L-L

Produkt ID:

2669070000

Pakningsenhed:

25 Styk

Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

AITB 4 BB NDT-L-PE

Produkt ID:

2669100000

Pakningsenhed:

25 Styk

Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

AITB 4 BB N-L-PE

Produkt ID:

2669090000

Pakningsenhed:

25 Styk

Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

Enkeltdel til

Terminal BlocksApplication rangeBuilding installation wiringAssortment case / L-BOXX

L-BOXX 102 KC AITB INSTA 1

Produkt ID:

2938390000

Pakningsenhed:

1 Styk

Toolbox (with contents), black, Width: 365 mm, Height: 135 mm, Depth: 445 mm

Datablad Downloads

Populære kategorier

Interessante links

Løsninger

Connectivity

Electronics

Automation & Software

Workplace & Accessories

Assembly

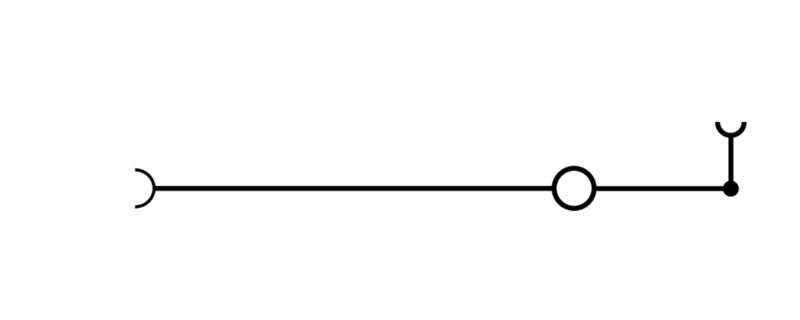

AITB 16 BB NLO BL

Egenskaber

Tilbehør

Er tilbehør til

Enkeltdel til
