Egenskaber

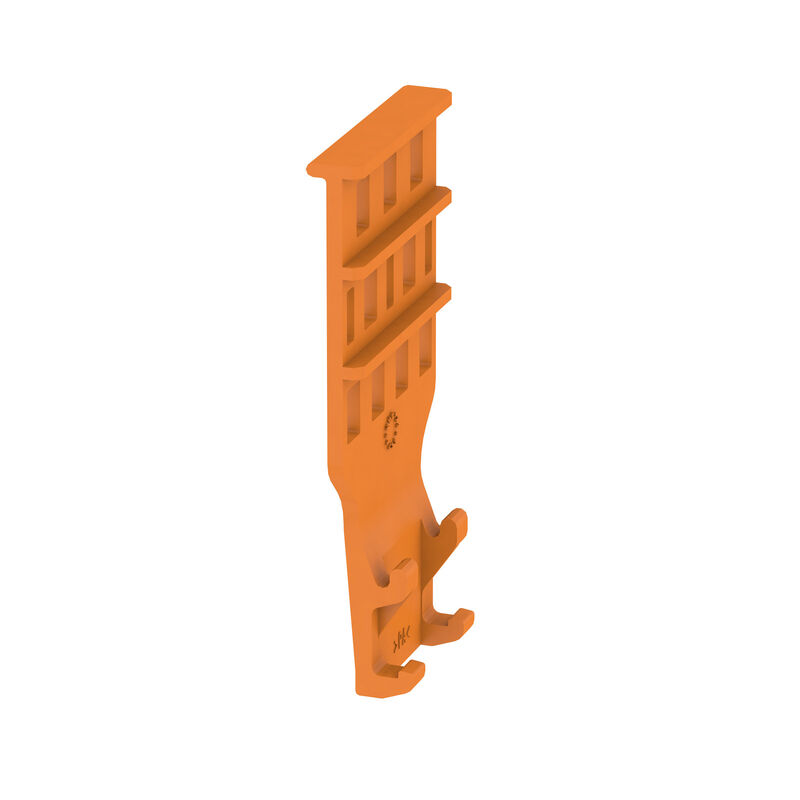

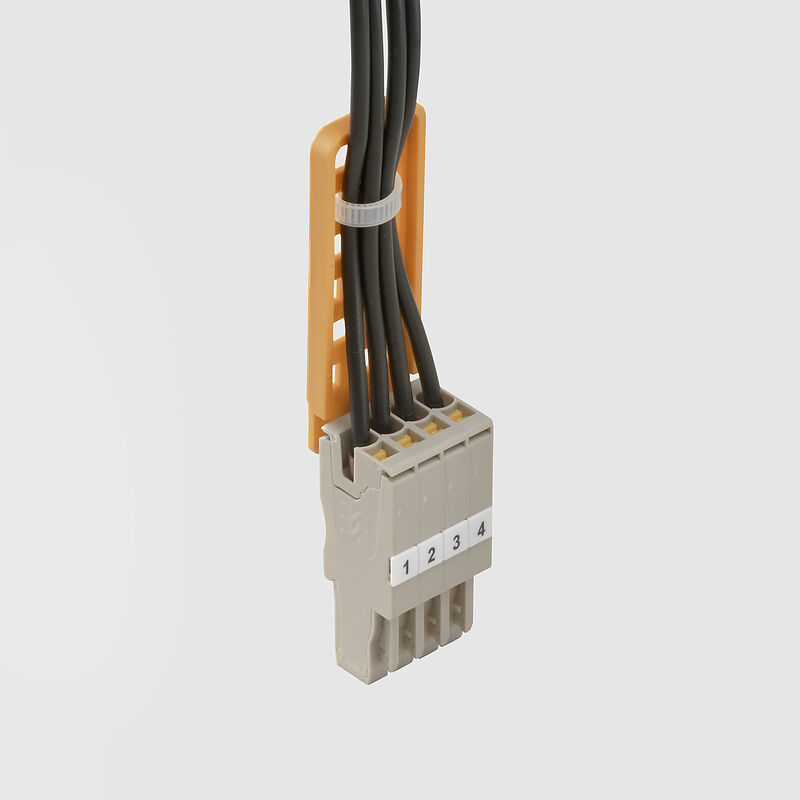

| Version | Strain relief (terminal), Wemid, orange |
| Order No. | 2482750000 |
| Type | APGSR 1.5 - 8P |
| GTIN (EAN) | 4050118494211 |
| Qty. | 25 Styk |
| Depth | 40,45 mm |
| Depth (inches) | 1,593 inch |
| Height | 5,95 mm |
| Height (inches) | 0,234 inch |
| Width | 19,2 mm |
| Width (inches) | 0,756 inch |
| Net weight | 1,1 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66226) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2482750000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2482750000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
