Egenskaber

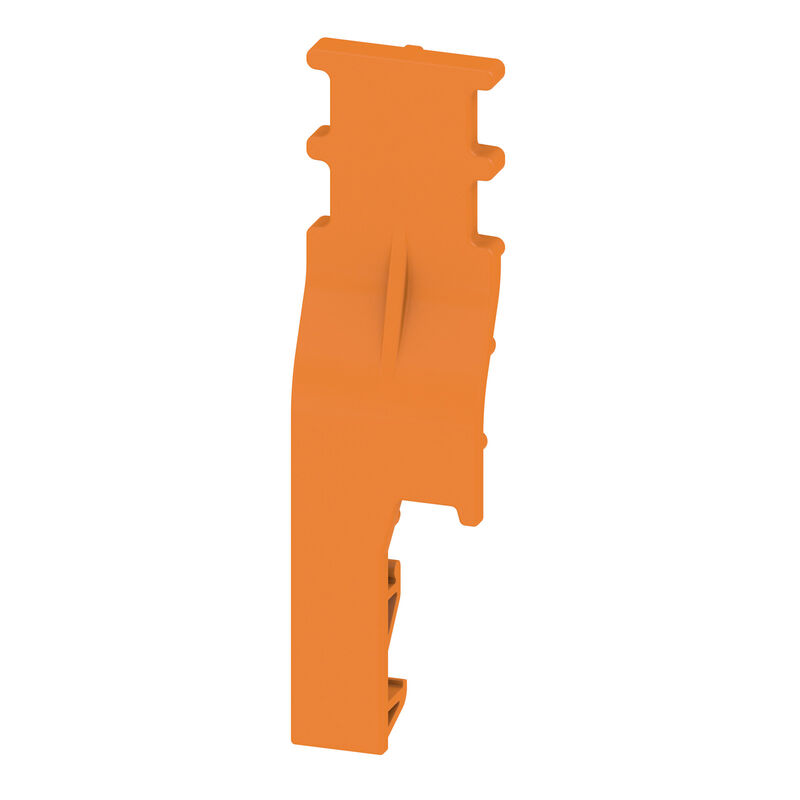

| Version | Strain relief (terminal), Wemid, orange |
| Order No. | 2762390000 |
| Type | APGSR 6 |
| GTIN (EAN) | 4064675021391 |
| Qty. | 20 Styk |
| Depth | 58,1 mm |
| Depth (inches) | 2,287 inch |
| Height | 7,62 mm |
| Height (inches) | 0,3 inch |
| Width | 15,9 mm |
| Width (inches) | 0,626 inch |
| Net weight | 2,3 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_239574) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2762390000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2762340000Pakningsenhed:20 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 3, dark beige
-
Produkt ID:2762330000Pakningsenhed:20 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 2, dark beige
-
Produkt ID:2762320000Pakningsenhed:50 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 1, dark beige
-
Produkt ID:2762280000Pakningsenhed:50 Styk
Test-disconnect terminal, 6 mm², 500 V, 30 A, dark beige
-
Produkt ID:2762290000Pakningsenhed:50 Styk
Test-disconnect terminal, 6 mm², 500 V, 30 A, dark beige
-
Produkt ID:2829070000Pakningsenhed:10 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 10, beige
-
Produkt ID:2882720000Pakningsenhed:20 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 7, beige
-
Produkt ID:2882690000Pakningsenhed:25 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 3, beige
-
Produkt ID:2882730000Pakningsenhed:20 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 8, beige
-
Produkt ID:2829060000Pakningsenhed:25 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 4, beige
-
Produkt ID:2882700000Pakningsenhed:25 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 5, beige
-
Produkt ID:2882740000Pakningsenhed:10 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 9, beige
-
Produkt ID:2882710000Pakningsenhed:25 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 6, beige
-
Produkt ID:2882750000Pakningsenhed:25 Styk
Plug, 6 mm², 500 V, 30 A, Number of poles: 2, beige
