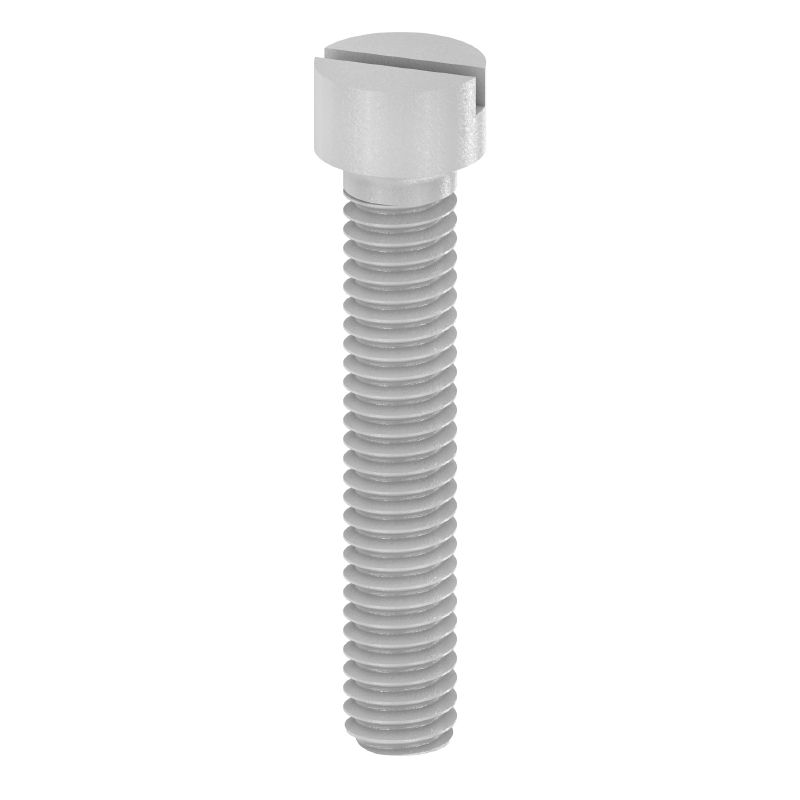

BFSC M2.5X14 SAKD2.5N — Product image

Similar to illustration

Download datablad Anvendte produkter

BFSC M2.5X14 SAKD2.5N

Mounting screw (Terminal), 2.50 mm, Depth: 3.8 mm, Width: 4.5 mm, Height: 14 mm

Produkt ID 0266800000

Egenskaber

General ordering data

Version	Mounting screw (Terminal), 2.50 mm, Depth: 3.8 mm, Width: 4.5 mm, Height: 14 mm
Order No.	0266800000
Type	BFSC M2.5X14 SAKD2.5N
GTIN (EAN)	4008190084899
Qty.	100 Styk

Dimensions and weights

Depth	3,8 mm
Depth (inches)	0,15 inch
Height	14 mm
Height (inches)	0,551 inch
Width	4,5 mm
Width (inches)	0,177 inch
Diameter	3,8 mm
Net weight	0,5 g

Temperatures

Storage temperature

-25 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Colour

beige

System specifications

Version

for cross-connection link

Additional technical data

Explosion-tested version	No
Installation advice	Direct mounting
Type of fixing	when screwed in

Dimensions

Diameter	3,8 mm
Metric size of the thread, external	2,5 mm
Pitch in mm (P)	5,1 mm

General

Installation advice	Direct mounting
Number of poles	1

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74431)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.0266800000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0266800000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002848
ETIM 7.0	EC002848
ETIM 8.0	EC002848
ETIM 9.0	EC002848
ECLASS 9.0	27-14-11-92
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-14-11-92
ECLASS 11.0	27-14-11-92
ECLASS 12.0	27-14-11-92
ECLASS 13.0	27-25-03-90
ECLASS 14.0	27-25-03-90

Approvals

ROHS

Conform

Er tilbehør til

Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesTS 15Feed-through terminal blocks1-tier4 mm²

AKZ 4 KRG

Produkt ID:

0294320000

Pakningsenhed:

100 Styk

Feed-through terminal block, Screw connection, medium yellow, 4 mm², 32 A, 400 V, Number of connections: 2, Number of levels: 1, TS 15, V-0, 5VA, KrG, 130 °C

Datablad Downloads

Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesTS 32Modular terminal blocks with electronic components2-tier4 mm²

DK 4/32 1D CSA A2

Produkt ID:

0467960000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4/32 1D CSA GET.SCH.

Produkt ID:

0544660000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4/32 GL 100K 115VAC

Produkt ID:

0569560000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 115 V, 115 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4/32 2D CSA A2

Produkt ID:

0523760000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4/32 2D CSA GET.SCH.

Produkt ID:

0642760000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4/32 1D CSA A1

Produkt ID:

0484060000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4/32 LD ROT 24VDC

Produkt ID:

0210160000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesTS 32Feed-through terminal blocks2-tier4 mm²

DK 4QV/32

Produkt ID:

0590260000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4Q/32 BL

Produkt ID:

0590080000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4 BL

Produkt ID:

0355480000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, blue, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4Q/32

Produkt ID:

0590060000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 400 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

DK 4

Produkt ID:

0355460000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66

Datablad Downloads

Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesDirect MountingFeed-through-Terminals4 mm²

AKB 4

Produkt ID:

0321560000

Pakningsenhed:

100 Styk

Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 400 V, Number of connections: 2, Number of levels: 1, Mounting plate, V-2, PA 66, 100 °C

Datablad Downloads

Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesTS 35Feed-through terminal blocks2-tier4 mm²

DK 4/35/800V

Produkt ID:

1572700000

Pakningsenhed:

50 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 800 V, 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesTS 35Modular terminal blocks with electronic components2-tier4 mm²

DK 4/35 LD GR 24VDC

Produkt ID:

0210060000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 1D A1 BL

Produkt ID:

0538980000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, blue, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 LD ROT 24VDC

Produkt ID:

0210260000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 2D GET.SCH. A2

Produkt ID:

0396860000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 1D A2

Produkt ID:

0538860000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 LD 24VDC CSA A1

Produkt ID:

0539060000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 2D GET.SCH. A1

Produkt ID:

0396660000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 LD GR 24VDC

Produkt ID:

0210460000

Pakningsenhed:

25 Styk

Multi-tier modular terminal, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 1D 1K5 GET.SCH

Produkt ID:

0396960000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 24 V, 24 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DKT 4/35 PT100

Produkt ID:

8014720000

Pakningsenhed:

10 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 2D GET.SCH. A1

Produkt ID:

0396760000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 1D A1

Produkt ID:

0538960000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads

DK 4/35 1D GET.SCH.

Produkt ID:

0396360000

Pakningsenhed:

25 Styk

Component terminal block, Screw connection, beige / yellow, 4 mm², 380 V, 380 V, Number of connections: 4, Number of levels: 2, TS 35, V-2, PA 66

Datablad Downloads
