Egenskaber

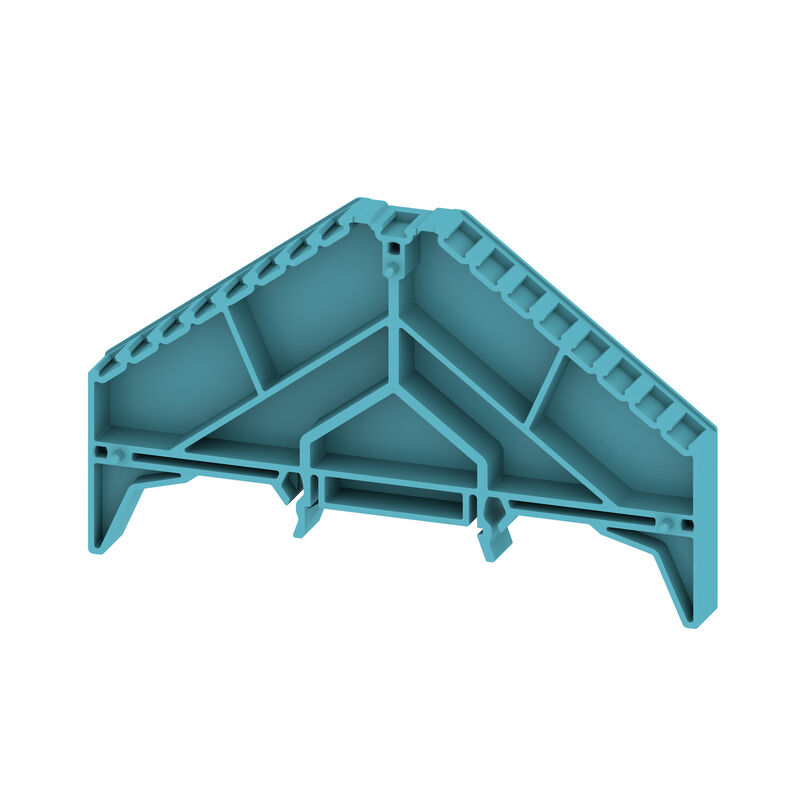

| Version | P-series, Marker holder, blue, Number of levels: 8, TS 35 x 15 |
| Order No. | 1267950000 |
| Type | BZT PRV8 BL 35X15 |
| GTIN (EAN) | 4032248113200 |
| Qty. | 20 Styk |
| Depth | 73,1 mm |
| Depth (inches) | 2,878 inch |
| Height | 120 mm |
| Height (inches) | 4,724 inch |
| Width | 10,2 mm |
| Width (inches) | 0,402 inch |
| Net weight | 22,43 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polycarbonate |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version | For the mounting rails |
| Number of levels | 8 |
| Rail | TS 35 x 15 |
| Rail | TS 35 x 15 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60918) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1267950000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1267950000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-14-11-92 |
| ECLASS 14.0 | 27-14-11-92 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1267870000Pakningsenhed:20 Styk
P-series, Potential distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: blue
-
Produkt ID:1301620000Pakningsenhed:20 Styk
P-series, Potential distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: orange
-
Produkt ID:1173850000Pakningsenhed:20 Styk
P-series, Potential distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: grey
-
Produkt ID:1267830000Pakningsenhed:20 Styk
P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: blue, Colour of operational elements: red-white, TS 35 x 15
-
Produkt ID:1173900000Pakningsenhed:20 Styk
P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: blue, Colour of operational elements: white-red, TS 35 x 15
-
Produkt ID:1173780000Pakningsenhed:20 Styk
P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: black, Colour of operational elements: white-red, TS 35 x 15
-
Produkt ID:1173740000Pakningsenhed:20 Styk
P-series, Patch distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: black, Colour of operational elements: red-white, TS 35 x 15
