Egenskaber

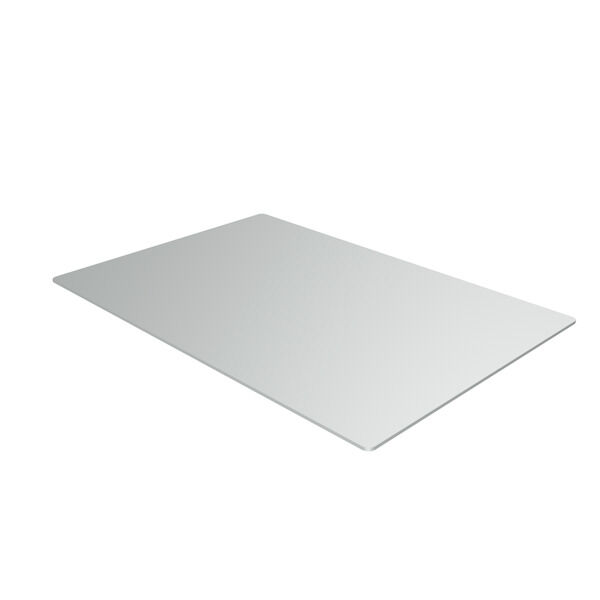

| Version | MetalliCard, Device markers, 70 x 48 mm, silver |
| Order No. | 1474370000 |
| Type | CC-M 70/48 AL SDR |
| GTIN (EAN) | 4050118290509 |
| Qty. | 1 Styk |
| Depth | 0,5 mm |
| Depth (inches) | 0,02 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 48 mm |
| Width (inches) | 1,89 inch |
| Net weight | 5,8 g |
| Operating temperature range | -55...130 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | silver |
| Material |
Chrome coated aluminium (AL)
Anodized aluminium |
| Number of markers per combination | 1 MetalliCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -55...130 °C |
| Operating temperature range, max. | 130 °C |
| Operating temperature range, min. | -55 °C |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Size of labelling field | 68 x 46 mm |
| Width | 48 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_290592) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1474370000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1474370000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
