Egenskaber

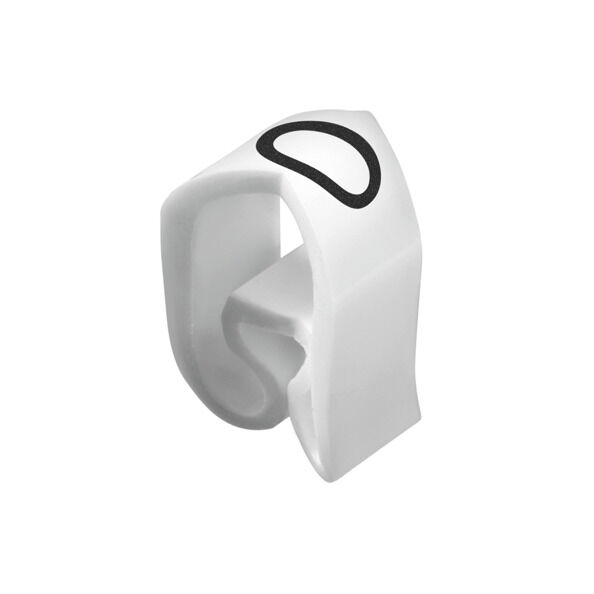

| Version | CableLine, Conductor and cable markers, 8 - 16 mm, 39 x 11 mm, To customer specification |
| Order No. | 1912820000 |
| Type | CLI C 3-39 SDR SG |
| GTIN (EAN) | 4032248542666 |
| Qty. | 100 Styk |
| Depth | 17 mm |
| Depth (inches) | 0,669 inch |
| Height | 39 mm |
| Height (inches) | 1,535 inch |
| Width | 11 mm |
| Width (inches) | 0,433 inch |
| Net weight | 4,875 g |
| Operating temperature range | 80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | To customer specification |
| Colour of printing | black |
| Halogen | Yes |
| Material | PVC, soft, without Cadmium |
| Operating temperature range | 80 °C |
| Operating temperature range, max. | 80 °C |
| Orientation of print | horizontal |
| Printed characters | To customer specification |
| Printing | Custom printing |
| Printing method | Ink jet technology |
| Type of printing | To customer specification |
| UL 94 flammability rating | V-0 |
| Version | Loop |
| Width | 11 mm |
| Conductor cross-section, max. | 70 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 8 - 16 mm |
| Conductor O.D., max. | 16 mm |
| Conductor O.D., min. | 8 mm |
| Cross-section for connected wire | 16 - 70 mm² |
| Halogen | Yes |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1912820000) |
| Product Change Notification |
[PCN CableLine_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687)
[PCN CableLine_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
