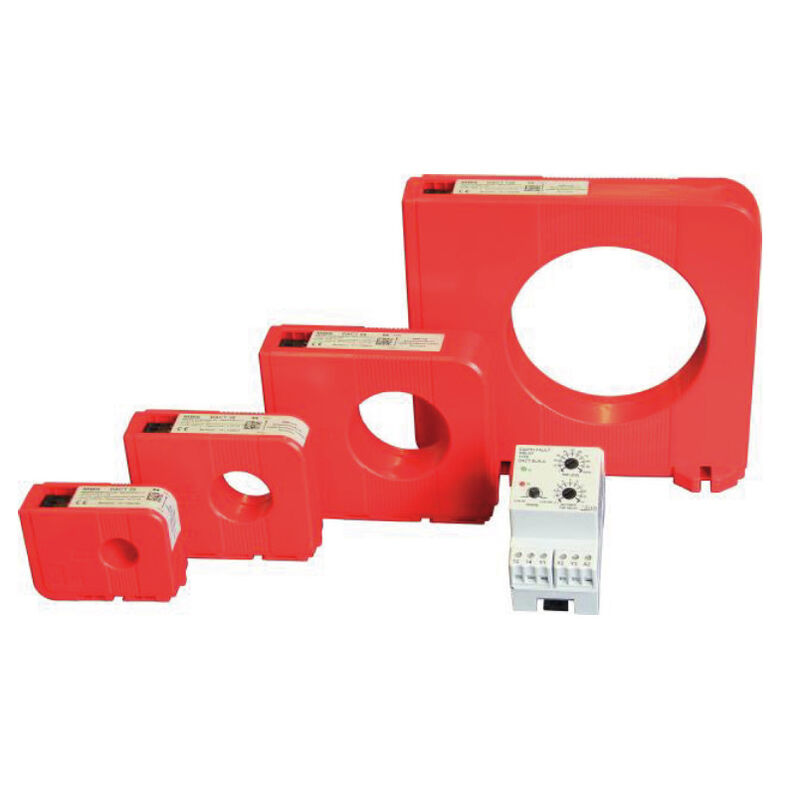

Similar to illustration
CMA-RCM-DACT-20

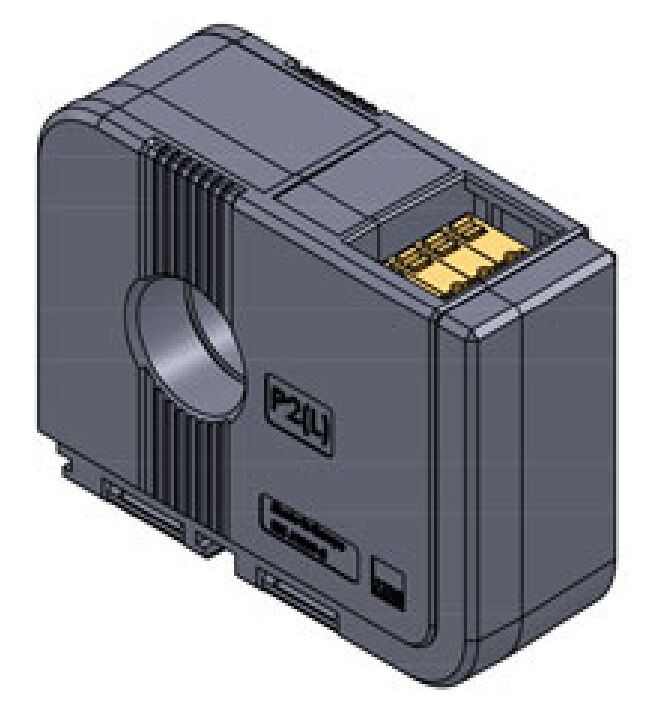

Dimensional drawing
CMA-RCM-DACT-20

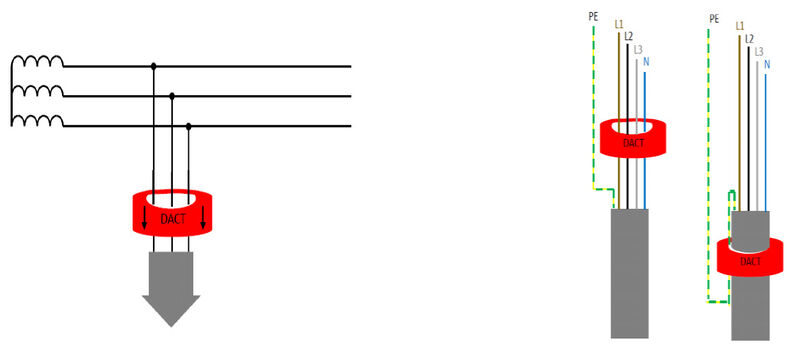

CMA-RCM-DACT-20

Residual current transformer, Primary current: 25 A, Round conductor: 20.00 mm, closed current transformer

Produkt ID 2603420000
Download datablad Produktdownloads
Er tilbehør til 4 Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Measuring current input Dimensions of live conductors Electrical attributes Общие данные Technical properties Input Insulation coordination Classifications

Approvals

ROHS
Conform

General ordering data

Version
Residual current transformer, Primary current: 25 A, Round conductor: 20.00 mm, closed current transformer
Order No.
2603420000
Type
CMA-RCM-DACT-20
GTIN (EAN)
4050118665420
Qty.
1 Styk

Dimensions and weights

Depth
30 mm
Depth (inches)
1,181 inch
Height
63 mm
Height (inches)
2,48 inch
Width
82 mm
Width (inches)
3,228 inch
Net weight
164,56 g

Temperatures

Storage temperature
-25 °C...70 °C
Operating temperature
-10 °C...70 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Measuring current input

Residual current measuring
Yes

Dimensions of live conductors

Typ vodiče
Insulated conductor only
Round conductor
20 mm
Installation location
Indoor use

Electrical attributes

Frequency band
30 Hz…3 kHz
Genauigkeitsklasse
1
Load
0 VA
Primary current
25 A
Sekundärstrom
0...0.04 A
Transmission ratio
1:600

Общие данные

Manufacturer
MBS AG

Technical properties

Přesnost měření
Class 1 (IEC 6206-21)
Spulenwiderstand
8 Ω
Stupeň krytí
IP40

Input

Frequency band
30 Hz…3 kHz
Input measurement range
0.02…2 A / 0.25…25 A 단자대 배정에 따라 다름

Insulation coordination

Galvanické oddělení
sí
Impulse withstand voltage
8 kV
Jmenovité napětí
800 V
Standardně
EN 60044⁄1
Tolerance class
1
Závažnost znečištění
3

Classifications

ETIM 8.0
EC002048
ETIM 9.0
EC002048
ETIM 10.0
EC002048
ECLASS 14.0
27-21-09-02
ECLASS 15.0
27-21-09-02
