Egenskaber
| Version | Automatic stripper and crimper |
| Order No. | 9027310000 |

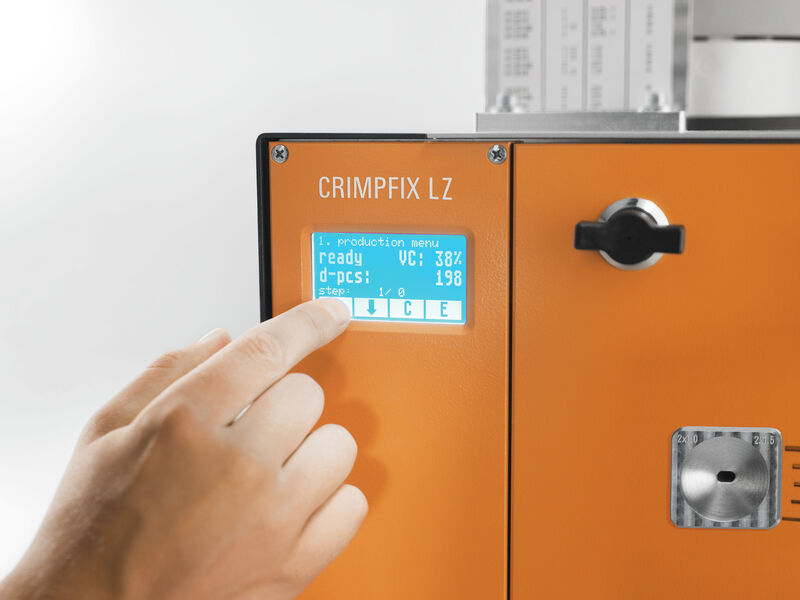

| Type | CRIMPFIX LZ |
| GTIN (EAN) | 4032248285440 |
| Qty. | 1 Styk |
| Depth | 330 mm |
| Depth (inches) | 12,992 inch |
| Height | 460 mm |
| Height (inches) | 18,11 inch |
| Width | 390 mm |
| Width (inches) | 15,354 inch |
| Net weight | 36.000 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d2df479e-2b79-4e98-adc7-b03577df98ae |
| Compressed-air connection | 5 - 5.5 bar |

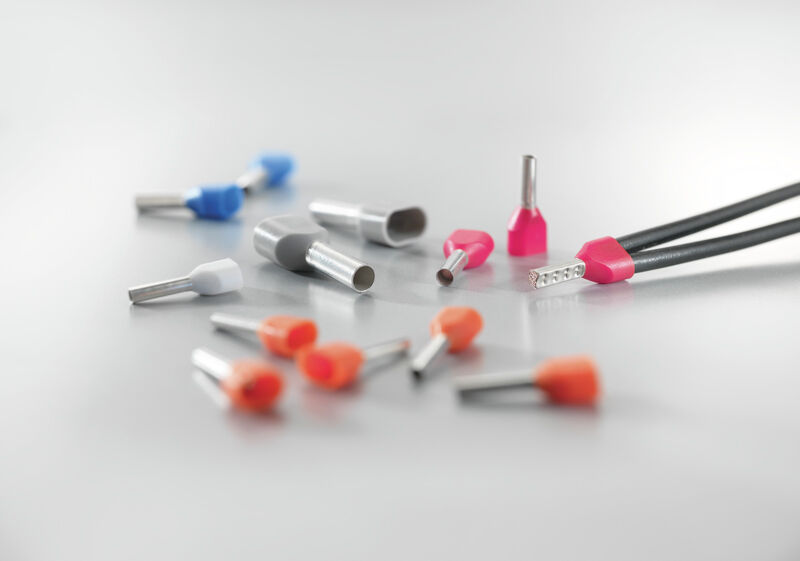

| Consumables | Twin wire-end ferrules |
| Crimping length | 8 mm |
| Drive | Electropneumatic |
| Electrical connection | 100-240 V / 50/60 Hz / 110 VA |
| Length of wire-end ferrule | 14 mm |
| Pulse time | approx. 1 s |
| Stripping range | 2 x 0.5 - 2 x 1.5 mm² (~AWG 2x20 - 2x16) |
| Wire end ferrules cross-section, max. | 1,5 mm² |
| Wire end ferrules cross-section, min. | 0,5 mm² |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_72245) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002778 |
| ETIM 7.0 | EC002778 |
| ETIM 8.0 | EC002778 |
| ETIM 9.0 | EC002778 |
| ECLASS 9.0 | 17-13-01-01 |
| ECLASS 9.1 | 17-13-01-01 |
| ECLASS 10.0 | 17-13-01-01 |
| ECLASS 11.0 | 17-13-01-01 |
| ECLASS 12.0 | 17-13-01-01 |
| ECLASS 13.0 | 17-13-01-01 |
| ECLASS 14.0 | 17-13-01-01 |
| Approvals |  |
| ROHS | Conform |
