Egenskaber
| Version | Automatic stripper and crimper |
| Order No. | 2580000000 |

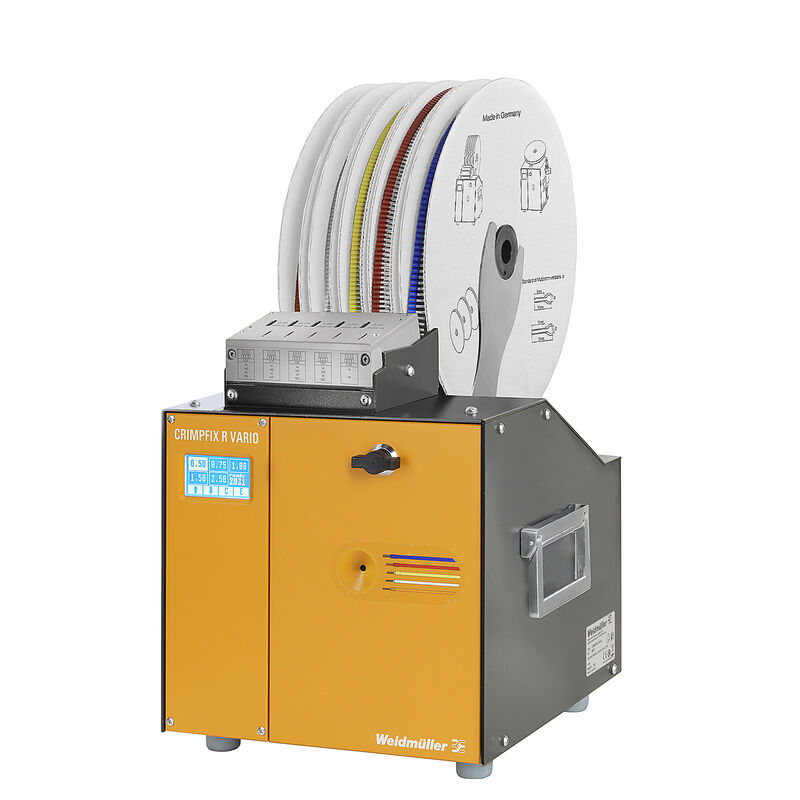

| Type | CRIMPFIX R VARIO |
| GTIN (EAN) | 4050118605846 |
| Qty. | 1 Styk |
| Depth | 485 mm |
| Depth (inches) | 19,094 inch |
| Height | 565 mm |
| Height (inches) | 22,244 inch |
| Width | 335 mm |
| Width (inches) | 13,189 inch |
| Net weight | 25.265 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d2df479e-2b79-4e98-adc7-b03577df98ae |
| Compressed-air connection | 5 - 5.5 bar |
| Consumables | Linked wire-end ferrules |
| Crimping | Trapezoidal |
| Crimping length | 8/10 mm |
| Drive | Electropneumatic |
| Electrical connection | 100 - 240 V / 50/60 Hz / 16 VA |
| Insertion length, min. | 27 mm |
| Length of wire-end ferrule | 14/16 mm |
| Pulse time | approx. 2 s |
| Stripping range | 0.5 - 2.5 mm² (~AWG 20-14) |
| Wire end ferrules cross-section, max. | 2,5 mm² |
| Wire end ferrules cross-section, min. | 0,5 mm² |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_72243) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002778 |
| ETIM 7.0 | EC002778 |
| ETIM 8.0 | EC002778 |
| ETIM 9.0 | EC002778 |
| ECLASS 9.0 | 17-13-01-01 |
| ECLASS 9.1 | 17-13-01-01 |
| ECLASS 10.0 | 17-13-01-01 |
| ECLASS 11.0 | 17-13-01-01 |
| ECLASS 12.0 | 17-13-01-01 |
| ECLASS 13.0 | 17-13-01-01 |
| ECLASS 14.0 | 17-13-01-01 |
| Approvals |  |
| ROHS | Conform |
