Egenskaber
| Version | Enclosures, AutomationController, Height: 400 mm, Width: 600 mm, Depth: 132 mm, Material: PC-ABS, untreated, Light Grey |
| Order No. | 8000142794 |

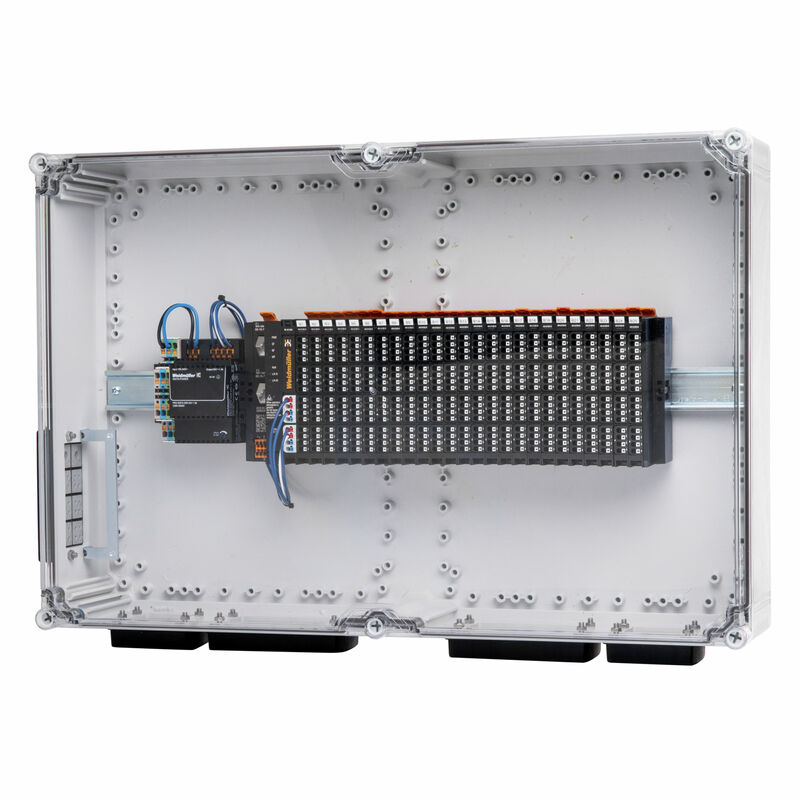

| Type | CVM PLC 100 CABTITE PSU 24V |
| GTIN (EAN) | 4099987105651 |
| Qty. | 1 Styk |
| Depth | 132 mm |
| Depth (inches) | 5,197 inch |
| Height | 400 mm |
| Height (inches) | 15,748 inch |
| Width | 600 mm |
| Width (inches) | 23,622 inch |
| Net weight | 8.788,488 g |
| Operating temperature | -20 °C...60 °C |
| Humidity | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Lead monoxide 1317-36-8 |
| Rated current, max. number of poles (Tu=20°C) | 10 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 500 V |
| Insulating material | PC |
| Insulating material group | II |
| Material | PC-ABS |
| Surface finish | untreated |
| Colour | Light Grey |
| Colour chart (similar) | RAL 7035 |
| Protection degree | IP66 |
| Adjacent | Yes, no gap |
| DIN Rail compatibility | TS 35 |
| Direct mounting possible | Yes |
| Housing version | Plastic, protective insulation |
| Shielding | No |
| Customer specific cutouts possible | Yes |
| Customer specific labelling possible | Yes |
| Marker integrateable | Yes |
| Cut out as preperation for functional port integrated | Yes |
| Continuous current of cross-connection | 100 mA |
| Cross-connection | No |
| Number of connection levels | 100 |
| Number of poles | 100 |
| Tightening torque, min. | 0,8 Nm |
| Tightening torque, max. | 0,8 Nm |
| Version | AutomationController |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-92 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-02-04 |
| ECLASS 14.0 | 27-19-02-04 |
