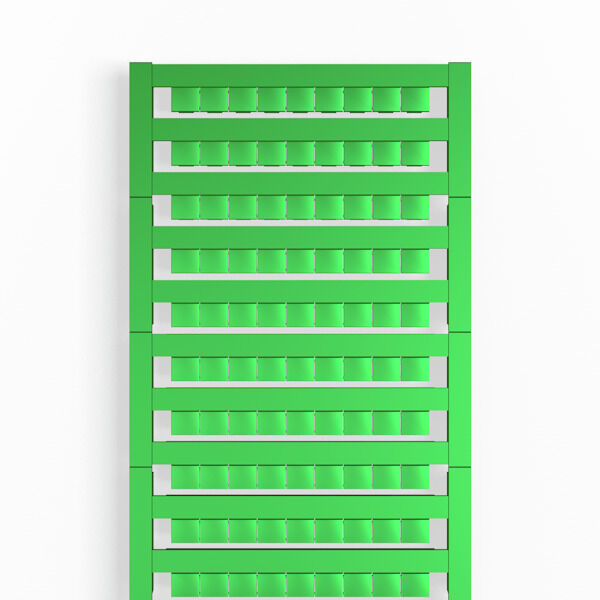

DEK 5/6 MC NE GN

Dekafix, Terminal marker, 5 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, green

Produkt ID 1238310000

Egenskaber

General ordering data

Version	Dekafix, Terminal marker, 5 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, green
Order No.	1238310000
Type	DEK 5/6 MC NE GN
GTIN (EAN)	4050118271812
Qty.	1.000 Styk

Dimensions and weights

Height	5 mm
Height (inches)	0,197 inch
Width	6 mm
Width (inches)	0,236 inch
Net weight	0,128 g

Temperatures

Operating temperature range

-40...100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Application/manufacturer	Weidmueller
Colour	green
compatible printer	[PRINTJET CONNECT](~/p/2715590000)
Halogen	No
Material	Polyamide 66
Number of markers per combination	1 MultiCard = Terminal marker
Number of markers per packaging unit	Form of supply: MultiCard
Operating temperature range	-40...100 °C
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Orientation of print	horizontal and vertical
Printed characters	neutral
UL 94 flammability rating	V-2
Width	6 mm

Connector markers

Pitch in mm (P)

6 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52057)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1238310000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1238310000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1238310000&norm=0)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000761
ETIM 7.0	EC000761
ETIM 8.0	EC000761
ETIM 9.0	EC000761
ECLASS 9.0	27-14-11-37
ECLASS 9.1	27-14-11-37
ECLASS 10.0	27-14-11-37
ECLASS 11.0	27-28-11-01
ECLASS 12.0	27-28-11-01
ECLASS 13.0	27-28-11-01
ECLASS 14.0	27-28-11-01

Approvals

ROHS

Conform
