Egenskaber

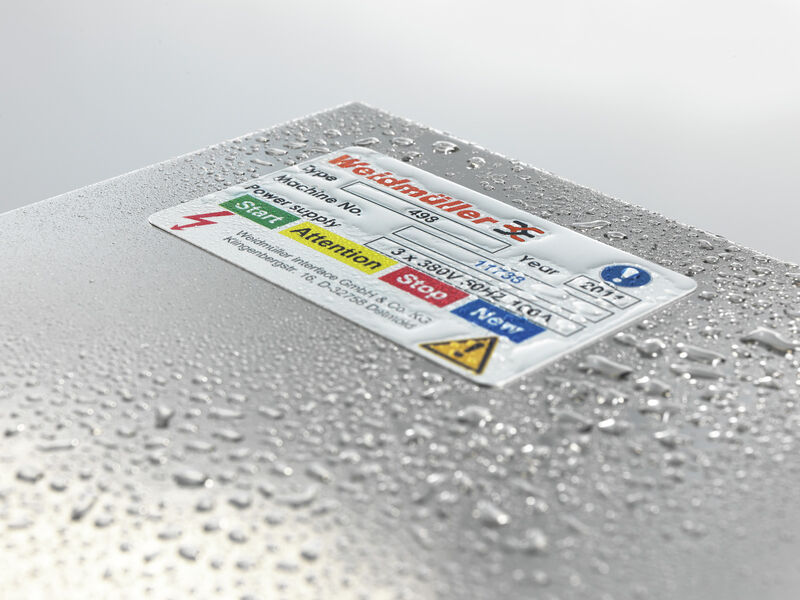

| Version | MetalliCard, Adhesive strip, 43 x 70 mm, Transparent |
| Order No. | 1500340000 |
| Type | DKB CC 43/70 |
| GTIN (EAN) | 4050118309041 |
| Qty. | 100 Styk |
| Depth | 0,01 mm |
| Depth (inches) | 0 inch |
| Height | 43 mm |
| Height (inches) | 1,693 inch |
| Width | 70 mm |
| Width (inches) | 2,756 inch |
| Net weight | 0,01 g |
| Operating temperature range | -40...160 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Modified acrylate |
| Colour | Transparent |
| Material | Polyester film |
| Number of markers per combination | 1 MetalliCard = Adhesive strip |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...160 °C |
| Operating temperature range, max. | 160 °C |
| Operating temperature range, min. | -40 °C |
| Recommended industries |
Energy
Process |
| Version | Self-adhesive |
| Width | 70 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1500340000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
