Egenskaber
| Version | Accessories, Cutter holder |
| Order No. | 1119030000 |
| Type | ERME 10² SPX 4 |
| GTIN (EAN) | 4032248948420 |
| Qty. | 1 Styk |
| Depth | 11,2 mm |
| Depth (inches) | 0,441 inch |
| Height | 23 mm |
| Height (inches) | 0,906 inch |
| Width | 52 mm |
| Width (inches) | 2,047 inch |
| Net weight | 25,6 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | No SVHC above 0.1 wt% |

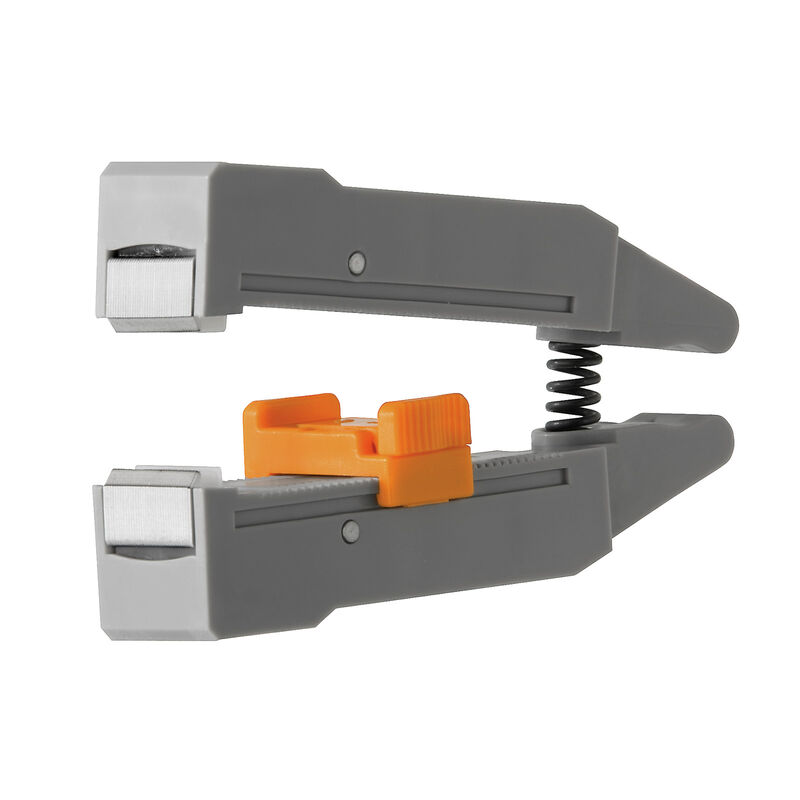

| Description of article | Blade head for Stripax 10 |
| Colour | grey |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 0,08 mm² |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001509 |
| ETIM 7.0 | EC001509 |
| ETIM 8.0 | EC001509 |
| ETIM 9.0 | EC001509 |
| ECLASS 9.0 | 21-04-92-37 |
| ECLASS 9.1 | 21-01-90-90 |
| ECLASS 10.0 | 21-04-92-37 |
| ECLASS 11.0 | 21-04-48-91 |
| ECLASS 12.0 | 21-04-48-91 |
| ECLASS 13.0 | 21-04-48-91 |
| ECLASS 14.0 | 21-04-48-91 |
