Egenskaber

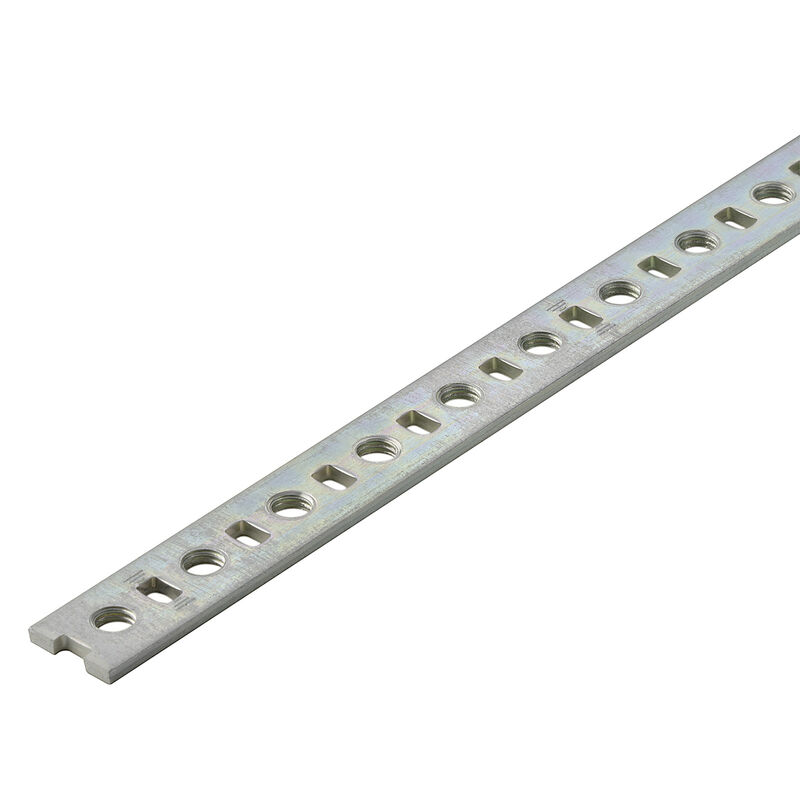

| Version | Busbar (terminal), silver, Height: 12 mm, Depth: 2 mm, Steel |
| Order No. | 0280300000 |
| Type | ESCH 1 M |
| GTIN (EAN) | 4008190143053 |
| Qty. | 10 |
| Depth | 2 mm |
| Depth (inches) | 0,079 inch |
| Height | 12 mm |
| Height (inches) | 0,472 inch |
| Width | 1.000 mm |
| Width (inches) | 39,37 inch |
| Net weight | 152 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Steel |
| Surface finish | galvanized |
| Colour | silver |
| Installation advice | Direct mounting |
| Type of connection | Screw connection |
| Installation advice | Direct mounting |
| Surface finish | galvanized |
| Rated current | 24 A |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_245731)
[UKCA Attestation of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_255566) [UKCA Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_255567) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72238) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0280300000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0280300000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-14-11-92 |
| ECLASS 14.0 | 27-14-11-92 |
| ROHS | Conform |
