Egenskaber
| Version | Miniature fuse, 4 A |
| Order No. | 1279020000 |

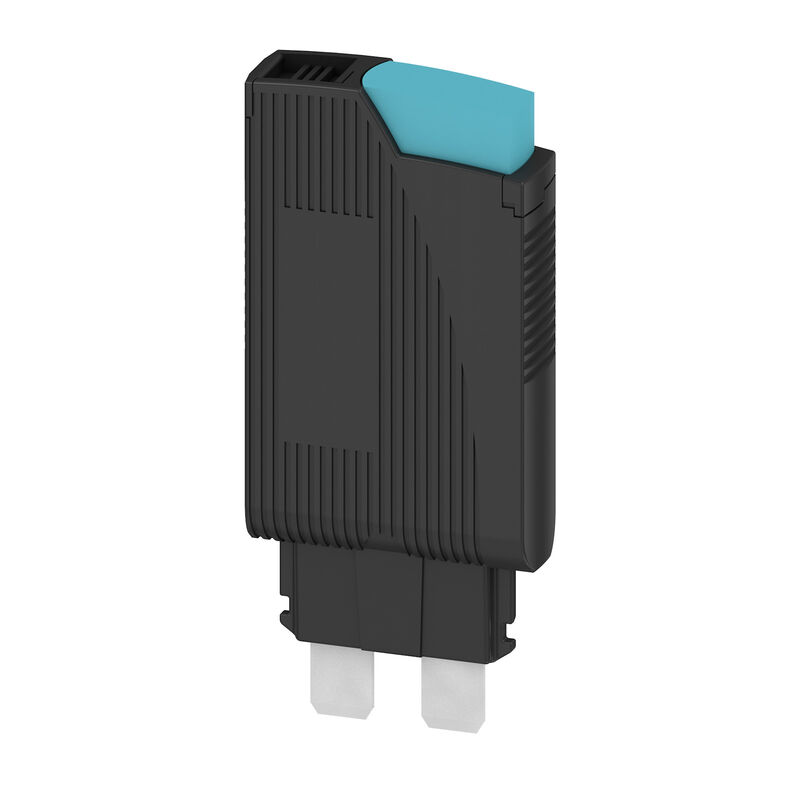

| Type | ETA 1180 01 4A |
| GTIN (EAN) | 4050118091496 |
| Qty. | 5 Styk |
| Depth | 52,3 mm |
| Depth (inches) | 2,059 inch |
| Height | 24,4 mm |
| Height (inches) | 0,961 inch |
| Width | 8,2 mm |
| Width (inches) | 0,323 inch |
| Net weight | 10,6 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Version | Fuse cartridge |
| Installation advice | Direct mounting |
| Type of mounting | Plugged |
| Colour | black |
| Current | 4 A |
| Version | Fuse cartridge |
| Installation advice | Direct mounting |
| Rated voltage | 64 V |
| Rated current | 4 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_70257) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1279020000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1279020000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000035 |
| ETIM 7.0 | EC000035 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 9.0 | 27-14-20-01 |
| ECLASS 9.1 | 27-14-20-01 |
| ECLASS 10.0 | 27-14-20-01 |
| ECLASS 11.0 | 27-14-20-01 |
| ECLASS 12.0 | 27-14-20-01 |
| ECLASS 13.0 | 27-14-20-01 |
| ECLASS 14.0 | 27-14-20-01 |
| ROHS | Conform |
