Egenskaber
| Order No. | 7940125450 |

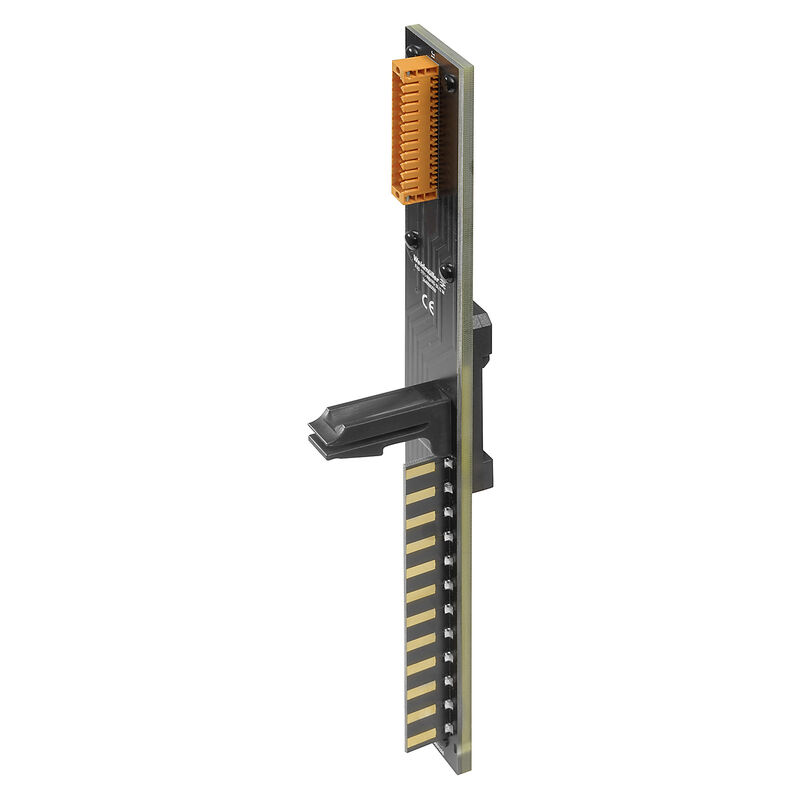

| Type | FAD 1771-WB/WD SL12 M US |
| GTIN (EAN) | 4064675209164 |
| Qty. | 1 Styk |
| Depth | 53 mm |
| Depth (inches) | 2,087 inch |
| Height | 269 mm |
| Height (inches) | 10,591 inch |
| Width | 32 mm |
| Width (inches) | 1,26 inch |
| Net weight | 159 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -25...50 °C |
| Connection (field side) | Card edge |
| Connection on control side | SL 3.5 header |
| Number of poles (control side) | 12-pole |
| Connection (field side) | Card edge |
| Connection to PLC | SL 3.5/F 12p connector |
| Max. current per channel | 2 A |
| Total operating current | 6 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | < 300 V AC |
| Surge voltage category | II |
| Pollution severity level | 2 |
| Insulation test voltage AC | 1,2 kV |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002584 |
| ETIM 7.0 | EC002584 |
| ETIM 8.0 | EC002584 |
| ETIM 9.0 | EC002584 |
| ECLASS 9.0 | 27-33-02-92 |
| ECLASS 9.1 | 27-24-22-92 |
| ECLASS 10.0 | 27-33-02-92 |
| ECLASS 11.0 | 27-33-02-92 |
| ECLASS 12.0 | 27-33-02-92 |
| ECLASS 13.0 | 27-33-02-92 |
| Approvals |  |
