Egenskaber

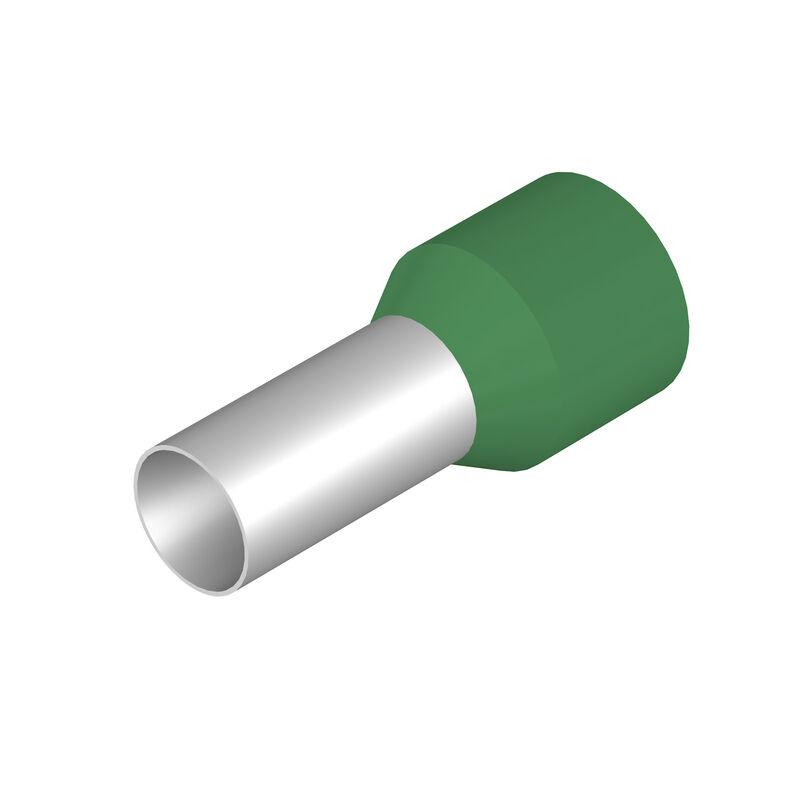

| Version | Wire-end ferrule, Standard, 15 mm, 12 mm, green |
| Order No. | 0565900000 |
| Type | H16,0/22 GN |
| GTIN (EAN) | 4008190022181 |
| Qty. | 100 Styk |
| Packaging | loose |
| Net weight | 0,534 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Description of article | Wire end ferrule with plastic collar, green |
| Version | Standard |
| Collar diameter (D2) | 8,8 mm |
| Colour code | Weidmueller |
| Conductor cross-section | 16 mm² |
| Contact surface diameter (D1) | 5,8 mm |
| Contact surface length (L2) | 12 mm |
| L1 in mm | 22 mm |
| Metal sleeve thickness (S1) | 0,2 mm |
| Plastic collar thickness (S2) | 0,4 mm |
| Stripping length | 15 mm |
| Wire connection cross section AWG, max. | AWG 6 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_53528) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0565900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0565900000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0565900000&norm=0) |
| User Documentation |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate no. (cULus) | E499744 |
