Egenskaber
| Version | cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue |
| Order No. | 1233330000 |
| Type | HBT 2,5 - 4,6 BL |
| GTIN (EAN) | 4050118016901 |
| Qty. | 100 Styk |
| Net weight | 1,05 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Description of article | isolated hook-blade cable lug |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Identification colour | blue |
| Insulation | Available |
| Material/plastic | PC |

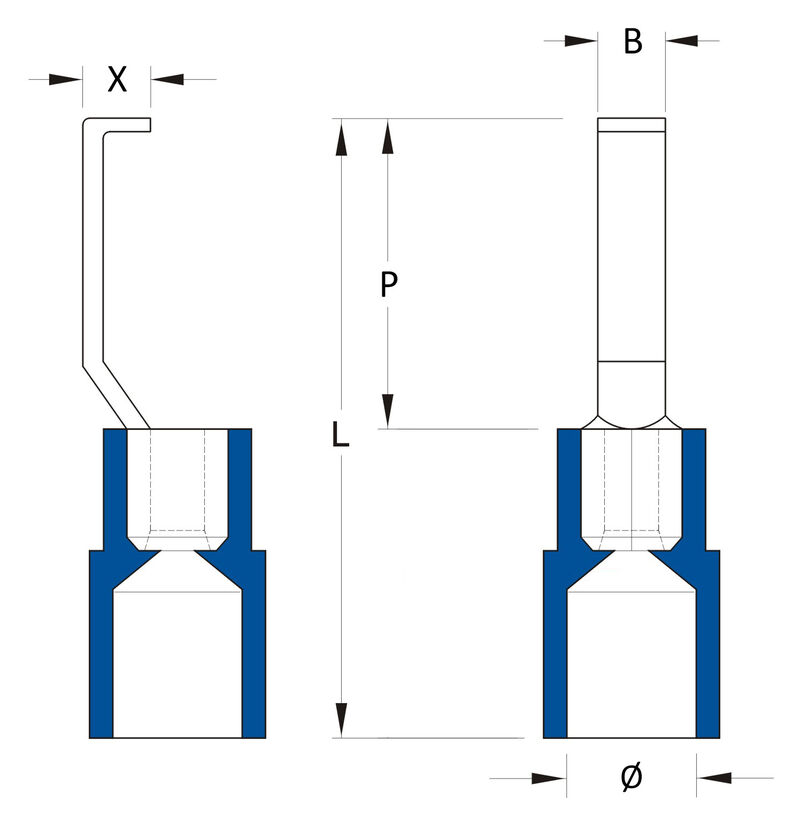

| Hook nose X | 2,1 mm |
| Insulation cross-section | 4.5 |
| Length L | 28,2 mm |
| Pin length P | 17,4 mm |
| Pin width B | 4,6 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1233330000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001059 |
| ETIM 7.0 | EC001059 |
| ETIM 8.0 | EC001059 |
| ETIM 9.0 | EC001059 |
| ECLASS 9.0 | 27-40-02-92 |
| ECLASS 9.1 | 27-40-02-12 |
| ECLASS 10.0 | 27-40-02-92 |
| ECLASS 11.0 | 27-40-02-92 |
| ECLASS 12.0 | 27-40-02-92 |
| ECLASS 13.0 | 27-40-02-92 |
| ECLASS 14.0 | 27-40-02-92 |
| ROHS | Conform |
