Egenskaber
| Version | HDC insert, Pin, 500 V, 40 A, Number of poles: 6, Screw connection, Size: 3 |
| Order No. | 2466810000 |
| Type | HDC AOC 6 MS |
| GTIN (EAN) | 4050118501575 |
| Qty. | 1 Styk |

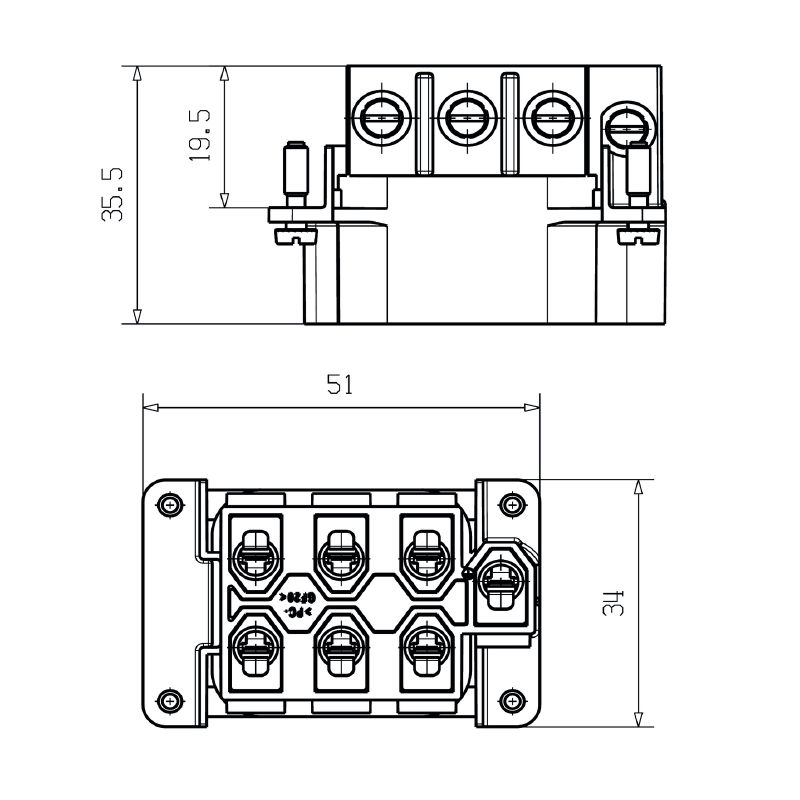

| Depth | 34,8 mm |
| Depth (inches) | 1,37 inch |
| Height | 41,7 mm |
| Height (inches) | 1,642 inch |
| Width | 51 mm |
| Width (inches) | 2,008 inch |
| Net weight | 68,3 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | b67daa31-7dca-434d-8290-da7fb52f83a2 |
| Height of socket | 41,7 mm |
| Total length base | 34,8 mm |
| Width | 51 mm |
| BG | 3 |
| Colour | Light Grey |
| Conductor cross-section | 3 mm² |
| Insulating material | Polyester glass-fibre reinforced, Polycarbonate |
| Insulation strength | ≥ 10¹⁰ Ω |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Polycarbonate, glass fibre reinforced |
| Number of poles | 6 |
| Plugging cycles, silver | 500 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 40 A |
| Rated impulse voltage (DIN EN 61984) | 6 kV |
| Rated voltage (DIN EN 61984) | 500 V |
| Series | AOC |
| Size | 3 |
| Type | Pin |
| Type of connection | Screw connection |
| UL 94 flammability rating | V-0 |
| Volume resistance | 2.00 mΩ |
| Blade size, crosshead | 0.6 x 3.5 mm |
| Connection type PE | Screw connection |
| Fixing screw | M 4 |
| Rated cross-section | 4 mm² |
| Stripping length PE connection | 11 mm |
| Tightening torque, max. PE connection | 1,5 Nm |
| Tightening torque, min. PE connection | 1,2 Nm |
| Wire cross section, AWG (PE), max. | AWG 12 |
| Wire cross section, AWG (PE), min. | AWG 16 |
| Tightening torque, signal contact, max. | 1,5 Nm |
| Tightening torque, signal contact, min. | 1,2 Nm |
| BG | 3 |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Material | Polycarbonate, glass fibre reinforced |
| Size | 3 |
| Stripping length, rated connection | 11 mm |
| Type of connection | Screw connection |
| Volume resistance | 2.00 mΩ |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire cross-section, solid, max. | 4 mm² |
| Wire cross-section, solid, min. | 1,5 mm² |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72303) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000438 |
| ETIM 7.0 | EC000438 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-05 |
| ECLASS 9.1 | 27-44-02-05 |
| ECLASS 10.0 | 27-44-02-05 |
| ECLASS 11.0 | 27-44-02-05 |
| ECLASS 12.0 | 27-44-02-05 |
| ECLASS 13.0 | 27-44-02-05 |
| ECLASS 14.0 | 27-44-02-05 |
| ROHS | Conform |
