Download datablad Anvendte produkter

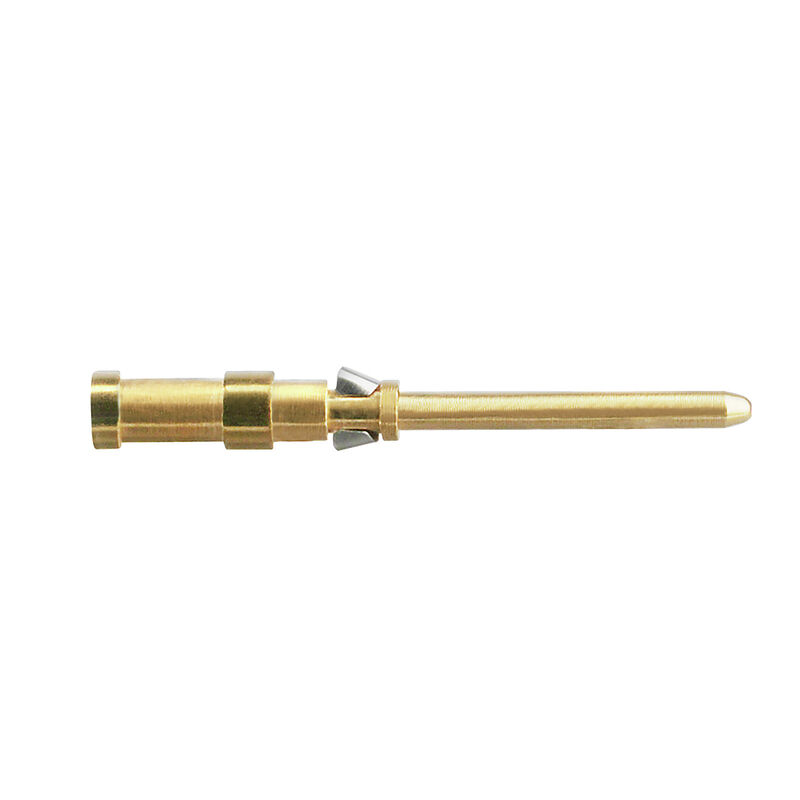

HDC-C-HD-SM0.75-1.00AU

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy

Produkt ID 1651640000

Egenskaber

General ordering data

Version	Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy
Order No.	1651640000
Type	HDC-C-HD-SM0.75-1.00AU
GTIN (EAN)	4008190400316
Qty.	100 Styk

Dimensions and weights

Diameter	3,2 mm
Net weight	0,622 g

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	6eabd5ae-2d6b-409e-8bdf-87c27ee10e40

General data

Conductor cross-section, max.	1 mm²
Conductor cross-section, min.	0,75 mm²
Contact diameter, male Ø	1,6 mm
Contact material	Copper alloy
Cross-section for connected wire	0.75 - 1 mm²
Material	Copper alloy
Plugging cycles	≥ 500
Production methods	turned
Series	HD
Stripping length, rated connection	8 mm
Surface finish	gold
Type	Male
Type of connection	Crimp connection
Version insert	HD HDD HQ MixMate
Volume resistance	≤4 mΩ

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96185)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1651640000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1651640000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Classifications

ETIM 6.0	EC000796
ETIM 7.0	EC000796
ETIM 8.0	EC000796
ETIM 9.0	EC000796
ECLASS 9.0	27-44-02-04
ECLASS 9.1	27-44-02-04
ECLASS 10.0	27-44-02-04
ECLASS 11.0	27-44-02-04
ECLASS 12.0	27-44-02-04
ECLASS 13.0	27-44-02-04
ECLASS 14.0	27-44-02-04

Approvals

Approvals	![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E92202

Tilbehør

ToolsMiscellaneous toolsContact removal toolsContact removal tools

REMOVAL TOOL HD

Produkt ID:

1866730000

Pakningsenhed:

1 Styk

Tools, Contact Removal Tool

Datablad Downloads

ToolsCrimping tools...for turned/stamped contacts... for milled contactsCrimping tools

CTX CM 1.6/2.5

Produkt ID:

9018490000

Pakningsenhed:

1 Styk

Pressing tool, Crimping tool for contacts, 0.14mm², 4mm², W crimp

Datablad Downloads

CTIN CM 1.6/2.5

Produkt ID:

9205430000

Pakningsenhed:

1 Styk

Pressing tool, Crimping tool for contacts, 0.14mm², 6mm², 4-indent crimp

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHQ Series - 10A - 40A, 250V - 690V, 5 - 17 polesCrimp connectionSize HQ4/2-pole

HDC HQ 4/2 FC

Produkt ID:

1003160000

Pakningsenhed:

1 Styk

HDC insert, Female, 690 V, 40 A, Number of poles: 6, Crimp connection, Size: HQ

Datablad Downloads

HDC HQ 4/2 MC

Produkt ID:

1003170000

Pakningsenhed:

1 Styk

HDC insert, Male, 690 V, 40 A, Number of poles: 6, Crimp connection, Size: HQ

Datablad Downloads

Er tilbehør til

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHDD Series - 10A, 250V, 24 - 216 polesCrimp connectionSize 12

HDC HDD 108 MC 109-216

Produkt ID:

1651280000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 108, Crimp connection, Size: 8

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHQ Series - 10A - 40A, 250V - 690V, 5 - 17 polesCrimp connectionSize HQ17-pole

HDC HQ 17 MC

Produkt ID:

1003210000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 17, Crimp connection, Size: HQ

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHD Series - 10A, 250V, 7 - 128 polesCrimp connectionSize 5

HDC HD 25 MC

Produkt ID:

1650810000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 25, Crimp connection, Size: 5

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHDD Series - 10A, 250V, 24 - 216 polesCrimp connectionSize 3

HDC HDD 24 MC

Produkt ID:

1651150000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 24, Crimp connection, Size: 3

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHD Series - 10A, 250V, 7 - 128 polesCrimp connectionSize 4

HDC HD 24 MC

Produkt ID:

1650870000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 24, Crimp connection, Size: 4

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHD Series - 10A, 250V, 7 - 128 polesCrimp connectionSize 2

HDC HD 15 MC

Produkt ID:

1650650000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 15, Crimp connection, Size: 2

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHQ Series - 10A - 40A, 250V - 690V, 5 - 17 polesCrimp connectionSize 112-pole

HDC HQ 12 MC

Produkt ID:

1993810000

Pakningsenhed:

10 Styk

HDC insert, Male, 400 V, 10 A, Number of poles: 12, Crimp connection, Size: 1

Datablad Downloads

ConnectorsHeavy duty connectorsRockStar® ModuPlugModulesElectrical modules

HDC MMBIT 8 MC M2 SH

Produkt ID:

3092890000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Male, Required plug-in slots:

Datablad Downloads

HDC MMBIT 8 MC M SH

Produkt ID:

3092990000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Male, Required plug-in slots:

Datablad Downloads

HDC MMBIT 8 FC M

Produkt ID:

3092830000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Female, Required plug-in slots:

Datablad Downloads

HDC MHD 17 MC

Produkt ID:

2748480000

Pakningsenhed:

5 Styk

Signal module, 160 V, 10 A, Number of poles: 17, Crimp connection, Male, Required plug-in slots: 1

Datablad Downloads

HDC MMBIT 8 FC M SH

Produkt ID:

3092860000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Female, Required plug-in slots:

Datablad Downloads

HDC MHX 3/4 MC

Produkt ID:

2748360000

Pakningsenhed:

5 Styk

Power module, Number of poles: 7, Crimp connection, Male, Required plug-in slots: 1

Datablad Downloads

HDC MHD 12 MC

Produkt ID:

1428840000

Pakningsenhed:

1 Styk

Signal module, 250 V, 10 A, Number of poles: 12, Crimp connection, Male, Required plug-in slots: 1

Datablad Downloads

HDC MHD 36 MC

Produkt ID:

1428860000

Pakningsenhed:

1 Styk

Signal module, 250 V, 10 A, Number of poles: 36, Crimp connection, Male, Required plug-in slots: 2

Datablad Downloads

HDC MMBIT 8 MC M

Produkt ID:

3092870000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Male, Required plug-in slots:

Datablad Downloads

HDC MMBIT 8 FC M2 SH

Produkt ID:

3092850000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Female, Required plug-in slots:

Datablad Downloads

HDC MBUS HD 1 M

Produkt ID:

2748630000

Pakningsenhed:

1 Styk

Data use, 50 V, 10 A, Number of poles: 1, Crimp connection, Male, Required plug-in slots:

Datablad Downloads

HDC MMBIT 8 MC M2

Produkt ID:

3092880000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Male, Required plug-in slots:

Datablad Downloads

HDC MMBIT 8 FC M2

Produkt ID:

3092840000

Pakningsenhed:

1 Styk

Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Female, Required plug-in slots:

Datablad Downloads

HDC MBUS HD 4 M

Produkt ID:

2748590000

Pakningsenhed:

1 Styk

Data use, 50 V, 10 A, Number of poles: 4, Crimp connection, Male, Required plug-in slots:

Datablad Downloads

HDC MHD 42 MC

Produkt ID:

3011270000

Pakningsenhed:

1 Styk

Module, 250 V, 10 A, Number of poles: 42, Crimp connection, Male, Required plug-in slots: 2

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHQ Series - 10A - 40A, 250V - 690V, 5 - 17 polesCrimp connectionSize HQ4/2-pole

HDC HQ 4/2 MC

Produkt ID:

1003170000

Pakningsenhed:

1 Styk

HDC insert, Male, 690 V, 40 A, Number of poles: 6, Crimp connection, Size: HQ

Datablad Downloads

HDC HQ 4/2 FC

Produkt ID:

1003160000

Pakningsenhed:

1 Styk

HDC insert, Female, 690 V, 40 A, Number of poles: 6, Crimp connection, Size: HQ

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHDD Series - 10A, 250V, 24 - 216 polesCrimp connectionSize 4

HDC HDD 42 MC

Produkt ID:

1651170000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 42, Crimp connection, Size: 4

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHD Series - 10A, 250V, 7 - 128 polesCrimp connectionSize 7

HDC HD 25 MC Z

Produkt ID:

1023040000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 25, Crimp connection, Size: 5, 7

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHDD Series - 10A, 250V, 24 - 216 polesCrimp connectionSize 6

HDC HDD 72 MC WO SCREW

Produkt ID:

1092130000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 72, Crimp connection, Size: 6

Datablad Downloads

HDC HDD 72 MC

Produkt ID:

1651190000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 72, Crimp connection, Size: 6

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHDD Series - 10A, 250V, 24 - 216 polesCrimp connectionSize 10

HDC HDD 72 MC 73-144

Produkt ID:

1651240000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 72, Crimp connection, Size: 6

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHD Series - 10A, 250V, 7 - 128 polesCrimp connectionSize 6

HDC HD 40 MC

Produkt ID:

1601710000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 40, Crimp connection, Size: 6

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHD Series - 10A, 250V, 7 - 128 polesCrimp connectionSize 1

HDC HD 8 MC

Produkt ID:

1650590000

Pakningsenhed:

1 Styk

HDC insert, Male, 50 V, 10 A, Number of poles: 8, Crimp connection, Size: 1

Datablad Downloads

HDC HD 7 MC

Produkt ID:

1650570000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 7, Crimp connection, Size: 1

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHQ Series - 10A - 40A, 250V - 690V, 5 - 17 polesCrimp connectionSize 17-pole

HDC HQ 7 MC

Produkt ID:

1003190000

Pakningsenhed:

1 Styk

HDC insert, Male, 400 V, 10 A, Number of poles: 7, Crimp connection, Size: 1

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHD Series - 10A, 250V, 7 - 128 polesCrimp connectionSize 8

HDC HD 64 MC

Produkt ID:

1601720000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 64, Crimp connection, Size: 8

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsMixMate Series - 10A - 110A, 160V- 1000V, 4 - 42 polesCrimp connectionSize 6

HDC S6/36 MC

Produkt ID:

1023320000

Pakningsenhed:

1 Styk

HDC insert, Male, 690 V, 40 A, Number of poles: 42, Crimp connection, Size: 6

Datablad Downloads

HDC S12/2 MC

Produkt ID:

1023340000

Pakningsenhed:

1 Styk

HDC insert, Male, 690 V, 40 A, Number of poles: 14, Crimp connection, Size: 6

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsMixMate Series - 10A - 110A, 160V- 1000V, 4 - 42 polesCrimp connectionSize 4

HDC S8/24 MC

Produkt ID:

1023290000

Pakningsenhed:

1 Styk

HDC insert, Male, 400 V, 16 A, Number of poles: 32, Crimp connection, Size: 4

Datablad Downloads

ConnectorsHeavy duty connectorsInsertsFixed-pole insertsHDD Series - 10A, 250V, 24 - 216 polesCrimp connectionSize 8

HDC HDD 108 MC

Produkt ID:

1651210000

Pakningsenhed:

1 Styk

HDC insert, Male, 250 V, 10 A, Number of poles: 108, Crimp connection, Size: 8

Datablad Downloads
