Egenskaber

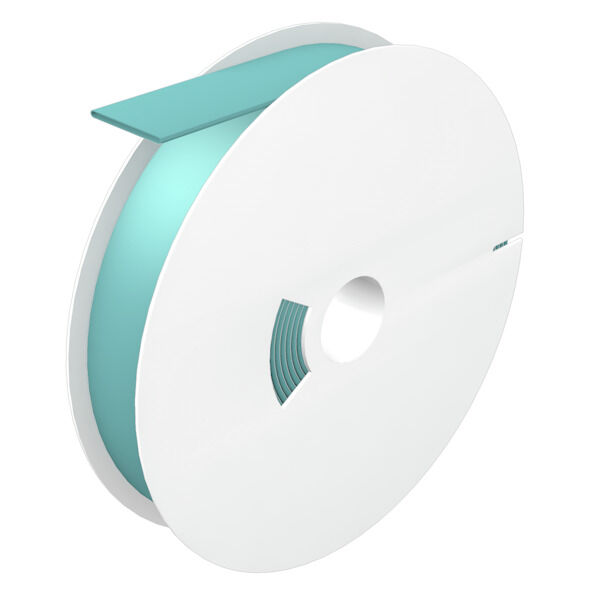

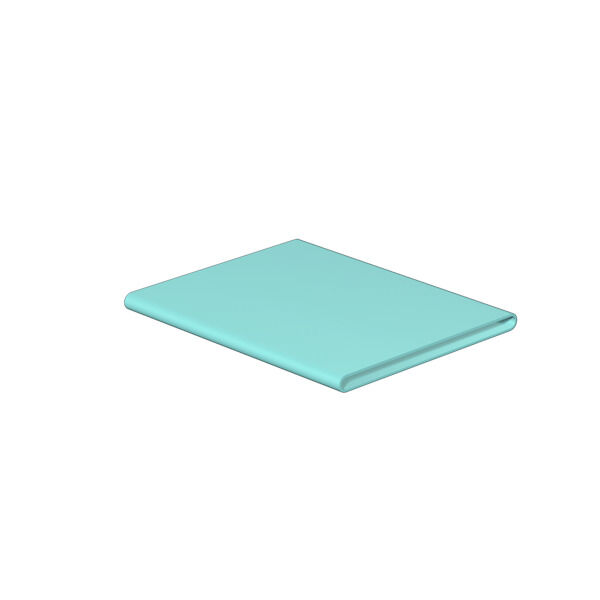

| Version | Conductor and cable markers, 12.7 - 25.4 mm, blue |
| Order No. | 1562930000 |
| Type | HSS-HF 12.7-25.4EL B30M |
| GTIN (EAN) | 4050118367720 |
| Qty. | 1 Styk |
| Depth | 1,5 mm |
| Depth (inches) | 0,059 inch |
| Width | 40,5 mm |
| Width (inches) | 1,594 inch |
| Length | 30.000 mm |
| Length (inches) | 1.181,1 inch |
| Net weight | 1.540 g |
| Operating temperature range | -55...105 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | blue |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Length | 30.000 mm |
| Material | Polyolefine |
| Number per roll | 1 |
| Operating temperature range | -55...105 °C |
| Operating temperature range, max. | 105 °C |
| Operating temperature range, min. | -55 °C |
| Printed characters | without |
| Type of printing | neutral |
| Width | 40,5 mm |
| Conductor cross-section, max. | 120 mm² |
| Conductor cross-section, min. | 35 mm² |
| Conductor O.D. | 12.7 - 25.4 mm |
| Conductor O.D., max. | 25,4 mm |
| Conductor O.D., min. | 12,7 mm |
| Cross-section for connected wire | 35 - 120 mm² |
| Halogen | No |
| Rate of shrinkage | 2:1 |
| Recommended shrinking temperature | 90 °C |
| Product information | External roll holder 1302920000 necessary |
| Approval/Certificate/Document of Conformity |
[NFX 70-100-1 2006 + NF X 70-100-2 2006](https://mdcop.weidmueller.com/mediadelivery/asset/900_74683)
[BS EN ISO 4589-2 1999](https://mdcop.weidmueller.com/mediadelivery/asset/900_74685) [EN 45545-2:2020](https://mdcop.weidmueller.com/mediadelivery/asset/900_257221) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1562930000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
