Egenskaber
| Version | Flange FO, IP67, Version 4, LC Duplex coupling, Multimode |
| Order No. | 1964460000 |

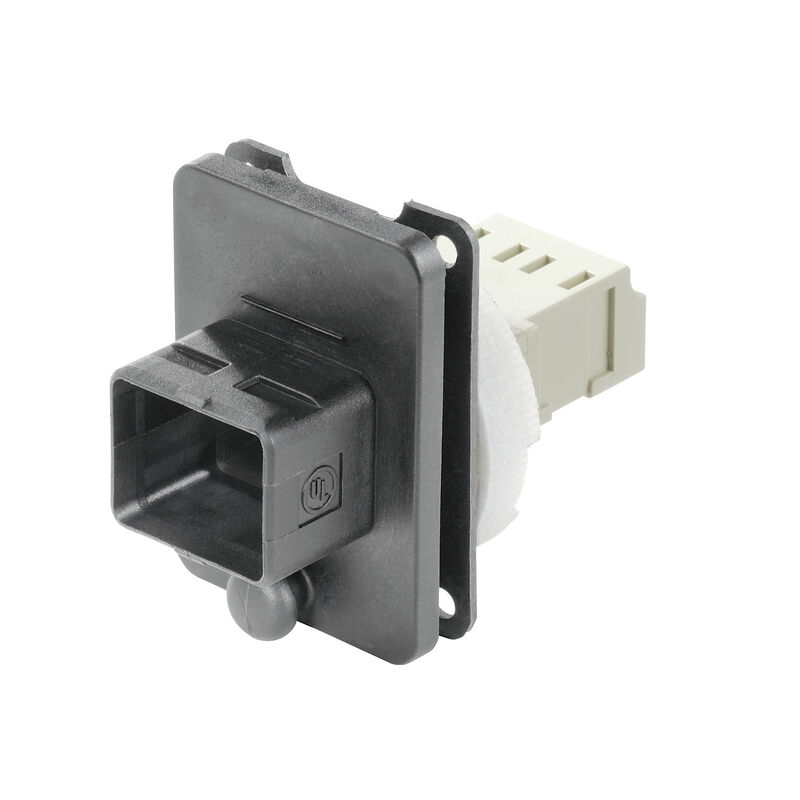

| Type | IE-BS-V04P-LCD-MM-C |
| GTIN (EAN) | 4032248651924 |
| Qty. | 10 Styk |
| Depth | 45,3 mm |
| Depth (inches) | 1,783 inch |
| Height | 38 mm |
| Height (inches) | 1,496 inch |
| Width | 27 mm |
| Width (inches) | 1,063 inch |
| Net weight | 25,3 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | Miscellaneous |
| Connection 1 | LC Duplex |
| Connection 2 | LC Duplex |
| Description of article | Version 4, LC Duplex coupling |
| Fibre type | Multimode |
| Housing main material | PA UL 94 V0 |
| Insertion loss | ≤ 0.4 dB |
| Plugging cycles | 500 |
| Protection degree | IP67 |
| Return loss (attenuation) | ≥ 30 dB |
| Connector standard |
IEC 61076-3-106 Var. 4
IEC 61754-20 |
| Approval/Certificate/Document of Conformity | [GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304706) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1964460000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000752 |
| ETIM 7.0 | EC000752 |
| ETIM 8.0 | EC000752 |
| ETIM 9.0 | EC000752 |
| ECLASS 9.1 | 19-17-01-16 |
| ECLASS 10.0 | 19-17-01-16 |
| ECLASS 11.0 | 19-17-01-16 |
| ECLASS 12.0 | 19-17-01-16 |
| ECLASS 13.0 | 19-17-01-16 |
| ECLASS 14.0 | 19-17-01-16 |
| ROHS | Conform |
