Egenskaber

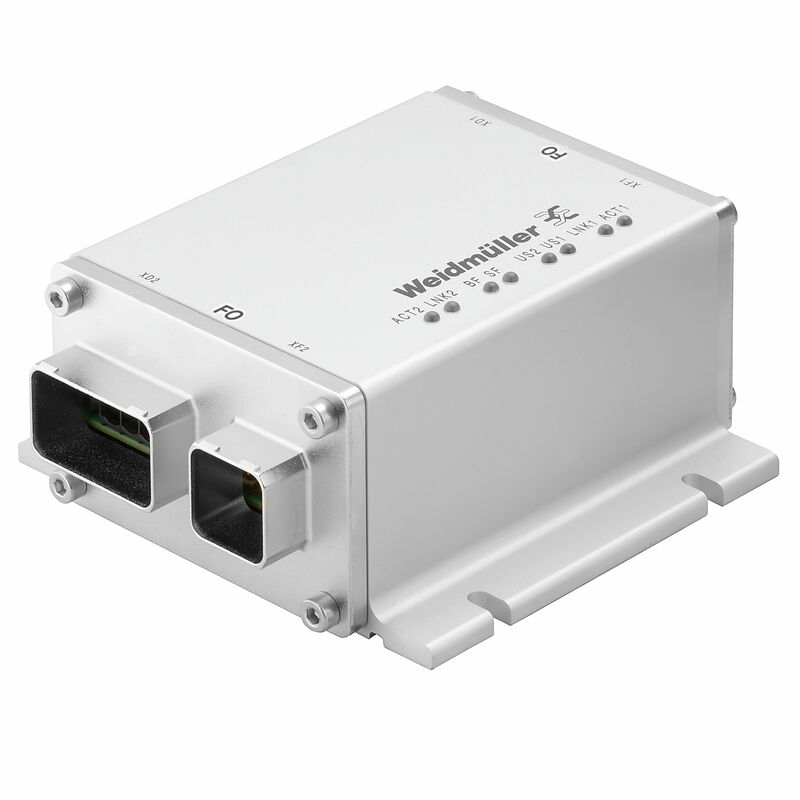

| Version | PROFINET POF Repeater, FreeCon, IP65 |
| Order No. | 2455360000 |
| Type | IE-CDR-V14MSCPOF/VAPM-C II |
| GTIN (EAN) | 4050118469967 |
| Qty. | 1 Styk |

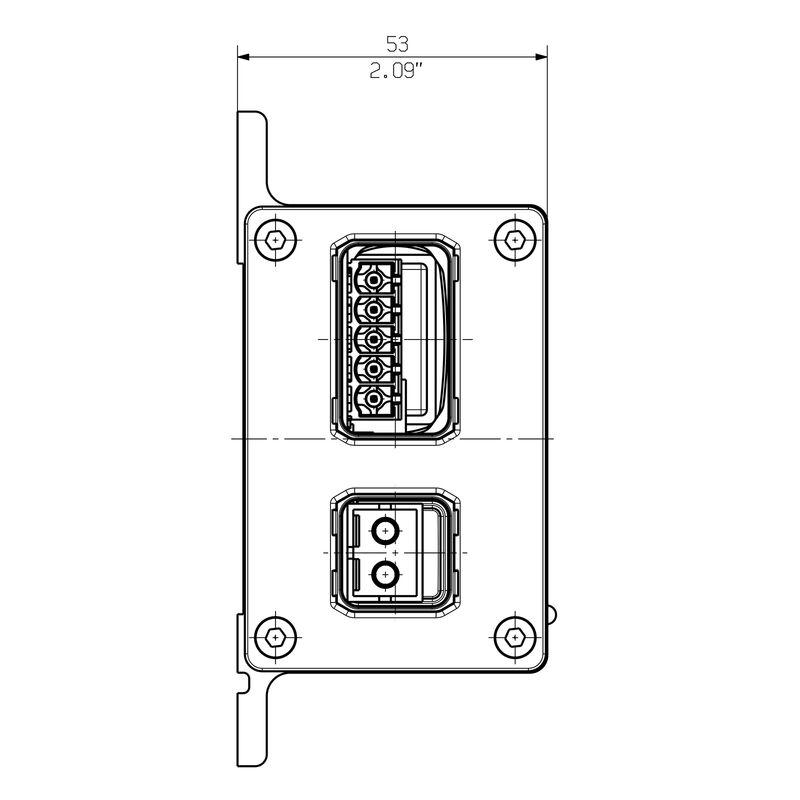

| Depth | 53 mm |
| Depth (inches) | 2,087 inch |

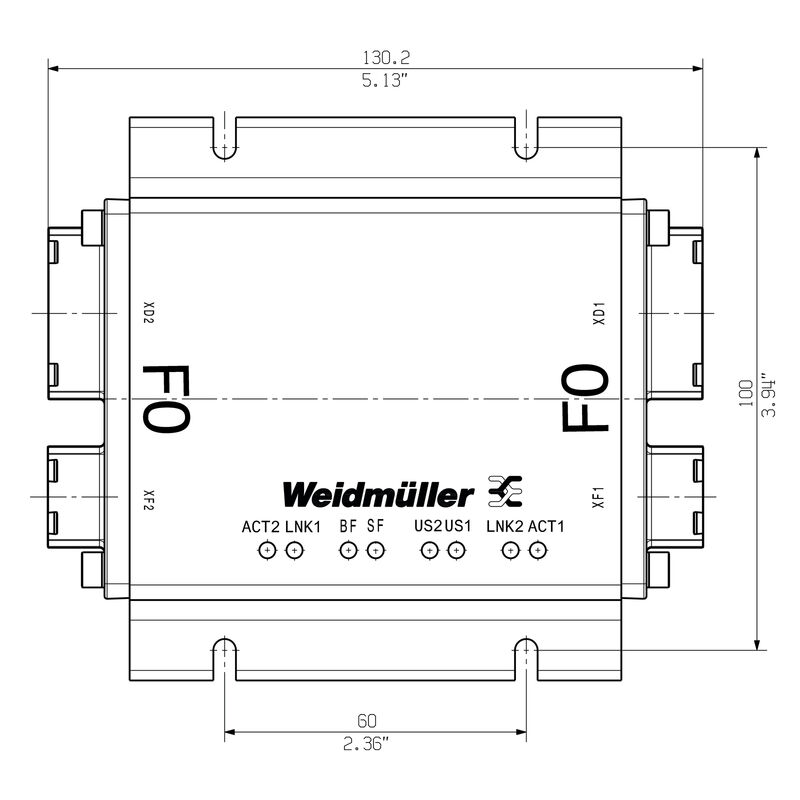

| Width | 100 mm |
| Width (inches) | 3,937 inch |
| Length | 130,4 mm |
| Length (inches) | 5,134 inch |
| Net weight | 0,773 g |
| Operating temperature | -20 °C...55 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Data interface | PROFINET PushPull SCRJ POF (V14) |
| Housing main material |
Aluminium profile
Zinc die cast, electroplated lid |
| Plugging cycles | ≥ 100 |
| Power interface | PROFINET PushPull Power |
| Protection degree | IP65 |
| Type of mounting | None |
| UL 94 flammability rating | V-0 |
| Wiring | PROFINET |
| Baud rate | 100 MB |
| Current consumption | 200 mA typical |
| LED indicator |
FO1: port active
FO2: port active SF: general error BF: bus error US1: voltage 1 (electronics) US2: voltage 2 ACT1: activity Port1 ACT2: activity Port2 |
| Operating voltage | 24 V |
| Operational voltage range | 18…30 V DC |
| Protocol | PROFINET IRT |
| Certificate no. (cULus) | E141197 |
| Connector standard |
IEC 61076-3-117 Var. 14
IEC 61754-24 |
| Network standard |
IEC 61158
IEC 61784 |
| PROFINET specification | Conformance Class C acc. V2.3 |
| Product information | Further development of 1253240000, IE-CDR-V14MSCPOF/VAPM-C. For commissioning, the new GSDML file (see Downloads) must be installed. |
| Approval/Certificate/Document of Conformity |
[PNO_Zertifikat_2455360000](https://mdcop.weidmueller.com/mediadelivery/asset/900_225419)
[IE-CDR-V14MSCPOF/VAPM-C II](https://mdcop.weidmueller.com/mediadelivery/asset/900_38124) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96031) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2455360000) |
| Product Change Notification |
[PCN DE FreeCon Active POF Repeater](https://mdcop.weidmueller.com/mediadelivery/asset/900_86628)
[PCN DE FreeCon Active POF Repeater](https://mdcop.weidmueller.com/mediadelivery/asset/900_86629) |
| Software |
[Runtime Software -- CFG configurator - Weidmueller_FreeCon](https://mdcop.weidmueller.com/mediadelivery/asset/900_58437)
[Firmware -- Firmware ABCC_40_PIR-FO_7360_1_13_05.hiff](https://mdcop.weidmueller.com/mediadelivery/asset/900_67332) [Device description -- GSDML-V2.35 POF](https://mdcop.weidmueller.com/mediadelivery/asset/900_67333) |
| User Documentation |
[Firmware update manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_58426)
[Manual EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_58435) [Manual DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_73659) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000732 |
| ETIM 7.0 | EC000732 |
| ETIM 8.0 | EC000732 |
| ETIM 9.0 | EC000732 |
| ECLASS 9.0 | 19-17-02-06 |
| ECLASS 9.1 | 19-17-01-25 |
| ECLASS 10.0 | 19-17-02-06 |
| ECLASS 11.0 | 19-17-02-06 |
| ECLASS 12.0 | 19-17-02-06 |
| ECLASS 13.0 | 19-17-02-06 |
| ECLASS 14.0 | 19-17-02-06 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
