Egenskaber

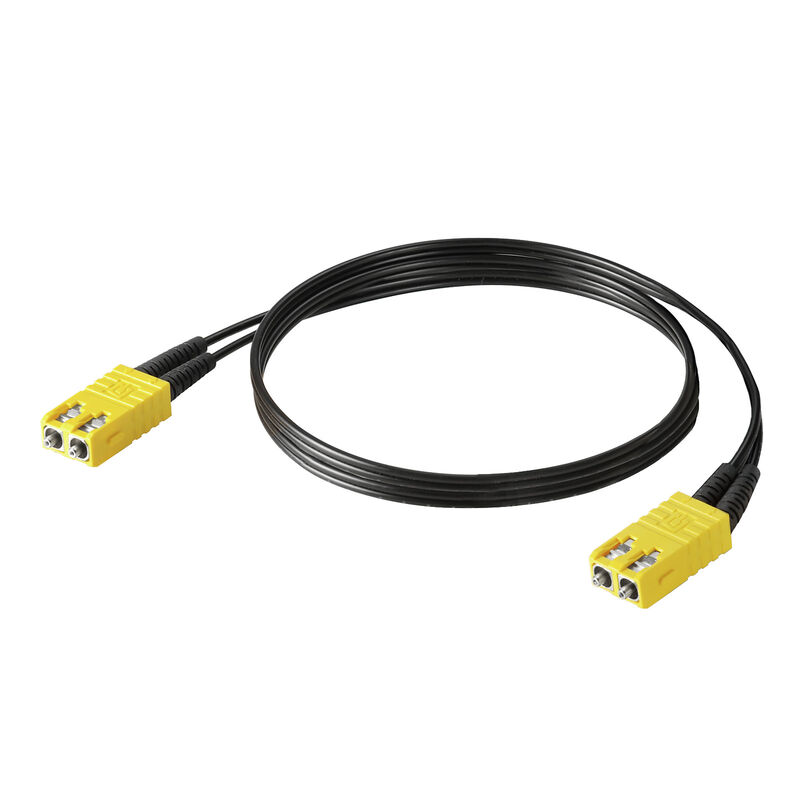

| Version | Connecting line, PROFINET, SCRJ IP 20, SCRJ IP 20, 980 µm, 1 m |
| Order No. | 1273430010 |
| Type | IE-FPOZ2EE0001MSJ0SJ0-X |
| GTIN (EAN) | 4050118062885 |
| Qty. | 1 Styk |
| Length | 1 m |
| Length (inches) | 39,37 inch |
| Net weight | 31 g |
| Operating temperature | -20 °C...80 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Attenuation | ≤ 160 dB/km at 650 nm |
| Bandwidth | ≥ 100 MHz*km at 650 nm |
| Fibre type | POF |
| Insertion loss | ≤ 1.0 dB |
| Cable layout | ZIPCORD |
| Core diameter | 980 µm |
| Insulation | PE |
| Number of wires | 2 |
| Sheath diameter | 2.2*4.5 mm |
| Sheathing colour | black |
| Bending cycles | 10.000 |
| Halogen | No |
| Min. bending radius, once only | 25 mm |
| Min. bending radius, repetitive | 25 mm |
| Pulling force | ≤ 160 N |
| Plug left | SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug left | SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | SC-RJ, IP20, male contact, straight, plug, Plastic, unshielded |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002607 |
| ETIM 7.0 | EC002607 |
| ETIM 8.0 | EC002607 |
| ETIM 9.0 | EC002607 |
| ECLASS 9.0 | 27-06-10-03 |
| ECLASS 9.1 | 27-06-10-03 |
| ECLASS 10.0 | 27-06-10-03 |
| ECLASS 11.0 | 27-06-10-03 |
| ECLASS 12.0 | 27-06-10-03 |
| ECLASS 13.0 | 27-06-10-03 |
| ECLASS 14.0 | 27-06-10-03 |
| ROHS | Conform |
