Egenskaber

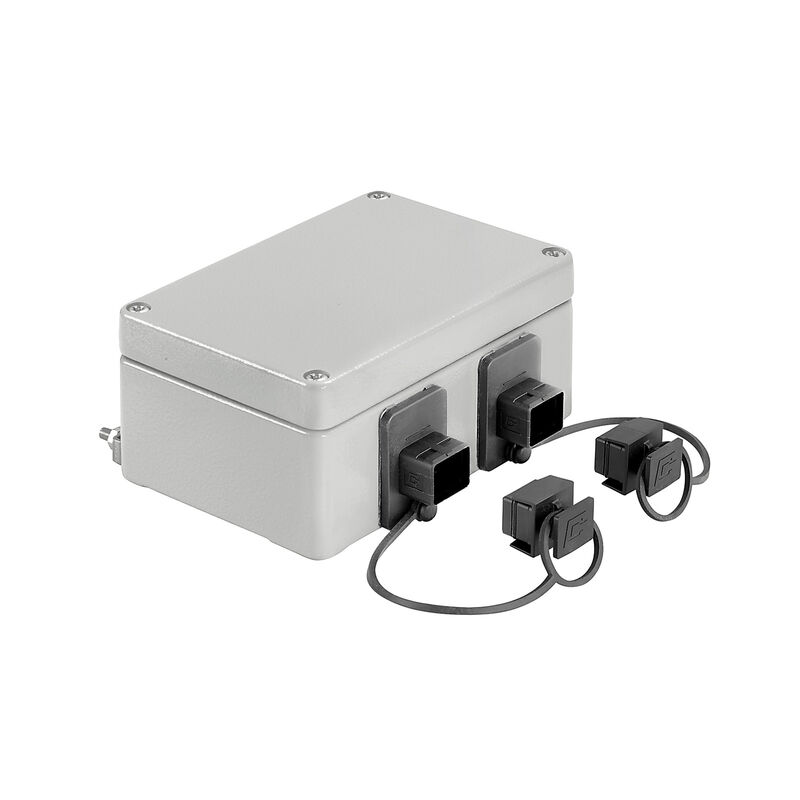

| Version | Junction box, IP67, Variant 4, 2 ports, straight |
| Order No. | 1966250000 |
| Type | IE-OM-V04P-K21-2S |
| GTIN (EAN) | 4032248658442 |
| Qty. | 1 Styk |

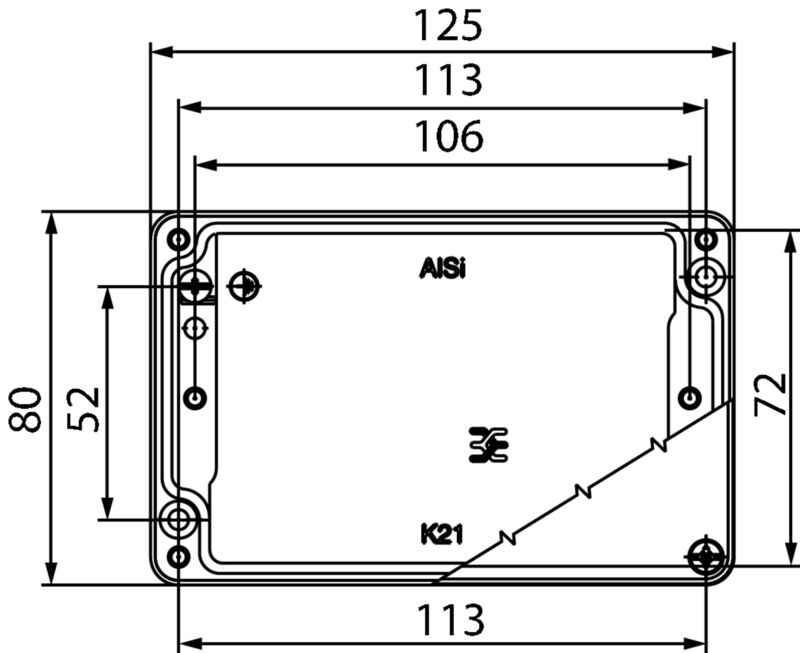

| Depth | 57 mm |
| Depth (inches) | 2,244 inch |
| Width | 136 mm |
| Width (inches) | 5,354 inch |
| Length | 125 mm |
| Length (inches) | 4,921 inch |
| Net weight | 475 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4f3aae94-c2bc-4010-b63b-5b114ba6bd55 |
| Colour | grey |
| Housing main material | AL-Si 12 |
| Plugging cycles | 750 |
| Protection degree | IP67 |
| Type of mounting |
Floor-mounted
Wall mounting |
| Connector standard | IEC 61076-3-106 Var. 4 |
| Approval/Certificate/Document of Conformity | [GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_246632) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1966250000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 7.0 | EC002597 |
| ETIM 8.0 | EC002597 |
| ETIM 9.0 | EC002597 |
| ECLASS 9.1 | 27-44-03-18 |
| ECLASS 10.0 | 27-44-03-18 |
| ECLASS 11.0 | 27-44-03-18 |
| ECLASS 12.0 | 27-44-03-18 |
| ECLASS 13.0 | 27-44-03-18 |
| ECLASS 14.0 | 27-44-03-18 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:1963180000Pakningsenhed:10 Styk
RJ45 crimp plug, Version 4, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1963160000Pakningsenhed:10 Styk
RJ45 plug, no tools required, Version 4, Cat.6A / Class EA (ISO/IEC 11801 2010)
-
Produkt ID:1963830000Pakningsenhed:10 Styk
RJ45 insert socket, Connector for base, PROFINET
-
Produkt ID:1963840000Pakningsenhed:10 Styk
RJ45 insert socket, Connector for base, TIA-568B
-
Produkt ID:1962850000Pakningsenhed:10 Styk
RJ45 insert socket, Connector for base, TIA-568A
