IE-PH-V05M
IE-PH-V05M

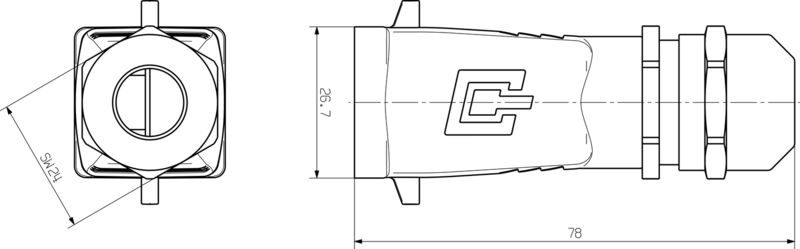

Dimensioned drawing

IE-PH-V05M

Empty enclosure, Plug housing, Variant 5 to IEC 61076-3-106, IP67

항목 번호 1962540000
데이터 시트 다운로드 Engineering Support Product Downloads
Lisävarusteet 3 On lisävaruste 1 Samankaltaiset tuotteet 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data 일반 표준 Classifications

Approvals

Schválení
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Verze
Empty enclosure, Plug housing, Variant 5 to IEC 61076-3-106, IP67
Číslo objednávky
1962540000
Tipo
IE-PH-V05M
GTIN (EAN)
4032248644674
Qty.
10 items

Dimensions and weights

Hloubka
78 mm
Depth (inches)
3,071 inch
Height
26,7 mm
Height (inches)
1,051 inch
Šířka
26,7 mm
Width (inches)
1,051 inch
Net weight
76,9 g

Temperatures

Provozní teplota
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6bI, 6c
REACH SVHC
Lead 7439-92-1
SCIP
4f3aae94-c2bc-4010-b63b-5b114ba6bd55

General data

Colour
Miscellaneous
Housing main material
diecast aluminium
Plugging cycles
750
Protection degree
IP67

일반 표준

Certificate no. (cULus)
E316369
Connector standard
IEC 61076-3-106 Var. 5

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-01-04
ECLASS 15.0
27-19-01-04
