Egenskaber

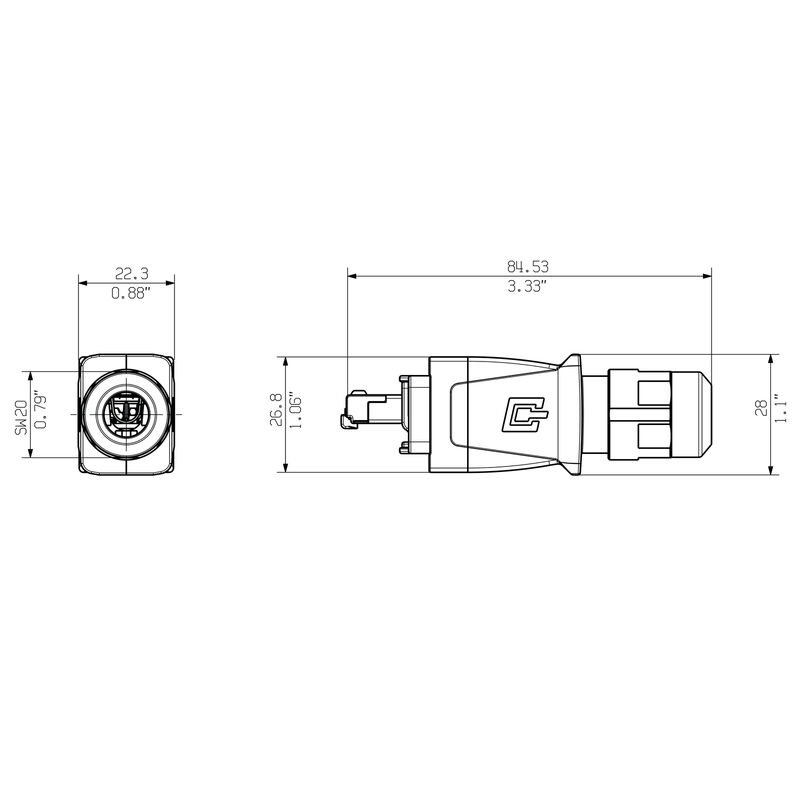

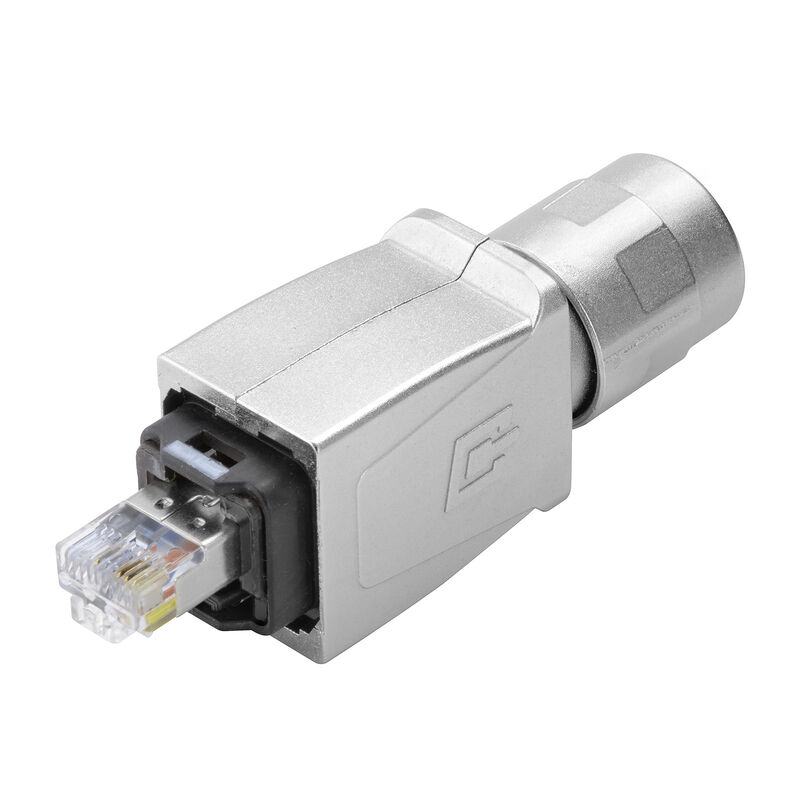

| Version | RJ45 crimp plug, Variant 14 metal, Cat.5 (ISO/IEC 11801) |
| Order No. | 2768740000 |
| Type | IE-PS-V14M-RJ45-TH-P |
| GTIN (EAN) | 4064675025108 |
| Qty. | 10 Styk |
| Net weight | 63,99 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 4f3aae94-c2bc-4010-b63b-5b114ba6bd55 |
| Connection 1 | RJ45 |
| Connection 2 | Crimp |
| Description of article | Variant 14 metal |
| Wiring | PROFINET |
| Colour | Miscellaneous |
| Housing main material | Zinc diecast |
| Insulation cross-section, min. | 1,3 mm |
| Insulation cross-section, max. | 1,6 mm |
| Category | Cat.5 (ISO/IEC 11801) |
| Contact surface | Gold over nickel |
| Connection diameter, solid | 0.57...0.64 mm |
| Conductor connection cross-section, solid (AWG) | AWG 23...AWG 22 |
| Connection diameter, flexible | 0.57...0.64 mm |
| Conductor connection cross-section, flexible (AWG) | AWG 23...AWG 22 |
| Sheath diameter, min. | 5,5 mm |
| Sheath diameter, max. | 7,5 mm |
| Shielding | 360° all-round enclosure |
| Protection degree | IP67 |
| Plugging cycles | 750 |
| Contact resistance | ≤ 10 mΩ |
| Dielectric strength, contact / contact | ≥ 1000 V AC/DC |
| Dielectric strength, contact / shield | ≥ 1500 V AC/DC |
| PoE / PoE+ | conforming to IEEE 802.3af |
| Certificate no. (cULus) | E316369 |
| Connector standard |
IEC 60603-7
IEC 61076-3-117 Var. 14 |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_225221) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2768740000) |
| User Documentation | [Montageanleitung](https://mdcop.weidmueller.com/mediadelivery/asset/900_244586) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E316369 |
