Egenskaber

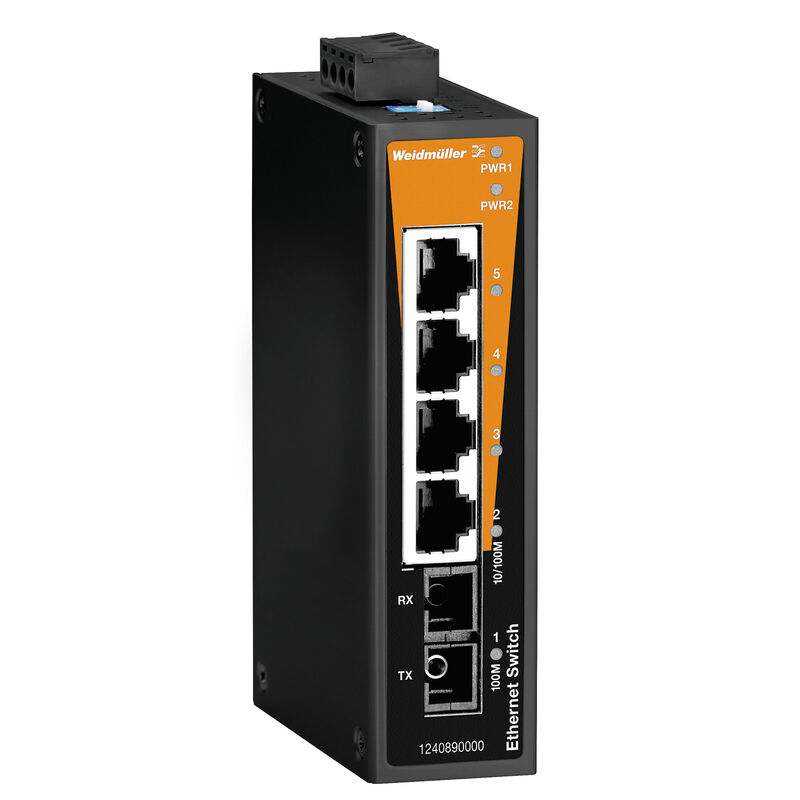

| Version | Network switch, unmanaged, Fast Ethernet, Number of ports: 4 x RJ45, 1 * SC Single-mode, IP30, -40 °C...75 °C |
| Order No. | 1286530000 |
| Type | IE-SW-BL05T-4TX-1SCS |
| GTIN (EAN) | 4050118077230 |
| Qty. | 1 Styk |
| Depth | 70 mm |
| Depth (inches) | 2,756 inch |
| Height | 115 mm |
| Height (inches) | 4,528 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Net weight | 175 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...75 °C |
| Humidity | 5 to 95 % (non-condensing) |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9229992a-00b9-4096-8962-200a7f33e289 |
| Highest speed | Fast Ethernet |
| Input voltage type | DC |
| Mounting type | DIN- Rail |
| Type of switch | Unmanaged |
| EMC standards |
EN 55032
EN 55035 FCC Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz - 6 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 100A/m |
| Explosive risk zone |
UL/cUL, Class I, Division 2, Groups A, B, C and D
ATEX Zone 2 Ex nA IIC T4 Gc |
| Free fall | According to IEC 60068-2-32 |
| Safety standard | UL508 |
| Ship use | DNV |
| Shock | according to IEC 60068-2-27 |
| Vibration | according to IEC 60068-2-6 |
| Humidity | 5 to 95 % (non-condensing) |
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Transmission rate | 100 Mbps |
| Transceiver type | Singlemode |
| Connector type | SC-Duplex |
| Transmission distance, typ. | 40 km |
| Wavelength |
|
| Receive power |
|
| Transmission power |
|
| Link-budget | 29 dB |
| Note | When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power. |
| Time interval | 5 years |
| Fibre-optic ports |
100BaseFX ports (SC connector)
Singlemode |
| Function DIP switch | 1x for enabling/disabling the broadcast storm protection |
| LED indicator |
PWR1
PWR2 10/100M (TP-Port) 100M (fibre-optic port). |
| Number of ports |
4 x RJ45
1 * SC Single-mode |
| RJ45 ports |
10/100BaseT(X)
auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port |
| MTBF |
|
| Connection type | 1 removable 4-pin terminal block |
| Current consumption | 0.11 A at 24 V |
| Overload current protection | 1.1 A |
| Reverse polarity protection | Available |
| Voltage supply |
12/24/48 V DC
2 redundant inputs |
| Voltage supply range |
|
| Bandwidth backplane | 1 Gbit/s |
| MAC table size | 1 K |
| Packet buffer size | 448 kBit |
| Housing main material | Aluminium |
| Protection degree | IP30 |
| Speed | Fast Ethernet |
| Switch | unmanaged |
| Type of mounting |
DIN rail
Panel (with optional mounting kit) |
| Data switching | Store and Forward |
| Flow control |
IEEE 802.3x flow control
Back pressure flow control |
| Standard |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| Approval/Certificate/Document of Conformity |
[ATEX certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_82218)
[KC certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_96949) [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35422) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_289042) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_103249) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1286530000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1286530000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1286530000&norm=0) |
| Product Change Notification | [Product Change Notification IE-SW-BL05-series](https://mdcop.weidmueller.com/mediadelivery/asset/900_73940) |
| User Documentation | [Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_35421) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000734 |
| ETIM 7.0 | EC000734 |
| ETIM 8.0 | EC000734 |
| ETIM 9.0 | EC000734 |
| ECLASS 9.0 | 19-17-01-06 |
| ECLASS 9.1 | 19-17-01-06 |
| ECLASS 10.0 | 19-17-04-02 |
| ECLASS 11.0 | 19-17-04-02 |
| ECLASS 12.0 | 19-17-04-02 |
| ECLASS 13.0 | 19-17-04-02 |
| Approvals |        |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
