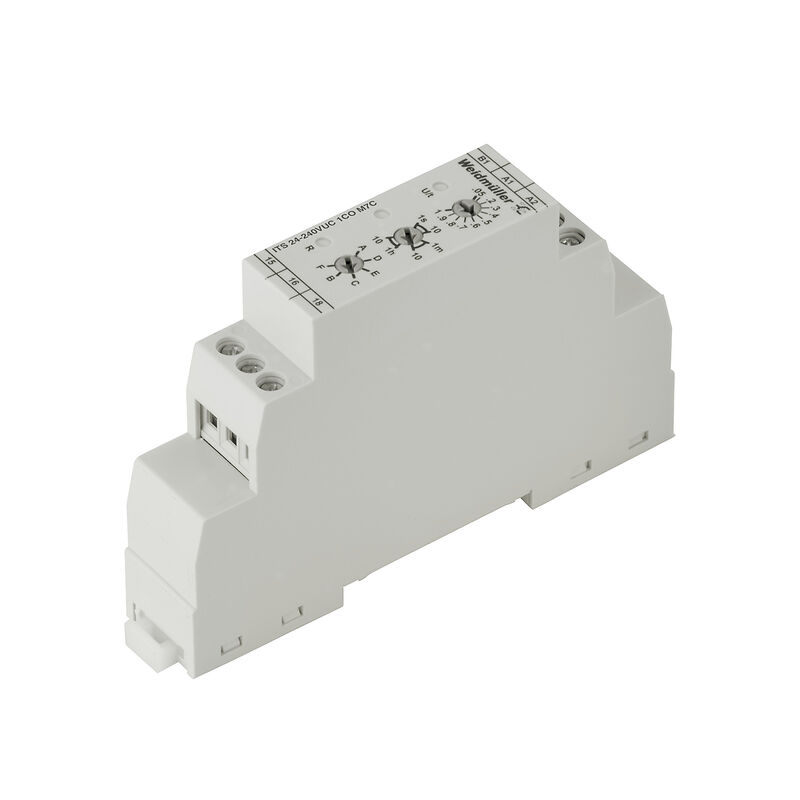

ITS 24-240VUC M7C PU10
IT TIMER, Multifunction timing relay, with separate control input, Number of contacts: 1, CO contact, AgNi, Rated control voltage: 24...48 V DC, 24...230 V AC, Continuous current: 5 A, Screw connection
Produkt ID
2545120000
Egenskaber
| Version | IT TIMER, Multifunction timing relay, with separate control input, Number of contacts: 1, CO contact, AgNi, Rated control voltage: 24...48 V DC, 24...230 V AC, Continuous current: 5 A, Screw connection |
| Order No. | 2545120000 |
| Type | ITS 24-240VUC M7C PU10 |
| GTIN (EAN) | 4050118555066 |
| Qty. | 10 Styk |
| Depth | 57,9 mm |
| Depth (inches) | 2,28 inch |
| Height | 98 mm |
| Height (inches) | 3,858 inch |
| Width | 17,5 mm |
| Width (inches) | 0,689 inch |
| Net weight | 48,2 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -25 °C...50 °C |
| Humidity | 25 - 75%, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated control voltage |
24...48 V DC
24...230 V AC |
| Power rating |
8 VA @ 230 V AC
0.4 W at 24 V DC |

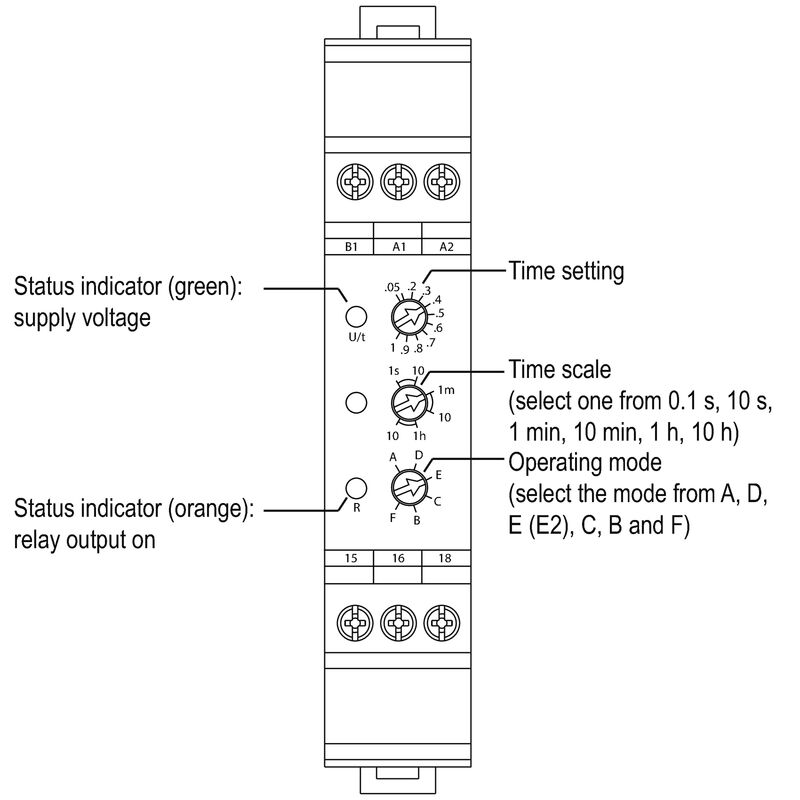

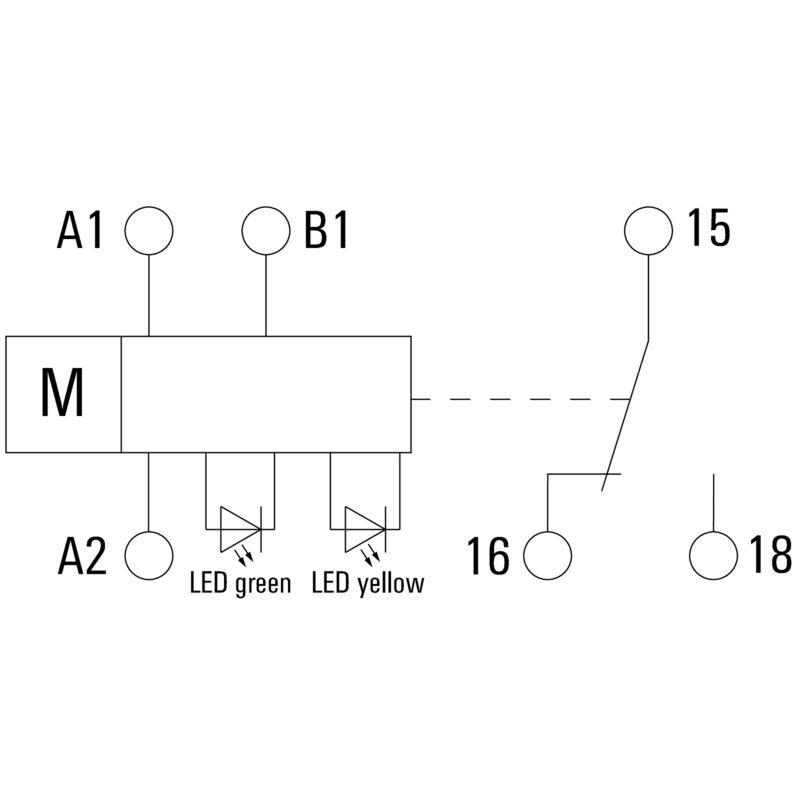

| Status indicator |
LED green (U/t): flashes when time runs, lights permanently with supply voltage applied
LED yellow (R): relay closed |

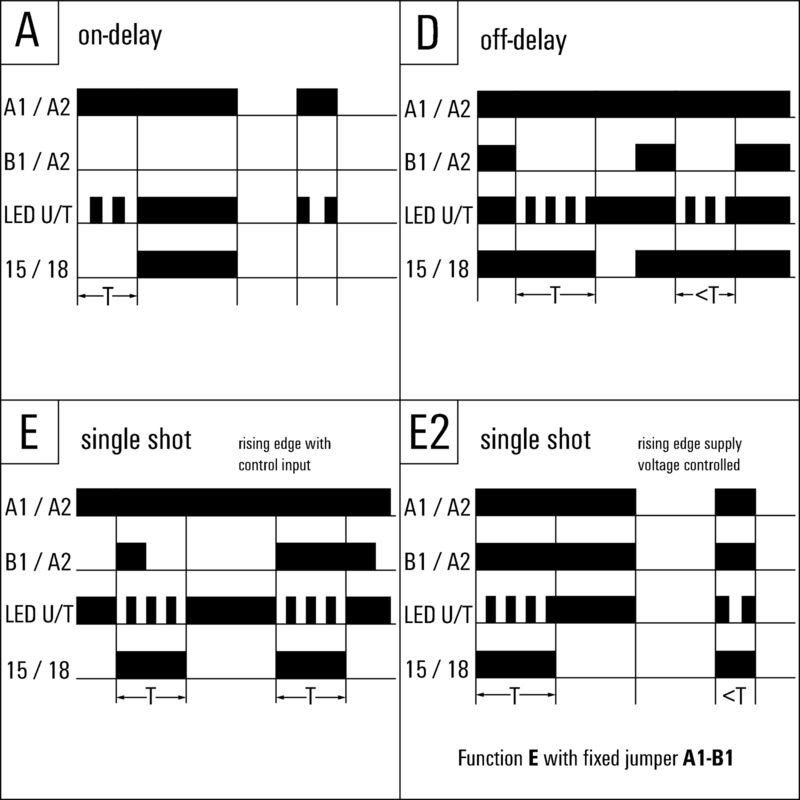

| Time ranges |
0.05 s - 1 s
0.5 s - 10 s 3 s - 60 s 0.5 min - 10 min 3 min - 1 h 0.5 h - 10 h |
| Setting tolerance | 5 % |
| Max. reset time after voltage interruption | 100 ms |
| Basic accuracy |
±6% (of scale-end value, for time range 0.05 s - 1 s)
±1.5% (of scale-end value, for all other time ranges) |
| Min. pulse duration | 50 ms |
| Repeat accuracy | <0.5 % or ±5 ms |
| Rated switching voltage | 250 V AC |
| Continuous current | 5 A |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 30 V |
| Min. switching power |
10 mA @ 12 V
100 mA @ 5 V |
| AC switching capacity (resistive), max. | 1250 VA |
| DC switching capacity (resistive), max. | 90 W |
| Contact type | 1 CO contact (AgNi) |
| Mechanical service life | 1 x 106 switching cycles |
| Design | Installation housing; 1TE |
| Suitable for front mounting | No |
| Version | with separate control input |
| Rail | TS 35 |
| Test button available | No |
| Mechanical switch position indicator | No |
| Resistance to vibration EN 61812-1 |
10 Hz...60 Hz: 0.15 mm
60 Hz...150 Hz: 2 g |
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | II |
| Clearance and creepage distances for control side - load side | ≥ 1.5 mm |
| Dielectric strength for control side - load side | 1.6 kV |
| Impulse withstand voltage | 2.5 kV |
| Protection degree | IP20 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 7 mm |
| Tightening torque, max. | 0,5 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,25 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 23 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0,25 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,25 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2,5 mm² |
| Blade size | size PH1 |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_40531) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66367) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2545120000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2545120000) |
| User Documentation |
[Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_40530)
[Beschreibung der Zeitfunktionen - Deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_97427) [Declaration of timing functions - English](https://mdcop.weidmueller.com/mediadelivery/asset/900_97448) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001439 |
| ETIM 7.0 | EC001439 |
| ETIM 8.0 | EC001439 |
| ETIM 9.0 | EC001439 |
| ECLASS 9.0 | 27-37-16-05 |
| ECLASS 9.1 | 27-37-16-05 |
| ECLASS 10.0 | 27-37-16-05 |
| ECLASS 11.0 | 27-37-16-05 |
| ECLASS 12.0 | 27-37-16-05 |
| ECLASS 13.0 | 27-37-16-05 |
| ECLASS 14.0 | 27-37-16-05 |
| Approvals |   |
| ROHS | Conform |
