KLIPPON K6 MOPL 1620 MSZN

KLIPPON K6 MOPL 1620 MSZN

Klippon K (aluminium empty enclosure), Empty enclosure, straight, Height: 140 mm, Width: 182 mm, Depth: 1.5 mm, Basic material: Sheet steel, galvanized, silver

Produkt ID 8000188277
Download datablad Engineering-support Produktdownloads
Anvendte produkter 37
General ordering data Dimensions and weights Certificate numbers enclosure General information General information on accessories Classifications

General ordering data

Version
Klippon K (aluminium empty enclosure), Empty enclosure, straight, Height: 140 mm, Width: 182 mm, Depth: 1.5 mm, Basic material: Sheet steel, galvanized, silver
Order No.
8000188277
Type
KLIPPON K6 MOPL 1620 MSZN
GTIN (EAN)
4069165062366
Qty.
1 Styk

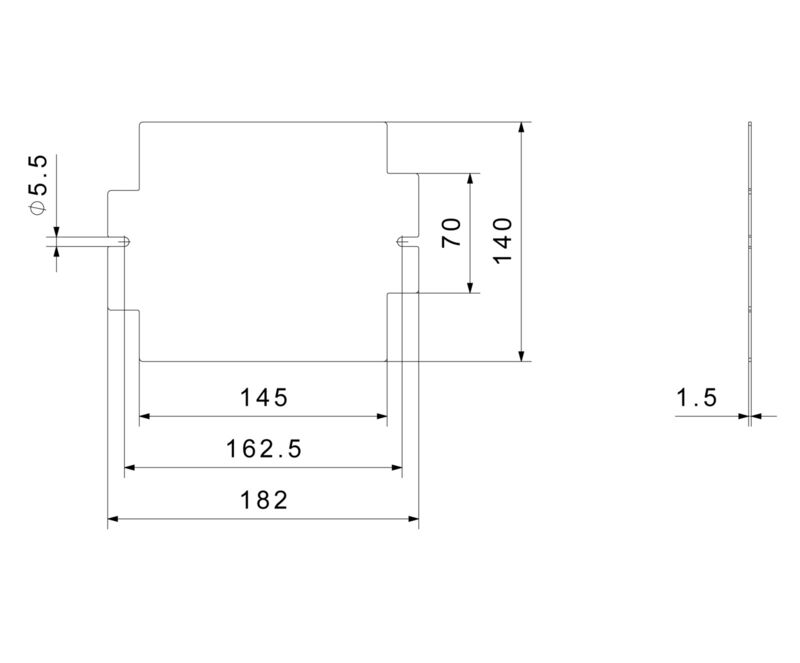

Dimensions and weights

Depth
1,5 mm
Depth (inches)
0,059 inch
Height
140 mm
Height (inches)
5,512 inch
Width
182 mm
Width (inches)
7,165 inch
Net weight
267,9 g

Certificate numbers enclosure

Declaration of Conformatiy No. (DoC LVD)
DE PS2410 160412 001ISS03

General information

Areas of use
Building systems and technology
Explosive risk zone
Process industry
Transportation
Basic material
Sheet steel
Installation advice
Mounting plate
Material thickness
1,5 mm
Surface finish
galvanized

General information on accessories

Basic material
Sheet steel
Material thickness
1,5 mm
Solder eyelet hole diameter (D)
7 mm
Surface finish
galvanized

Classifications

ETIM 8.0
EC000213
ETIM 9.0
EC000213
ETIM 10.0
EC000213
ECLASS 14.0
27-40-06-39
ECLASS 15.0
27-40-06-39
