Egenskaber

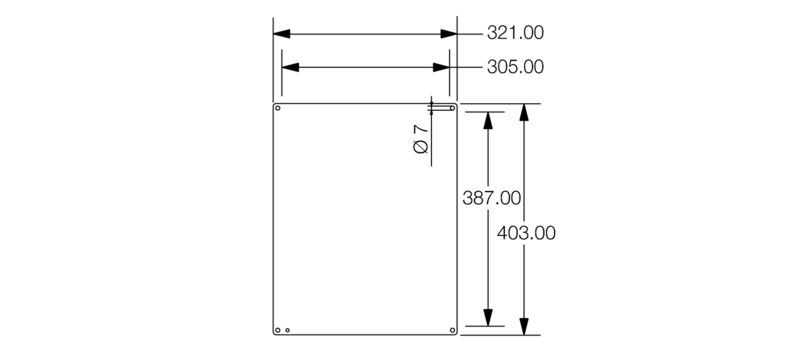

| Version | Klippon TB (Terminal Box), Mounting plate, Height: 403 mm, Width: 321 mm, Depth: 1.5 mm, Material: Stainless steel 1.4301 (304), untreated, silver |
| Order No. | 1193860000 |
| Type | KTB MOPL 4538 S2N |
| GTIN (EAN) | 4050118028461 |
| Qty. | 1 Styk |
| Depth | 1,5 mm |
| Depth (inches) | 0,059 inch |
| Height | 403 mm |
| Height (inches) | 15,866 inch |
| Width | 321 mm |
| Width (inches) | 12,638 inch |
| Net weight | 1.530 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Stainless steel 1.4301 (304) |
| Material thickness | 1,5 mm |
| Surface finish | untreated |
| Material | Stainless steel 1.4301 (304) |
| Material thickness | 1,5 mm |
| Solder eyelet hole diameter (D) | 7 mm |
| Surface finish | untreated |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_70190) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1193860000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1193860000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ROHS | Conform |
