Egenskaber

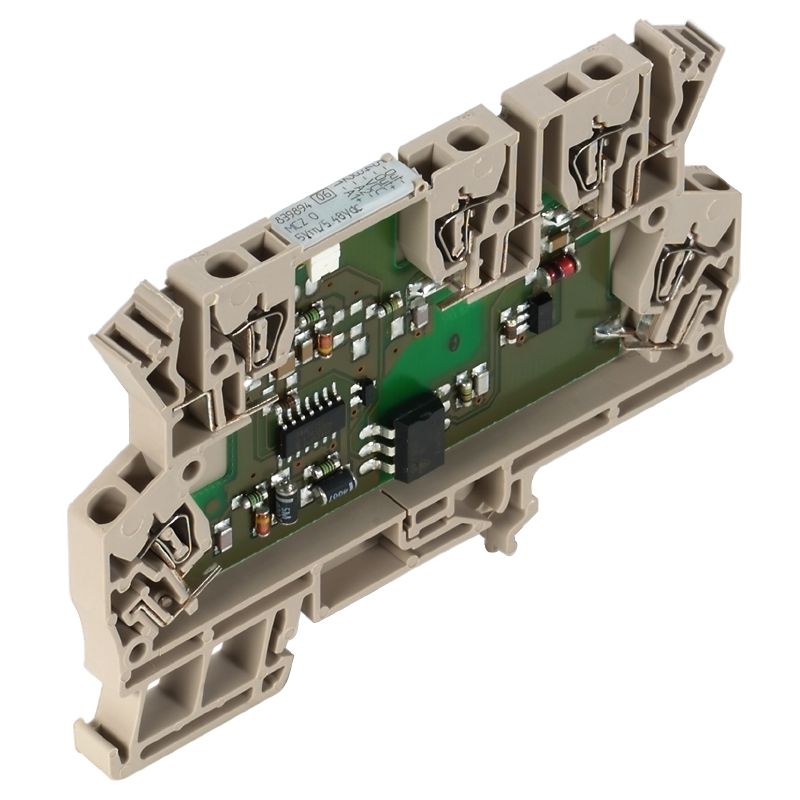

| Version | MCZ SERIES, Solid-state relay, Rated control voltage: 24 V UC ±20 % , Rated switching voltage: 24 VDC ±20%, Continuous current: 2 A, Tension-clamp connection |
| Order No. | 8287730000 |
| Type | MCZ O 24VUC |
| GTIN (EAN) | 4008190985400 |
| Qty. | 10 Styk |
| Depth | 63,2 mm |
| Depth (inches) | 2,488 inch |
| Height | 91 mm |
| Height (inches) | 3,583 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 22,6 g |
| Storage temperature | -40 °C...60 °C |
| Operating temperature | -25 °C...40 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| MTTF | 1.430 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | 35d83707-6a3b-45b5-b9f8-6ba8184c863e |
| Certificate No. (cURus) | E141197 |
| Rated control voltage | 24 V UC ±20 % |
| Nominal control current |
10 mA DC ±20 %
10 mA AC ±20 % |
| Power rating | 195 mW / 220 mVA |
| Status indicator | LED |
| Protective circuit | Rectifier |
| Input frequency | AC: 10 Hz / DC: 30 Hz |
| Rated switching voltage | 24 VDC ±20% |
| Continuous current | 2 A |
| Switch-on delay | ≤ 10 ms |
| Switch-off delay | ≤ 10 ms |
| Voltage drop at max. load | ≤ 1.8 V |
| Short-circuit-proof | Yes |
| Protective circuit, load side | Varistor |
| Contact type | 1 NO contact (Transistor) |
| max. switching frequency (AC control voltage) | 10 Hz |
| max. switching frequency (DC control voltage) | 30 Hz |
| Nominal auxiliary voltage | 24 V DC ± 20 % |
| Rail | TS 35 |
| Test button available | No |
| Colour | beige |
| UL94 flammability rating component |
|
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 5.5 mm |
| Dielectric strength for control side - load side | 1 kVeff / 1 s |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (CSA) | 154685-1198742 |
| Certificate No. (cURus) | E141197 |
| Wire connection method | Tension-clamp connection |
| Stripping length, rated connection | 8 mm |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 1,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35818) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55024) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8287730000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8287730000) |
| User Documentation | [Device description -- Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_35714) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001504 |
| ETIM 7.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| ETIM 9.0 | EC001504 |
| ECLASS 9.0 | 27-37-16-04 |
| ECLASS 9.1 | 27-37-16-04 |
| ECLASS 10.0 | 27-37-16-04 |
| ECLASS 11.0 | 27-37-16-04 |
| ECLASS 12.0 | 27-37-16-04 |
| ECLASS 13.0 | 27-37-16-04 |
| ECLASS 14.0 | 27-37-16-04 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E141197 |
