Egenskaber

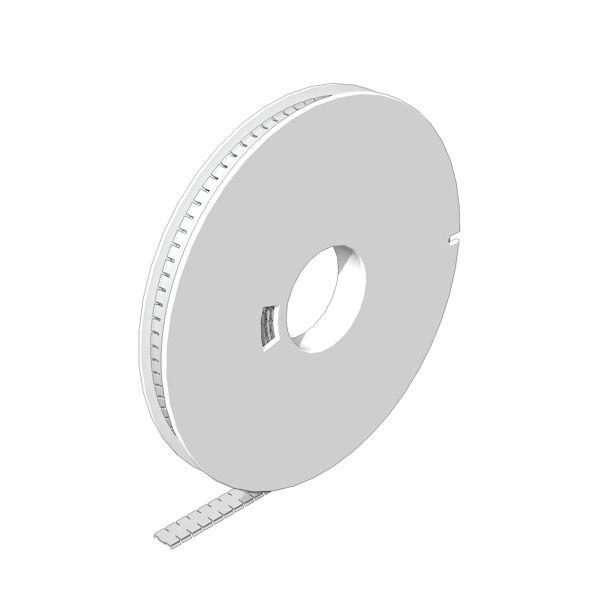

| Version | Terminal marker, 9 x 5 mm, white |
| Order No. | 2519230000 |
| Type | MF-W 9/5 MM WS |
| GTIN (EAN) | 4050118531459 |
| Qty. | 1.200 Styk |
| Depth | 0,7 mm |
| Depth (inches) | 0,028 inch |
| Height | 9 mm |
| Height (inches) | 0,354 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 0,01 g |
| Operating temperature range | -50...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material |
PC-ABS
TPU |
| Operating temperature range | -50...90 °C |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -50 °C |
| Printed characters | neutral |
| UL 94 flammability rating | V-2 |
| Version | halogen-free |
| Width | 5 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2519230000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
