Egenskaber

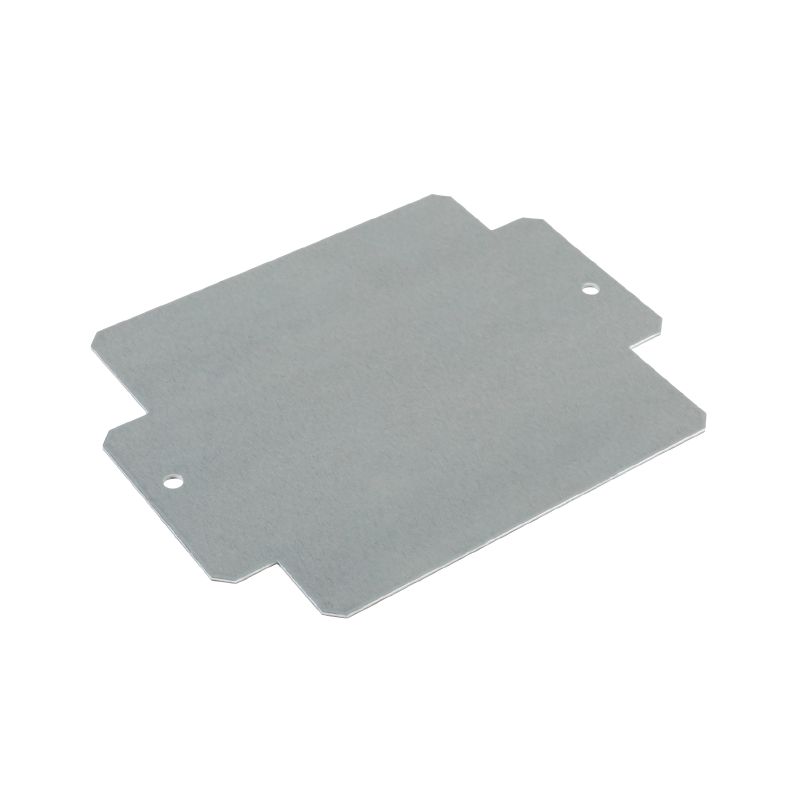

| Version | Klippon K (aluminium empty enclosure), Mounting plate, Mounting plate, Height: 145 mm, Width: 183 mm, Depth: 2 mm, Material: Sheet steel, galvanized, galvanized, silver |
| Order No. | 3073110000 |
| Type | MOPL K6 STAHL |
| GTIN (EAN) | 4008190858049 |
| Qty. | 1 Styk |
| Depth | 2 mm |
| Depth (inches) | 0,079 inch |
| Height | 145 mm |
| Height (inches) | 5,709 inch |
| Width | 183 mm |
| Width (inches) | 7,205 inch |
| Mounting dimension - height | 72,5 mm |
| Mounting dimension - width | 162 mm |
| Net weight | 357 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Sheet steel, galvanized |
| Material thickness | 2 mm |
| Surface finish | galvanized |
| Type of fixing | when screwed in |
| Material | Sheet steel, galvanized |
| Material thickness | 2 mm |
| Mounting dimension - height | 72,5 mm |
| Mounting dimension - width | 162 mm |
| Surface finish | galvanized |
| Type of fixing | when screwed in |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.3073110000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:8000003903Pakningsenhed:20 Styk
Rail, TS 35, TS 35 x 7.5, Width: 172 mm, without slot, Steel, galvanized, chromium-plated
Er tilbehør til
-
Produkt ID:9526960000Pakningsenhed:1 Styk
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 200 mm, Depth: 100 mm, Material: Aluminium AlSi12, untreated, silver
-
Produkt ID:1937870000Pakningsenhed:1 Styk
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 200 mm, Depth: 100 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey
-
Produkt ID:1329740000Pakningsenhed:1 Styk
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 200 mm, Depth: 100 mm, Material: Aluminium AlSi12, Powder-coated, Silver grey
-
Produkt ID:0342500000Pakningsenhed:1 Styk
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 200 mm, Depth: 100 mm, Material: Aluminium AlSi12, untreated, silver
-
Produkt ID:9529240000Pakningsenhed:1 Styk
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 200 mm, Depth: 100 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey
-
Produkt ID:1939690000Pakningsenhed:1 Styk
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 200 mm, Depth: 100 mm, Material: Aluminium AlSi12, untreated, silver
