Egenskaber

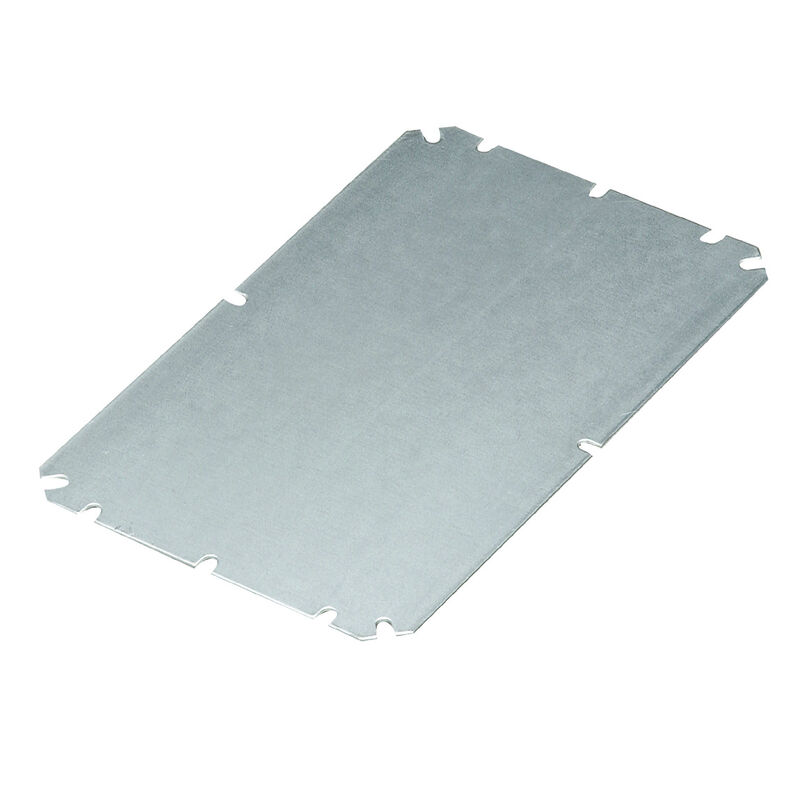

Version | FPC (polycarbonate empty enclosure), Mounting plate, Mounting plate, Height: 200 mm, Width: 300 mm, Depth: 1.5 mm, Material: Sheet steel, galvanized, silver |
Order No. | 9535930000 |
Type | MP FPC 20/30 |
GTIN (EAN) | 4032248009657 |
Qty. | 1 Styk |
Depth | 1,5 mm |
Depth (inches) | 0,059 inch |
Height | 200 mm |
Height (inches) | 7,874 inch |
Width | 300 mm |
Width (inches) | 11,811 inch |
Net weight | 468 g |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | No SVHC above 0.1 wt% |
Material | Sheet steel |
Surface finish | galvanized |
Type of fixing | when screwed in |
Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_76951) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9535930000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9535930000) |
Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC000213 |
ETIM 7.0 | EC000213 |
ETIM 8.0 | EC000213 |
ETIM 9.0 | EC000213 |
ECLASS 9.0 | 27-40-06-39 |
ECLASS 9.1 | 27-18-92-90 |
ECLASS 10.0 | 27-40-06-39 |
ECLASS 11.0 | 27-40-06-39 |
ECLASS 12.0 | 27-40-06-39 |
ECLASS 13.0 | 27-40-06-39 |
ECLASS 14.0 | 27-40-06-39 |
ROHS | Conform |
Tilbehør
-
Produkt ID:8000037604Pakningsenhed:20 Styk
Rail, TS 15, Width: 235 mm, without slot, Steel, galvanized, chromium-plated
-
Produkt ID:8000037559Pakningsenhed:20 Styk
Rail, TS 35, TS 35 x 7.5, Width: 265 mm, with slot, without slot, Steel, galvanized, chromium-plated
-
Produkt ID:8000037558Pakningsenhed:20 Styk
Rail, TS 35, TS 35 x 7.5, Width: 165 mm, with slot, without slot, Steel, galvanized, chromium-plated
Enclosure Systems and ComponentsPlastic enclosuresFPC and MPC seriesAccessories - FPC and MPCTerminal railsTS 15
Enclosure Systems and ComponentsPlastic enclosuresFPC and MPC seriesAccessories - FPC and MPCTerminal railsTS 35
Er tilbehør til
-
Produkt ID:9535710000Pakningsenhed:1 Styk
FPC (polycarbonate empty enclosure), Empty enclosure, Height: 200 mm, Width: 300 mm, Depth: 132 mm, Material: Polycarbonate, untreated, Light Grey
-
Produkt ID:9535700000Pakningsenhed:1 Styk
FPC (polycarbonate empty enclosure), Empty enclosure, Height: 200 mm, Width: 300 mm, Depth: 132 mm, Material: Polycarbonate, untreated, Light Grey, Transparent
Enclosure Systems and ComponentsPlastic enclosuresFPC and MPC seriesFPC 200 x 300 x 130 mm
