Egenskaber

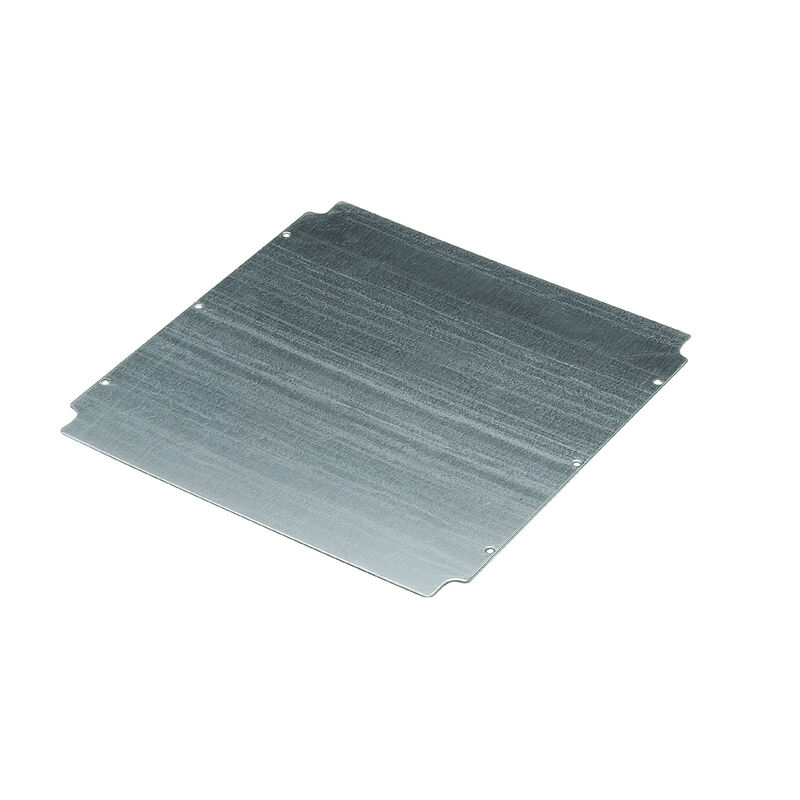

| Version | Klippon POK (polyester empty enclosure), Mounting plate, Height: 389 mm, Width: 383 mm, Depth: 1.5 mm, Material: Sheet steel, galvanized, Miscellaneous, silver |
| Order No. | 9510670000 |
| Type | POK MOPL 4040 |
| GTIN (EAN) | 4008190498313 |
| Qty. | 1 Styk |
| Depth | 1,5 mm |
| Depth (inches) | 0,059 inch |
| Height | 389 mm |
| Height (inches) | 15,315 inch |
| Width | 383 mm |
| Width (inches) | 15,079 inch |
| Mounting dimension - height | 250 mm |
| Mounting dimension - width | 372 mm |
| Net weight | 1.770 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Sheet steel, galvanized |
| Material thickness | 1,5 mm |
| Surface finish | Miscellaneous |
| Type of fixing | when screwed in |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66838) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9510670000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9510670000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:8000003913Pakningsenhed:20 Styk
Rail, TS 35, TS 35 x 7.5, Width: 384 mm, without slot, Steel, galvanic zinc plated and passivated
Enclosure Systems and ComponentsPlastic enclosuresKlippon® POKAccessories - Klippon® POKKlippon® POK terminal railsTS 35Depth 7.5 mm
Er tilbehør til
-
Produkt ID:1306150000Pakningsenhed:1 Styk
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 405 mm, Width: 400 mm, Depth: 120 mm, Material: Glass fibre-reinforced polyester, untreated, polished, black
-
Produkt ID:1305970000Pakningsenhed:1 Styk
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 405 mm, Width: 400 mm, Depth: 120 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey
Enclosure Systems and ComponentsPlastic enclosuresKlippon® POKKlippon® POK 404012 - 405 x 400 x 120 mm
