Egenskaber
| Version | Tools, Automatic stripper |
| Order No. | 9028510000 |

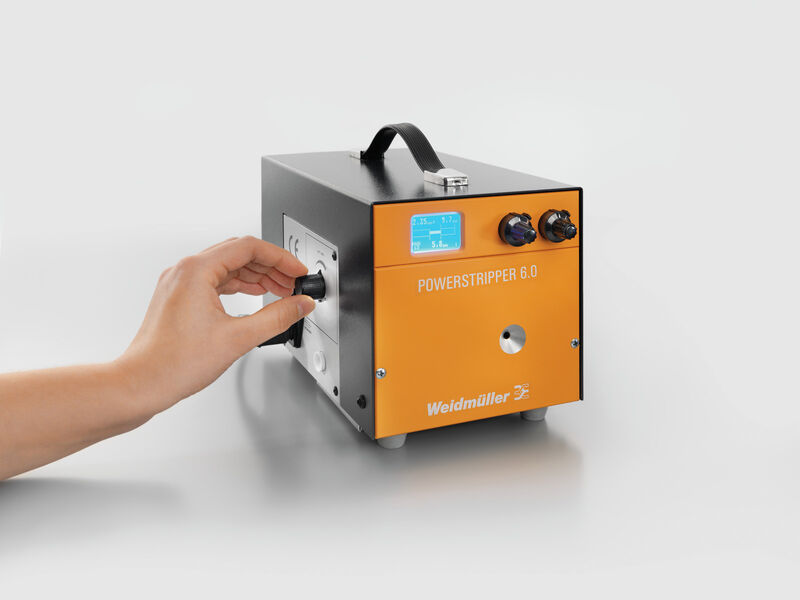

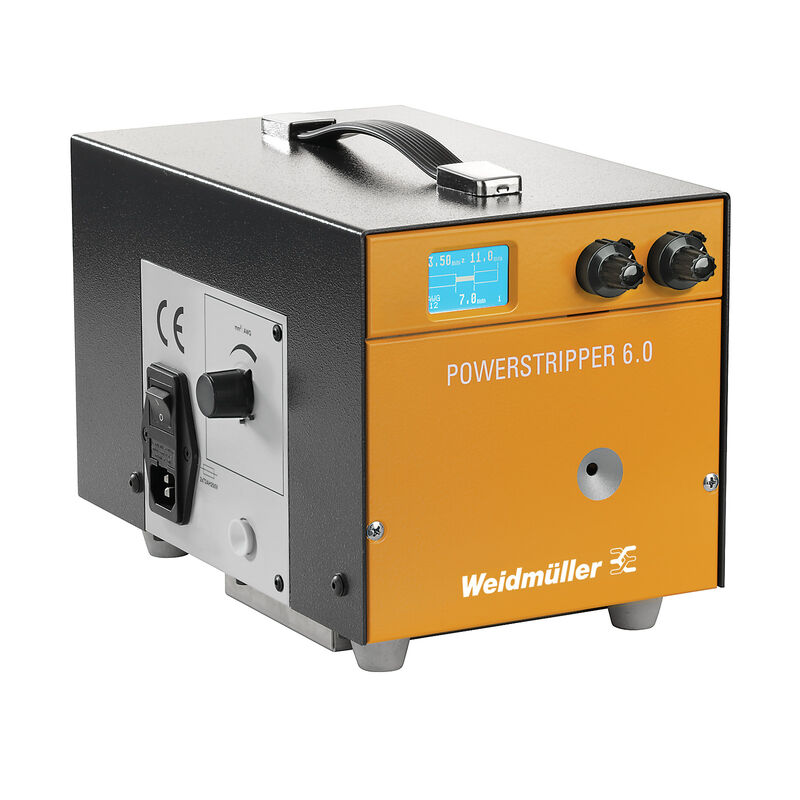

| Type | POWERSTRIPPER 6,0 |
| GTIN (EAN) | 4008190860752 |
| Qty. | 1 Styk |
| Depth | 295 mm |
| Depth (inches) | 11,614 inch |
| Height | 190 mm |
| Height (inches) | 7,48 inch |
| Width | 190 mm |
| Width (inches) | 7,48 inch |
| Net weight | 8.962 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d2df479e-2b79-4e98-adc7-b03577df98ae |
| Conductor length, min. | 22 mm + stripping length |
| Connection values | 46 VA |
| Drive | electrical |
| Electrical connection | 100-240 V / 50/60 Hz / 70 VA |
| Outer diameter of conductor |
|
| Pull-off length | 3-20 mm |
| Pulse time | approx. 0.5 s |
| Stripping range | 0.05 - 6.0 mm² (~AWG 30-10) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9028510000&norm=0) |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_72242) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002778 |
| ETIM 7.0 | EC002778 |
| ETIM 8.0 | EC002778 |
| ETIM 9.0 | EC002778 |
| ECLASS 9.0 | 17-13-01-01 |
| ECLASS 9.1 | 17-13-01-02 |
| ECLASS 10.0 | 17-13-01-02 |
| ECLASS 11.0 | 17-13-01-01 |
| ECLASS 12.0 | 17-13-01-01 |
| ECLASS 13.0 | 17-13-01-01 |
| Approvals |  |
| ROHS | Conform |
Tilbehør
Automatic MachinesStripping machineAccessories / replacement parts
