Egenskaber

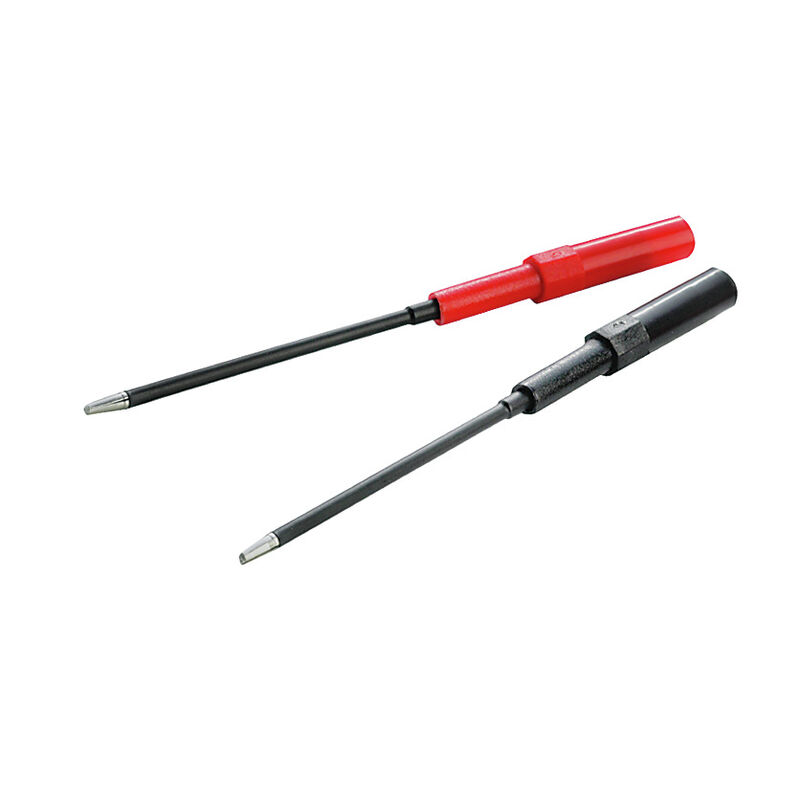

| Version | Test adapter (terminal), 1000 V, 20 A |
| Order No. | 1121740000 |
| Type | PS_ZQV |
| GTIN (EAN) | 4032248902675 |
| Qty. | 1 Styk |
| Height | 94 mm |
| Height (inches) | 3,701 inch |
| Diameter | 4 mm |
| Net weight | 15 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 8d191f1d-272c-40a1-8319-7de6fe5d9746 |
| Colour | red |
| Version | Test plug |
| Type of mounting | Plugged |
| With snap-in pegs | No |
| Type of connection | Plug-in connection |
| Diameter | 4 mm |
| Pitch in mm (P) | 5,4 mm |
| Number of poles | 1 |
| Rated voltage | 1.000 V |
| Max. voltage of clamp support & pluggable system | 1.000 V |
| Rated current | 20 A |
| Current at maximum wires | 20 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60440) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1121740000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1121740000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002555 |
| ETIM 7.0 | EC002555 |
| ETIM 8.0 | EC002555 |
| ETIM 9.0 | EC002555 |
| ECLASS 9.0 | 27-14-11-48 |
| ECLASS 9.1 | 27-14-11-48 |
| ECLASS 10.0 | 27-14-11-48 |
| ECLASS 11.0 | 27-14-11-48 |
| ECLASS 12.0 | 27-14-11-48 |
| ECLASS 13.0 | 27-25-03-04 |
| ECLASS 14.0 | 27-25-03-04 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1041100000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1067960000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, green, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1067950000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, brown, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1068010000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, red, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1067940000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, black, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:2732600000Pakningsenhed:50 Styk
Multi-tier modular terminal, Screw connection, orange, 2.5 mm², 400 V, 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1067990000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, orange, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1068040000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, yellow, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1041180000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, blue, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:2739610000Pakningsenhed:50 Styk
Multi-tier modular terminal, Screw connection, blue, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1067970000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, grey, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1068030000Pakningsenhed:100 Styk
Multi-tier modular terminal, Screw connection, white, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:2739600000Pakningsenhed:50 Styk
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1023200000Pakningsenhed:100 Styk
Component terminal block, Screw connection, dark beige, 2.5 mm², 400 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
