Egenskaber

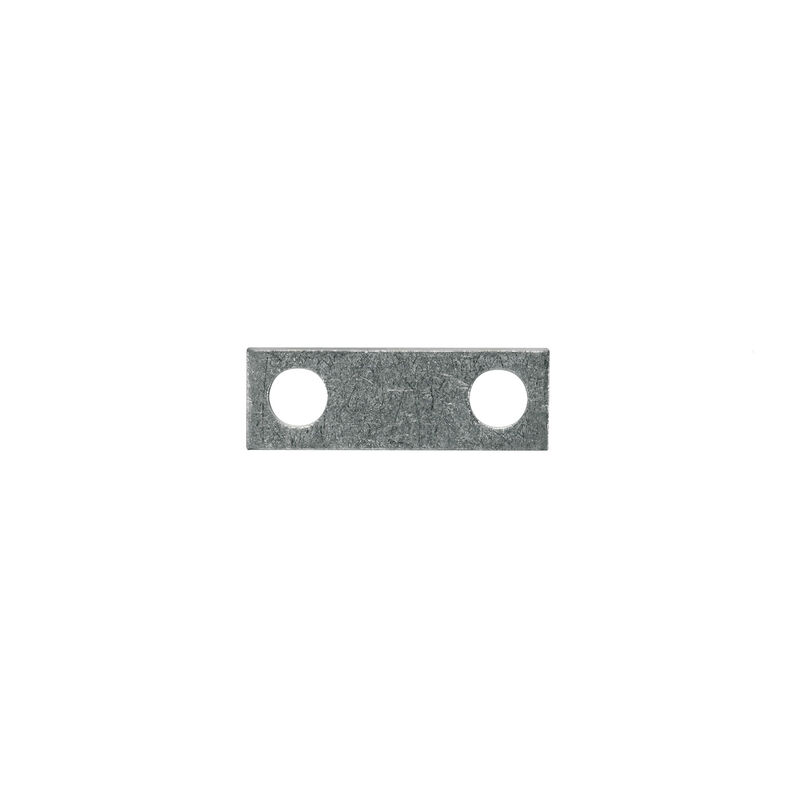

| Version | Cross-connector (terminal), when screwed in, grey, 99 A, Number of poles: 2, Pitch in mm (P): 8.00, Insulated: No, Width: 24.2 mm |
| Order No. | 0564900000 |
| Type | QL 2 SAK35N |
| GTIN (EAN) | 4008190099282 |
| Qty. | 50 Styk |
| Depth | 3 mm |
| Depth (inches) | 0,118 inch |
| Height | 8 mm |
| Height (inches) | 0,315 inch |
| Width | 24,2 mm |
| Width (inches) | 0,953 inch |
| Net weight | 4,04 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Cu Zn |
| Colour | grey |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 2 |
| Rated current, 2-pole | 110 A |
| Rated current, multi-pole | 99 A |
| Type | Cross-connector |
| Pitch in mm (P) | 8 mm |
| Installation advice | Direct mounting |
| Number of poles | 2 |
| Rated current | 99 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59214) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0564900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0564900000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:0267100000Pakningsenhed:50 Styk
Mounting screw (Terminal), 4.00 mm, Steel, Depth: 7 mm, Width: 7 mm, Height: 30 mm
-
-
Produkt ID:0267000000Pakningsenhed:50 Styk
Connecting sleeve (terminal), when screwed in, Width: 8 mm, Height: 8 mm, Depth: 17 mm, Number of poles: 1, Cu Zn
Terminal BlocksAccessoriesMounting supportScrews
Terminal BlocksAccessoriesMounting supportMiscellaneous
Terminal BlocksAccessoriesCross-connectionsSAK-SeriesConnection sleeves
Er tilbehør til
-
Produkt ID:0550660000Pakningsenhed:20 Styk
Feed-through terminal block, Screw connection, beige / yellow, 35 mm², 125 A, 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66, 100 °C
Terminal BlocksUniversal rangeClamping yoke technologySAK-SeriesTS 32Feed-through terminal blocks1-tier35 mm²
