Egenskaber

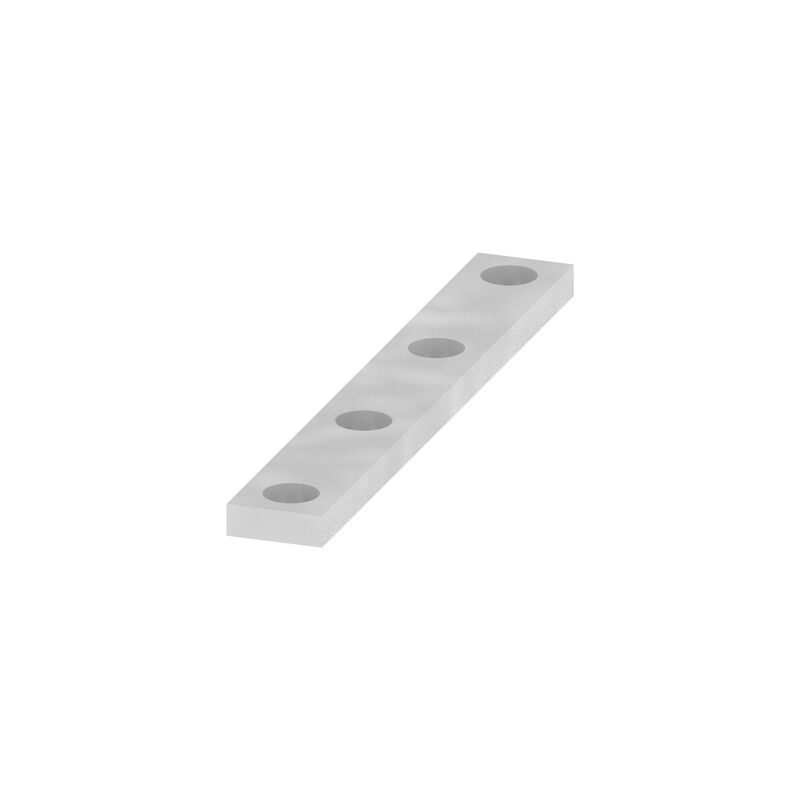

| Version | Cross-connector (terminal), when screwed in, grey, 47 A, Number of poles: 4, Pitch in mm (P): 13.00, Insulated: No, Width: 44.7 mm |
| Order No. | 0191600000 |
| Type | QL 4 SAKS1 |
| GTIN (EAN) | 4008190105518 |
| Qty. | 20 Styk |
| Depth | 2 mm |
| Depth (inches) | 0,079 inch |
| Height | 6 mm |
| Height (inches) | 0,236 inch |
| Width | 44,7 mm |
| Width (inches) | 1,76 inch |
| Net weight | 3,79 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Cu Zn |
| Colour | grey |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 4 |
| Rated current, 2-pole | 47 A |
| Rated current, multi-pole | 36 A |
| Type | Cross-connector |
| Pitch in mm (P) | 13 mm |
| Installation advice | Direct mounting |
| Number of poles | 4 |
| Rated current | 47 A |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
