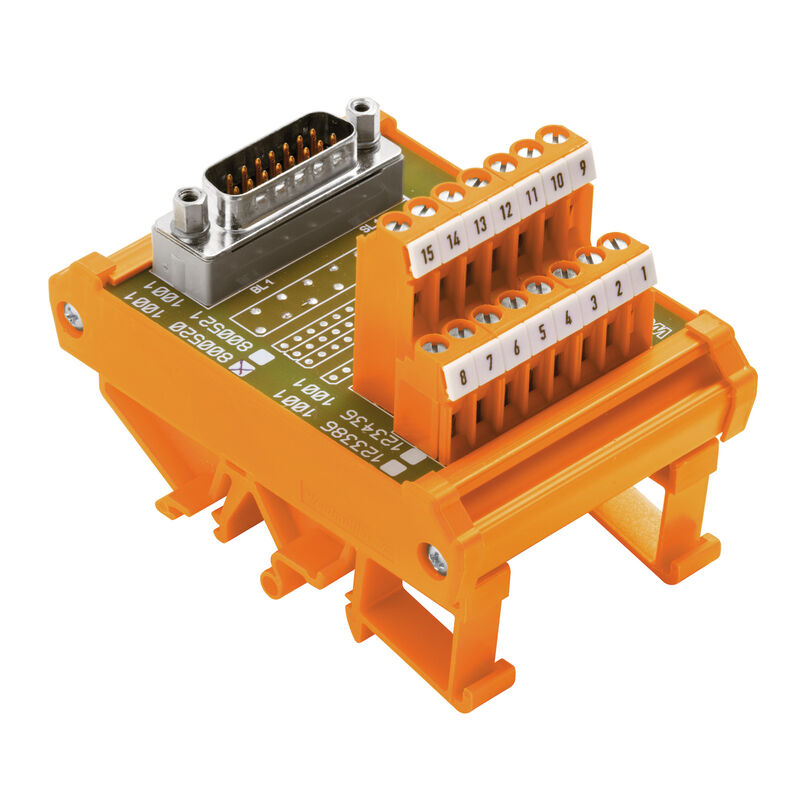

Интерфейс, RSSD, Вилка SUB-D, в соответствии с IEC 60807-2 / DIN 41652, 15-полюсная вилка, Винтовое соединение

Tuotteen tunnus 8005201001
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 5 Samankaltaiset tuotteet 10
Tanúsítványok Ogólne dane zamówieniowe Dimensioni e pesi Temperatures 환경 제품 규정 준수 Rated data UL Connection Data Specifiche tecniche Aislamiento aplicado (EN50178) Connection field Standard features Classifications

Tanúsítványok

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E141197

Ogólne dane zamówieniowe

Version
Интерфейс, RSSD, Вилка SUB-D, в соответствии с IEC 60807-2 / DIN 41652, 15-полюсная вилка, Винтовое соединение
Order No.
8005201001
Type
RS SD15S UNC 4.40 LP2N
GTIN (EAN)
4032248047215
Qty.
1 items

Dimensioni e pesi

Depth
76 mm
Глубина (дюймов)
2,992 inch
Height
87 mm
Height (inches)
3,425 inch
Width
60 mm
Width (inches)
2,362 inch
Net weight
122 g

Temperatures

Storage temperature
-40...70 °C
Operating temperature
0...55 °C

환경 제품 규정 준수

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6aI, 6c
REACH SVHC
Lead 7439-92-1
SCIP
7b5ffb72-271d-4c73-8b09-bd0aaee3697a

Rated data UL

Drifttemperatur UL, min.
0 °C
Operating temperature UL, max.
50 °C
Rated current Imax
1,5 A
Rated voltage UN
100 V

Connection Data

Connection (field side)
LL2N 5.08 mm
Connection on control side
D-sub connectors, acc. to IEC 60807 / DIN 41652
Earthing
No
Number of poles (control side)
15-pole plug

Specifiche tecniche

Rated voltage
100 V
Rated current per connection
1,5 A

Aislamiento aplicado (EN50178)

According to
DIN EN 50178
Rated insulation voltage
100 V
Surge voltage category
II
Pollution severity level
2
Pulse voltage test (1,2/50μs)
0,8 kV

Connection field

Clamping range, max.
6 mm²
Clamping range, min.
0,5 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2,5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Stripping length
6 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Type of connection
Винтовое соединение

Standard features

Design
Plug

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
