Egenskaber

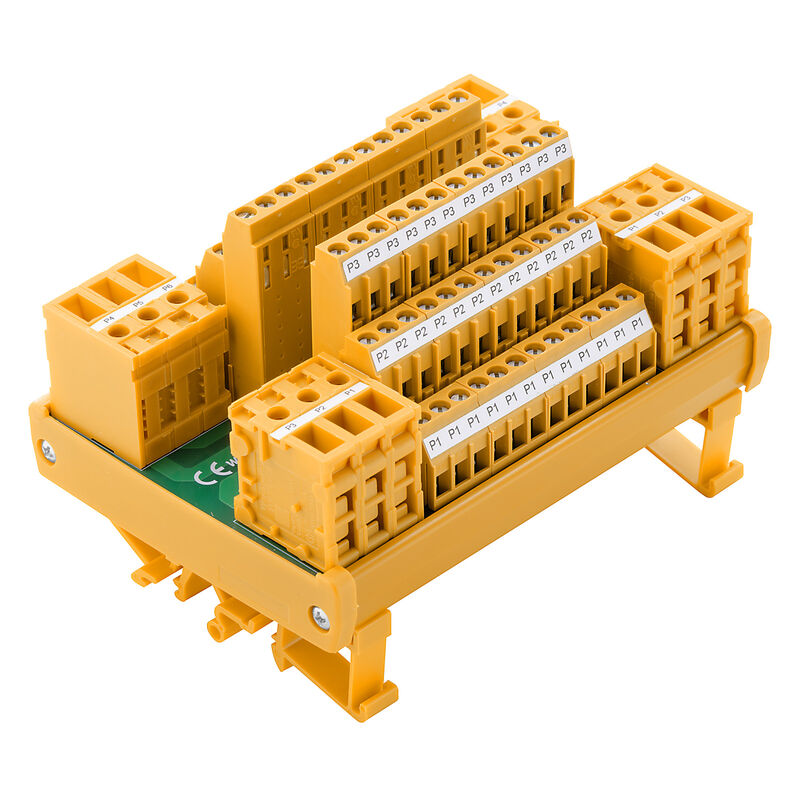

| Version | Interface, RS VERT, 6 P, Screw connection |
| Order No. | 1128120000 |
| Type | RS VERT 6P 12X6 S |
| GTIN (EAN) | 4032248909582 |
| Qty. | 1 Styk |
| Depth | 83 mm |
| Depth (inches) | 3,268 inch |
| Height | 87 mm |
| Height (inches) | 3,425 inch |
| Width | 122 mm |
| Width (inches) | 4,803 inch |
| Net weight | 368,461 g |
| Storage temperature | -40...60 °C |
| Operating temperature | -25...50 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Maximum current per distributor connection acc. to UL | 10 A |
| Maximum current per potential connection acc. to UL | 10 A |
| Operating temperature UL, max. | 25 °C |
| Operating temperature UL, min. | 0 °C |
| Total operating current acc. to UL | 60 A |
| Rated voltage UN | 300 V |
| Distribution PCB connectors | LL3R 5.08 mm |
| Number of potentials | 6 |
| Supply plug-in connectors | TOP 1.5GS2/180 |
| Rated voltage | 250 V AC |
| Operating voltage | 250 V AC |
| Maximum current per potential connection | 20 A |
| Maximum current per distributor connection | 15 A |
| Total operating current | 120 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | <300 V AC |
| Surge voltage category | III |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 4 kV |
| Insulation test voltage AC | 1,2 kV |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0,13 mm² |
| Flexible with sleeve, max. | 2,5 mm² |
| Flexible with sleeve, min. | 0,5 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible, min. H05(07) V-K | 0,5 mm² |
| Max. wire cross-section, AWG | AWG 12 |
| Min. wire cross-section, AWG | AWG 26 |
| Sleeve with plastic collar, max. | 2,5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Solid, min. H05(07) V-U | 0,5 mm² |
| Stripping length | 6 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,5 Nm |
| Type of connection | Screw connection |
| Type of connection | Screw connection |
| Clamping range, min. | 0,13 mm² |
| Clamping range, max. | 6 mm² |
| Solid, min. H05(07) V-U | 0,5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, min. H05(07) V-K | 0,5 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible with sleeve, max. | 4 mm² |
| Flexible with sleeve, min. | 0,5 mm² |
| Ferrule with plastic collar, max. | 4 mm² |
| Wire cross-section, min. AWG | AWG 26 |
| Wire cross-section, max. AWG | AWG 10 |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,6 Nm |
| Stripping length | 13 mm |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153584) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_307795) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1128120000) |
| Product Change Notification |
[20211027 Technical change to RS VERT interfaces](https://mdcop.weidmueller.com/mediadelivery/asset/900_245503)
[Technical change for RS VERT Modules](https://mdcop.weidmueller.com/mediadelivery/asset/900_307990) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E141197 |
