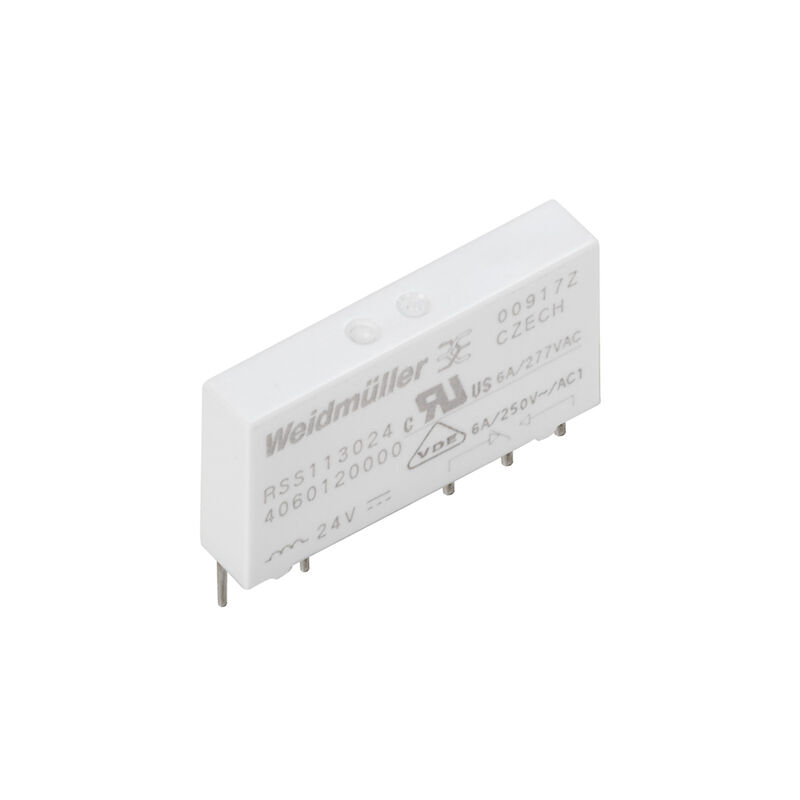

RSS110005
TERMSERIES, Relay, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 5 V DC, Continuous current: 6 A, Plug-in connection, Test button available: No
Egenskaber

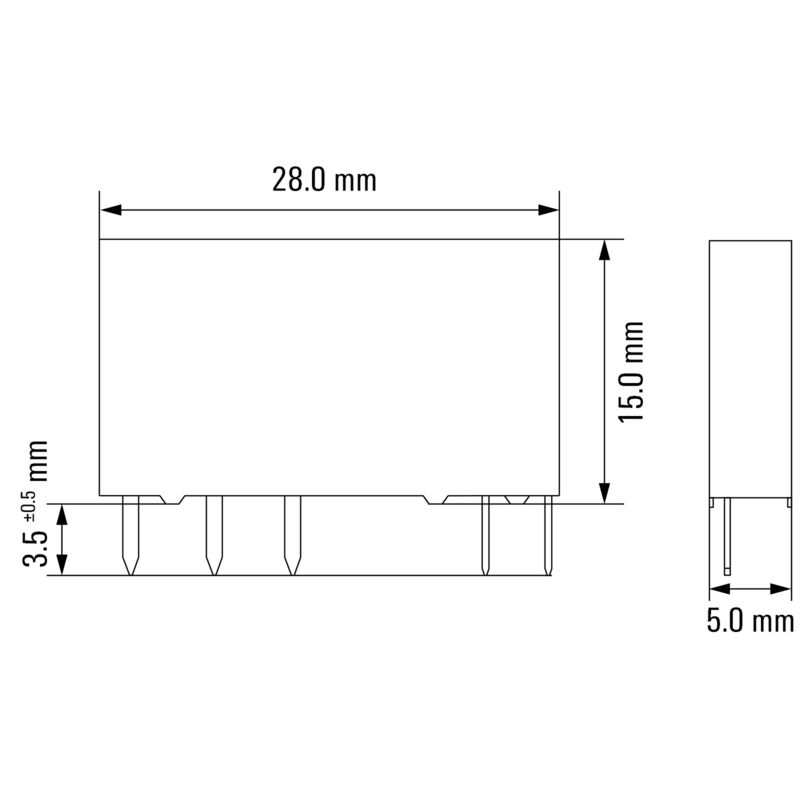

| Version | TERMSERIES, Relay, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 5 V DC, Continuous current: 6 A, Plug-in connection, Test button available: No |
| Order No. | 1984100000 |
| Type | RSS110005 |
| GTIN (EAN) | 4050118377903 |
| Qty. | 20 Styk |
| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 28 mm |
| Height (inches) | 1,102 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 5 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E223474 |
| Rated control voltage | 5 V DC |
| Rated current DC | 33.3 mA |
| Power rating | 170 mW |
| Coil resistance | 147 Ω ± 10 % |
| Status indicator | No |
| Rated switching voltage | 250 V AC |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 250 V |
| Min. switching power | 100 mA @ 12 V |
| Inrush current | 30 A / 20 ms |
| AC switching capacity (resistive), max. | 1500 VA |
| DC switching capacity (resistive), max. | 144 W @ 24 V |
| Switch-on delay | <8 ms |
| Switch-off delay | <4 ms |
| Contact type | 1 CO contact (AgSnO) |
| Test button available | No |
| Mechanical switch position indicator | No |
| Colour | white |
| Clearance and creepage distances for control side - load side | ≥ 6 mm |
| Dielectric strength for control side - load side | 4 kVeff / 1 Min. |
| Dielectric strength of open contact | 1 kVeff / 1 min |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP67 |
| Certificate No. (VDE) | 40029391 |
| Certificate No. (cURus) | E223474 |
| Wire connection method | Plug-in connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65542) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1984100000) |
| User Documentation | [FL_TERMSERIES_RSS1COAgSnO_LOAD_GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_306022) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223474 |
