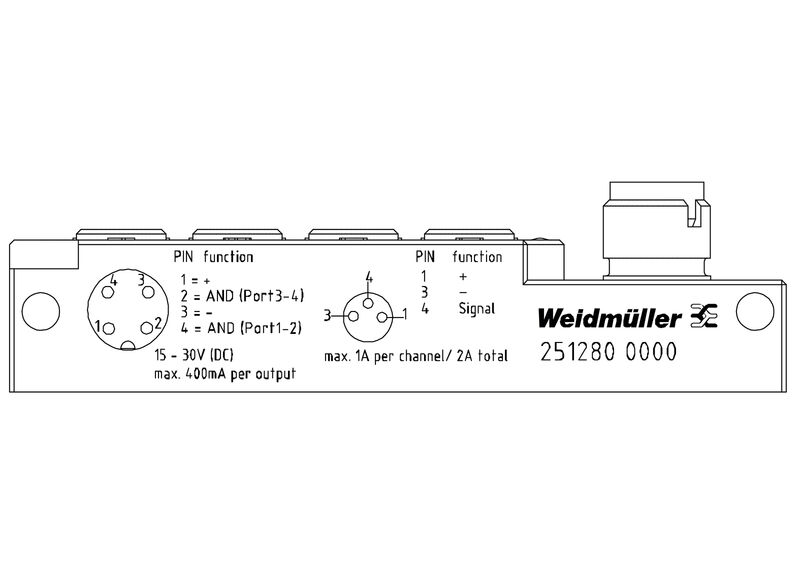

Egenskaber
| Version | with M12 outlet, M8, 30 V, , LED: Yes, LED initiator: Yes, Wiring type: AND |
| Order No. | 2512800000 |
| Type | SAI-04L-VP12-3A-M08L-AND |
| GTIN (EAN) | 4050118527698 |
| Qty. | 1 Styk |
| Net weight | 66 g |
| Operating temperature | -20 - 90°C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 22cbd99b-5f46-4c36-9938-bd61e241a9ab |
| Distributor outlet | with M12 outlet |
| Tightening torque |
M8: 0.5 - 0.6 Nm
M12: 0.8 - 1.2 Nm |
| Rated voltage, min. | 15 V |
| Rated voltage, max. | 30 V |
| Rated voltage | 24 V |
| Rated current | 500 mA |
| Max. current-carrying capacity per slot | 500 mA |
| Total current | 2 A |
| Electrical isolation available | No |

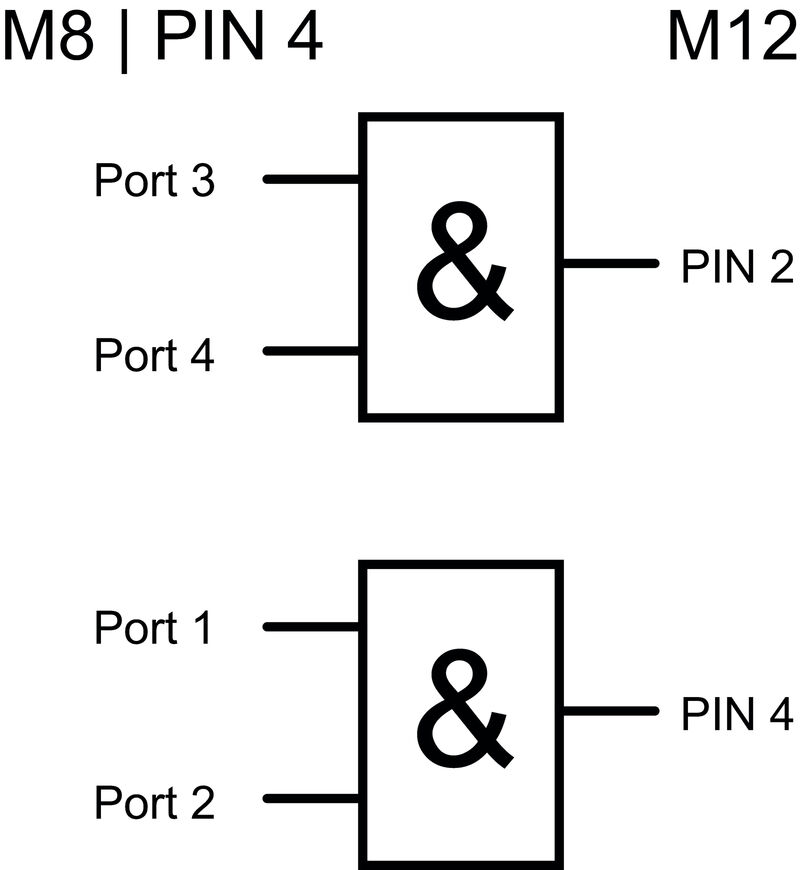

| Logic function | and |
| Protection degree | IP67 |
| Number of poles | 3 |
| Number of contact sockets | 4 |
| Connection thread | M8 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| LED | Yes |
| LED initiator | Yes |
| LED colour for indicating operation | green |
| LED colour for I/O function | red |
| Housing main material | PBT |
| Housing colour | black (similar to RAL 9005) |
| Screw socket | Nickel-plated CuZn |
| Contact material | Nickel-plated CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Number of poles | 3 |
| Suitable for cable carriers | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304782) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2512800000) |
| Product Change Notification |
[20211208 Technical change to SAI M8 Line Distribution Boxes](https://mdcop.weidmueller.com/mediadelivery/asset/900_248232)
[20211208 Technische Änderung zu SAI M8 Line Verteiler](https://mdcop.weidmueller.com/mediadelivery/asset/900_248233) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 9.0 | EC003558 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-11 |
| ECLASS 11.0 | 27-44-01-11 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| Approvals |   |
| ROHS | Conform |
