SAI-8-M 4P M12 UT

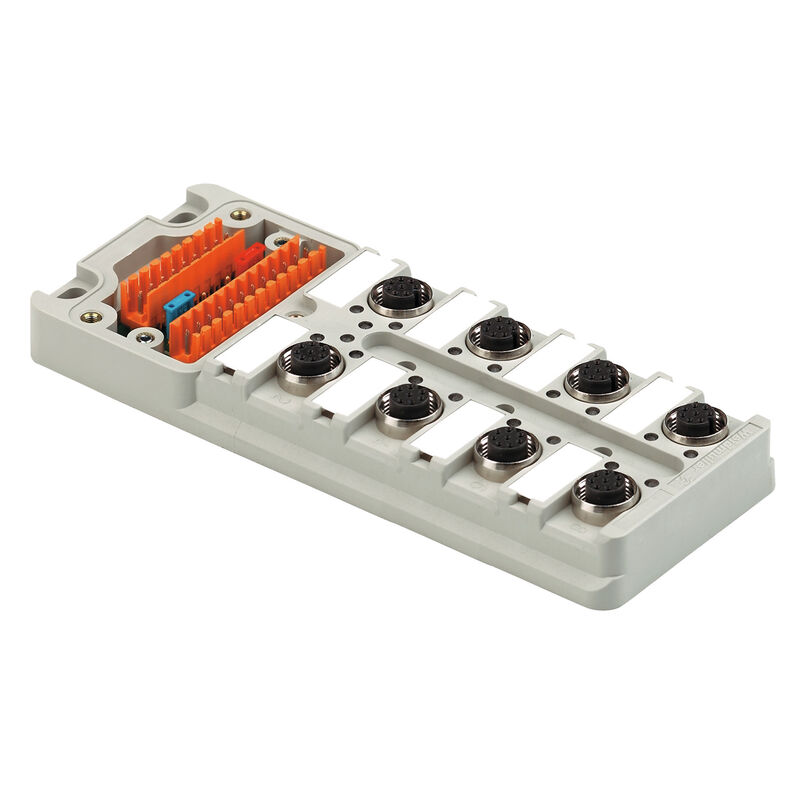

Similar to illustration
SAI-8-M 4P M12 UT

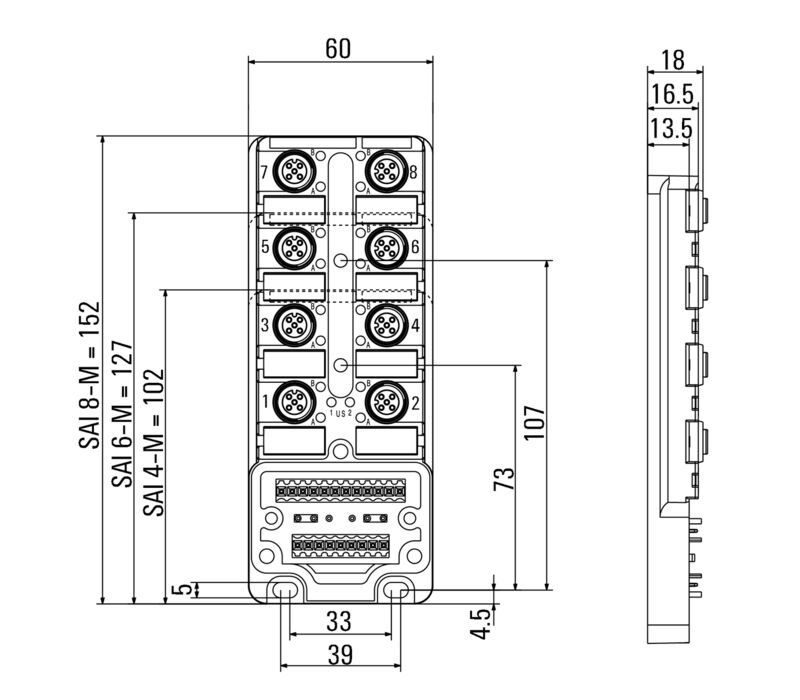

Dimensioned drawing
SAI-8-M 4P M12 UT
Wiring diagram

SAI-8-M 4P M12 UT

Hood distributor lower part, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP

Ürün No. 1705941000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 3 İlgili ürünler 30
Approvals General ordering data Dimensions and weights Temperaturen Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Klasifikace

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL weboldal](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E141197
Certificate no. (cULus)
E141197

General ordering data

Version
Hood distributor lower part, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP
Order No.
1705941000
Type
SAI-8-M 4P M12 UT
GTIN (EAN)
4032248148219
Qty.
2 adet

Dimensions and weights

Depth
152 mm
Depth (inches)
5,984 inch
Net weight
166,32 g

Temperaturen

Operating temperature
-20 - 90°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Conductor O.D., min.
0 mm
Conductor O.D., max.
0 mm
Clamping range, min.
0,08 mm²
Clamping range, max.
1,5 mm²
ładownia
Standardně
Fördelarutgång
Hood distributor lower part

Electrical data

Tensión nominal, mín.
10 V
Rated voltage, max.
30 V
Tension d'essai
1 kV
Max. current-carrying capacity per slot
4 A
Summenstrom
10 A
Current per signal
2 A
Electrical isolation available
Yes
Insulation resistance
109 Ω

General technical data

Grado di protezione
IP68
Plug-in állomás kódolás
A-coded
Number of poles
4
Number of contact sockets
8
Csatlakozási menet
M12
Grado di lordura
3
Fire behaviour
V-0
Plugging cycles
≤ 50
LED
Yes
LED initiator
Yes
Цвет светодиода для индикации работы
green
LED colour for I/O function
yellow

Material data

Material capotas
Pocan
Material of distributor
Plastic
Ház színe
Grau, RAL 7032
Hood sealing material
Viton
Screw socket
CuZn, niklowany
Contact material
CuZn
Contact surface
Gold-plated
Nosný materiál kontaktu
PBT (UL 94 V0)

Technical data cable

Diametro esterno del conduttore, max.
0 mm
Numero di poli
4
컨덕터 O.D., 최소
0 mm
Idoneità all'installazione con catene portacavi
Nem

Klasifikace

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
