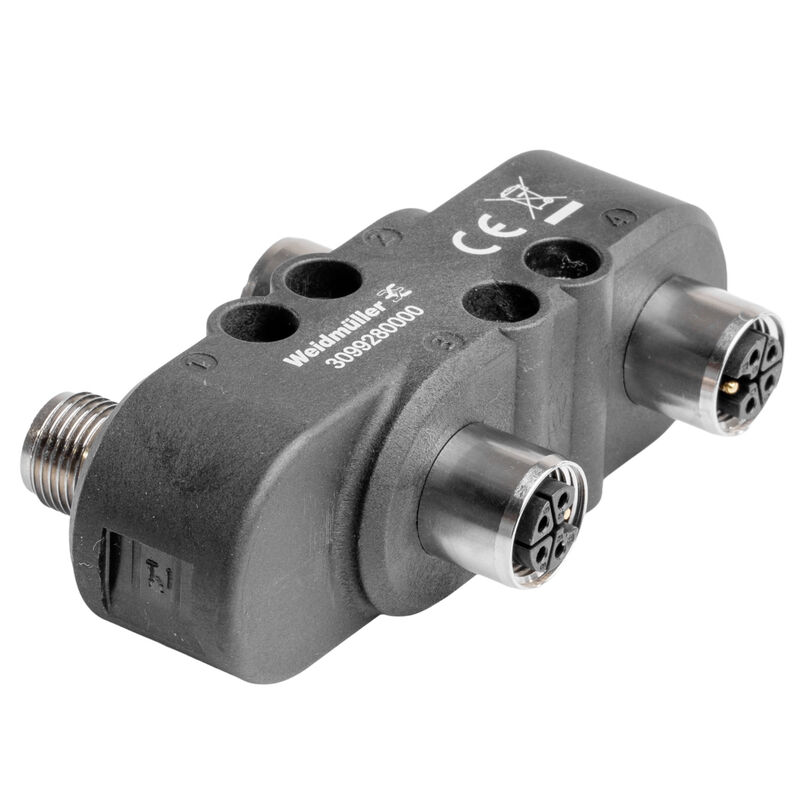

SAI-H4-M12-L-SI
SAI-H4-M12-L-SI
Dimensioned drawing
SAI-H4-M12-L-SI
Pole scheme
Plug
SAI-H4-M12-L-SI
Pole scheme
Socket
SAI-H4-M12-L-SI

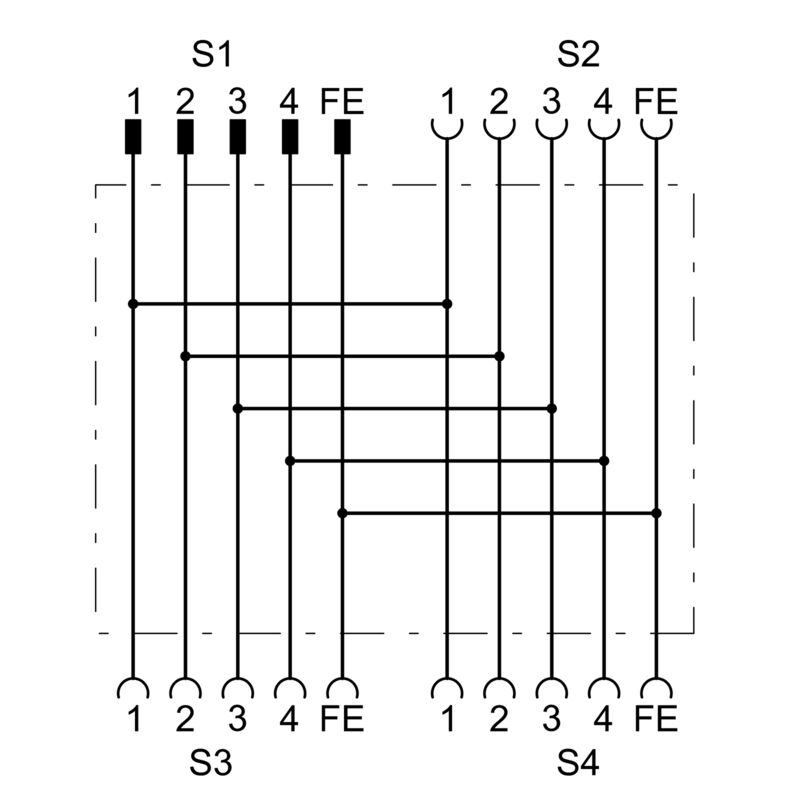

Wiring diagram
SAI-H4-M12-L-SI
Derating curve

SAI-H4-M12-L-SI

Y-csatlakozó

Tuotteen tunnus 3099280000
Lataa tietosivu Pobieranie produktów
Samankaltaiset tuotteet 12
Tanúsítványok Általános rendelési adatok 치수 및 중량 Termékek környezetvédelmi megfelelősége Connection data Technical data customisable plug-in connectors Standards General data Besorolások

Tanúsítványok

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme

Általános rendelési adatok

Version
Y-csatlakozó
Order No.
3099280000
Type
SAI-H4-M12-L-SI
GTIN(EAN)
4099987133937
수량
1 items

치수 및 중량

순중량
50 g

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Megfelel, kivétel nélkül
REACH SVHC
No SVHC superiori a 0,1 wt%

Connection data

Group outlet - plug-in connector
M12 pin
Single outlet 1 - plug-in connector
M12 socket
Single outlet 2 - plug-in connector
M12 konektor samice
Single outlet 3 - plug-in connector
M12 - Buchse

Technical data customisable plug-in connectors

Cable gland
M 12
Coding
L-coded
Contact material
CuZn
Contact surface
Gold-plated
Housing main material
TPU
Insulation resistance
≥ 100 MΩ
Nominal current
16 A
Nominal voltage
63 V
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
Shield connection
Yes
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Sárgaréz, nikkelezett

Standards

Connector standard
IEC 61076-2-111

General data

Cable gland
M 12
Coding
L-coded
Conductor O.D.
-
Connection 1
M12/M12
Connection 2
M12
Contact material
CuZn
Contact material, pin
CuZn
Contact material, socket
CuZn
Contact surface
Gold-plated
Housing main material
TPU
Insulation resistance
≥ 100 MΩ
Nominal current
16 A
Nominal voltage
63 V
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
Shield connection
Yes
Temperature range of housing
-40 … +85 ° C

Besorolások

ETIM 8.0
EC002925
ETIM 9.0
EC002925
ETIM 10.0
EC002925
ECLASS 14.0
27-44-01-06
ECLASS 15.0
27-44-01-06
