SAIB-ZW-MT
SAIB-ZW-MT
SAIB-ZW-MT
Pole scheme
M12 = A-coded

SAIB-ZW-MT

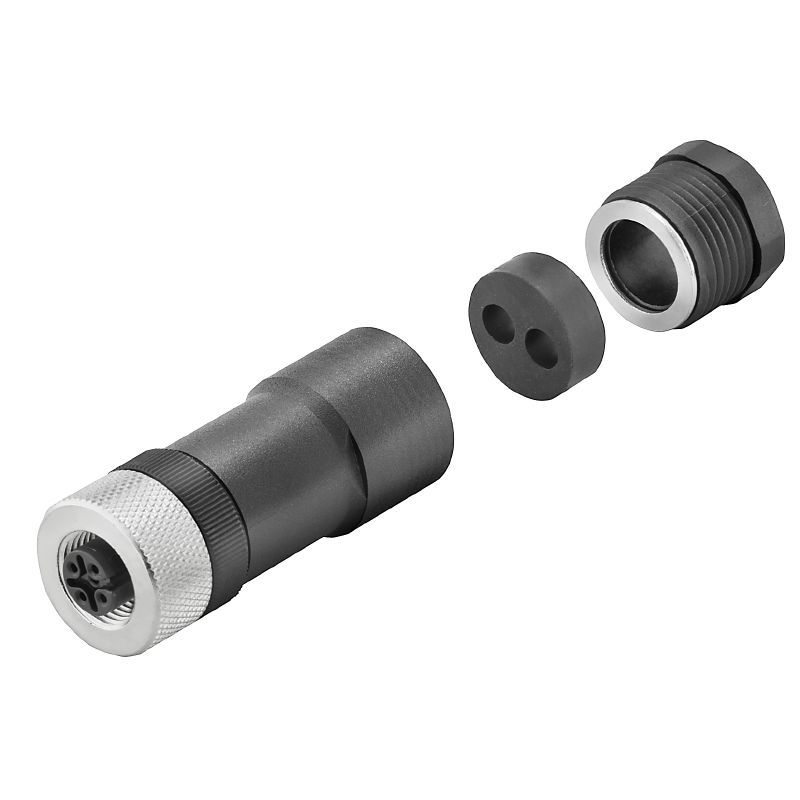

Conector acoplable en campo, M12

Produkt ID 1878490000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 3
Approvals Datos generales para pedido Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors Obecné informace Besorolások

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Zgodny
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E307231

Datos generales para pedido

Version
Conector acoplable en campo, M12
Order No.
1878490000
Type
SAIB-ZW-MT
GTIN (EAN)
4032248471225
Qty.
1 adet

Dimensions and weights

Net weight
33,25 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical data customisable plug-in connectors

Coding
A-coded
Conductor cross-section, max.
0,75 mm²
Conductor cross-section, min.
0,14 mm²
Contact surface
CuSnZn
Gender of contact
Female
Housing main material
PA
Nominal current
4 A
Nominal voltage
36 V
Number of poles
5
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Type of connection
Šroubové připojení

Obecné informace

Polzahl
5
Connection 1
M12
Connection 2
Screw
Housing main material
PA
Connection thread
M12
Contact surface
CuSnZn
Protection degree
IP67

Besorolások

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
